Removal and Installation
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.
CAUTION:
- Do not leave fog lamp assembly without bulb for a long period of time. Dust, moisture, smoke, etc. entering the fog lamp body may affect the performance. Remove the bulb from the headlamp assembly just before replacement bulb is installed.
- Grasp only the plastic base when handling the bulb. Never touch the glass envelope. Touching the glass could significantly affect the bulb life and/or fog lamp performance.
- Position the fender protector aside.

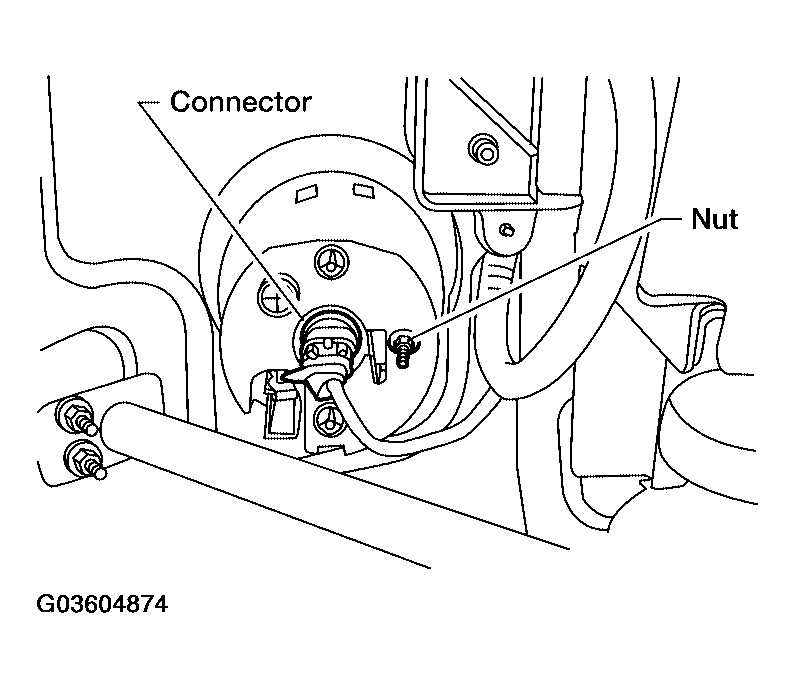

- Disconnect electrical connector.
- Remove nut and pull fog lamp out of front fascia.
Installation is in the reverse order of removal.
