Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "CLUSTER LID C ".
  2. Disconnect the hazard switch connector.
  3. Remove the screws and remove the hazard switch.

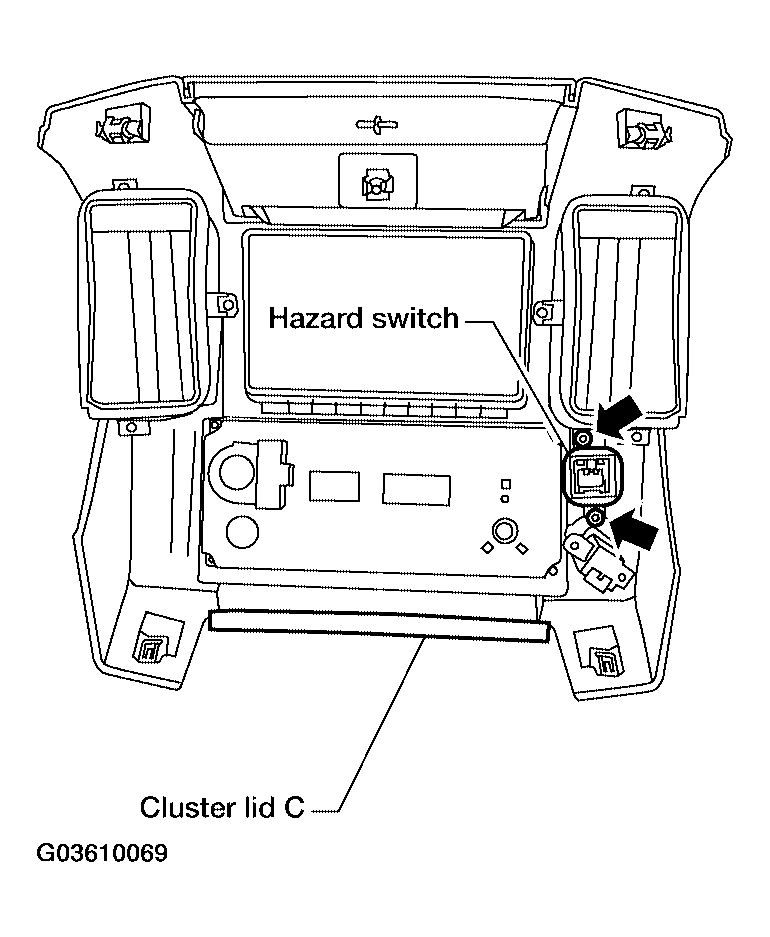

    Fig 1: Removing Hazard Switch
    G03610069Courtesy of NISSAN MOTOR CO., U.S.A.
