A/T Indicator Is Malfunction

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to "OPERATION PROCEDURE ".

Are all segments displayed?
- YES : GO TO 2.
- NO : Replace combination meter.
Fig 1: Checking Self-Diagnosis Of Combination Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
Select "METER A/C AMP" on CONSULT-II, and then perform self-diagnosis of unified meter and A/C amp.

Self-diagnostic results content
- No malfunction detected : GO TO 3.
- Malfunction detected : Go to "SYMPTOM CHART 2 " in combination meter.
CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Connect CONSULT-II and start engine.
2. Use "DATA MONITOR" of "METER A/C AMP" on CONSULT-II.
  Confirm each indication on the monitor when operating the shift lever.

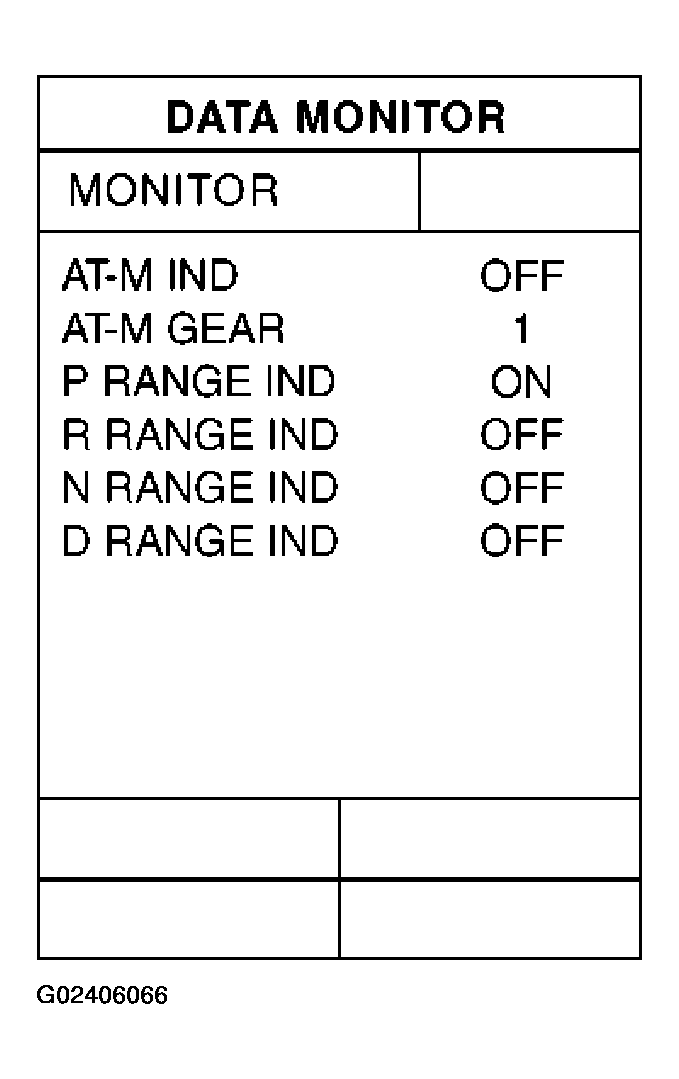

  Fig 2: Scan Tool Display "Data Monitor"
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 3: "METER A/C AMP" On CONSULT-II Of Unified Meter & A/C AMP Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Replace combination meter.
- NG : GO TO 4.
CHECK TCM SELF-DIAGNOSIS
Perform TCM self-diagnosis. Refer to "CONSULT-II FUNCTION (A/T) ".

Self-diagnostic results content
- No malfunction detected : Replace unified meter and A/C amp. Refer to "REMOVAL AND INSTALLATION OF UNIFIED METER AND A/C AMP. ".
- Malfunction detected : Check applicable parts, and repair or replace corresponding parts.
