Wiring Diagram - COMPAS -

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

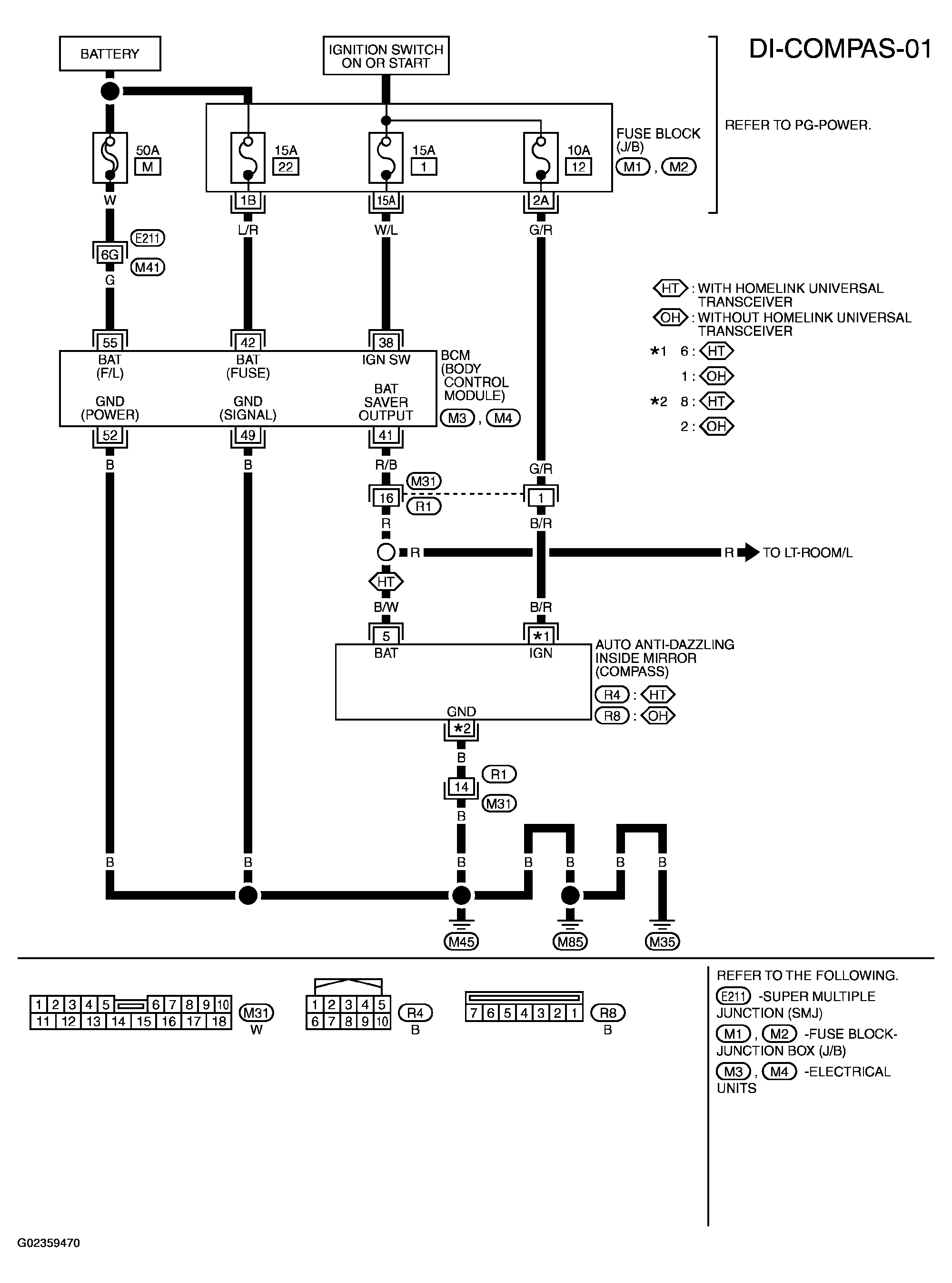

Fig 1: Wiring Diagram - DI-COMPAS-01
G02359470Courtesy of NISSAN MOTOR CO., U.S.A.
