Aiming Adjustment

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming adjustment, make sure of the following.

Keep all tires inflated to correct pressure.
Place vehicle on level ground.
See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.

Adjust aiming in the vertical direction by turning adjusting screw.

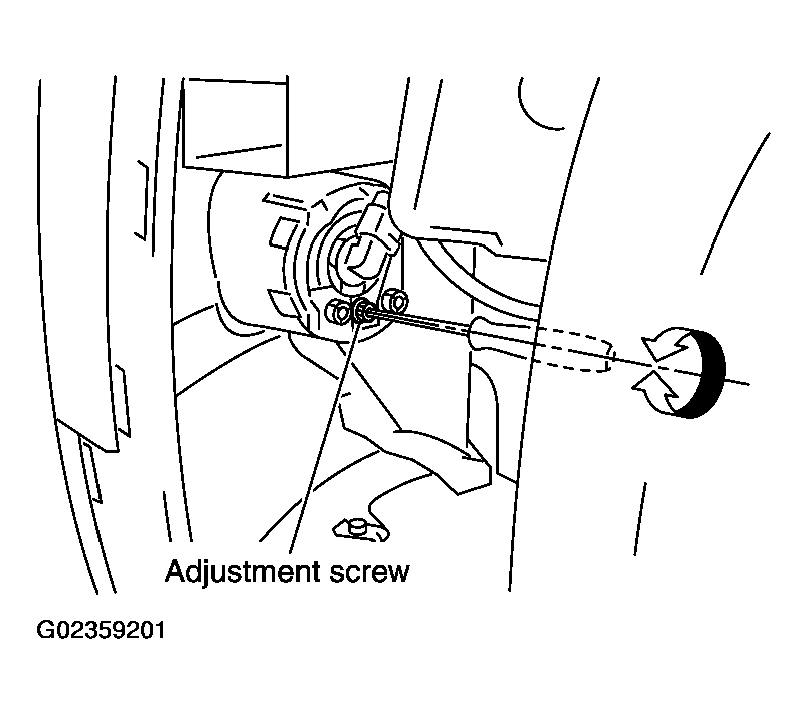

Fig 1: Turning Adjusting Screw Of Aiming

Courtesy of NISSAN MOTOR CO., U.S.A.

Set the distance between the screen and the center of fog lamp lens as shown at left.
Turn front fog lamps ON.

Fig 2: Setting Distance Between Screen And Center Of Fog Lamp Lens
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is 100 mm (3.94 in) below the height of fog lamp centers as shown at left.
- When performing adjustment, if necessary, cover headlamps and opposite fog lamp.

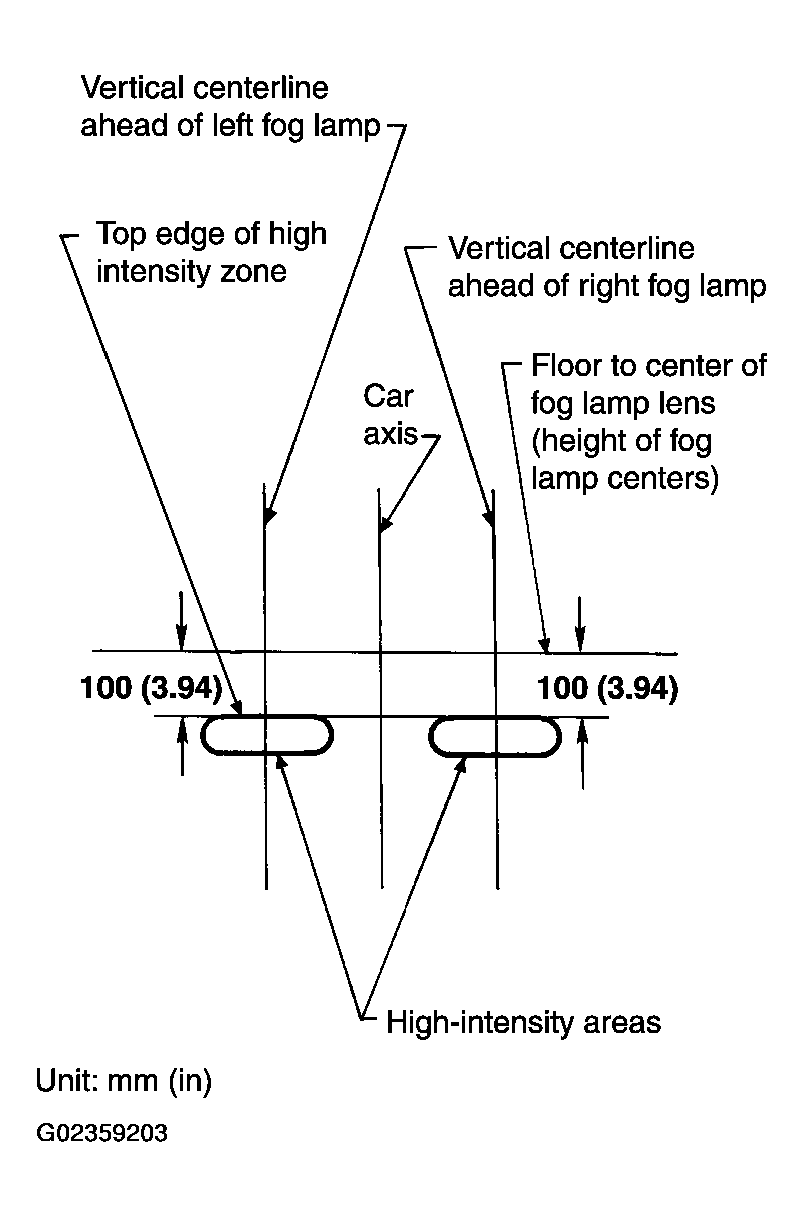

Fig 3: Front Fog Lamps Adjusting Pattern
Courtesy of NISSAN MOTOR CO., U.S.A.
