Removal and Installation for Optical Sensor: Removal

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver or similar tool and remove front defroster grill (LH). Refer to (W) Front Defroster Grille (RH/LH) in REMOVAL .
  2. Disconnect optical sensor connector.
  3. Remove optical sensor.

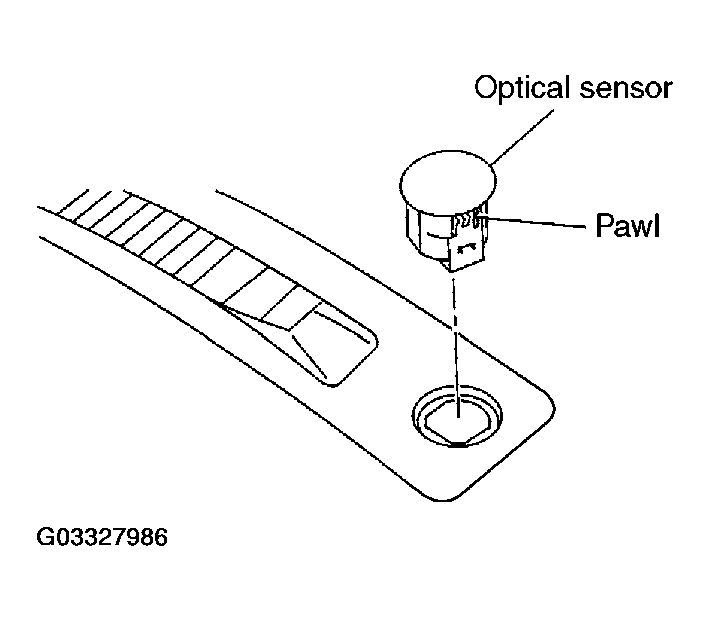

    Fig 1: Removing Optical Sensor
    G03327986Courtesy of NISSAN MOTOR CO., U.S.A.
