Consult-II Operation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF, connect CONSULT-II and CON-SULT-II CONVERTER to data link connector, then turn ignition switch ON.

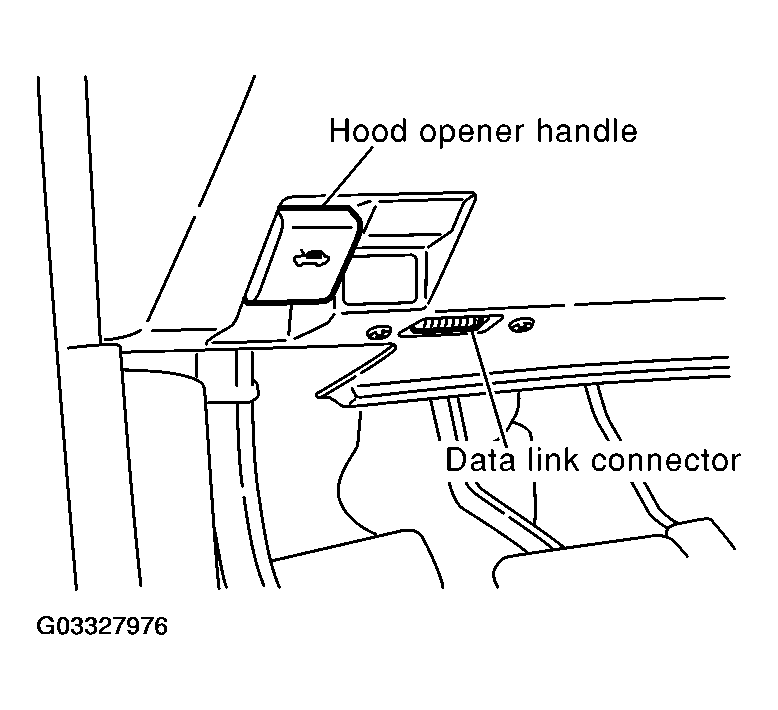

Fig 1: Identifying Hood Opener Handle And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

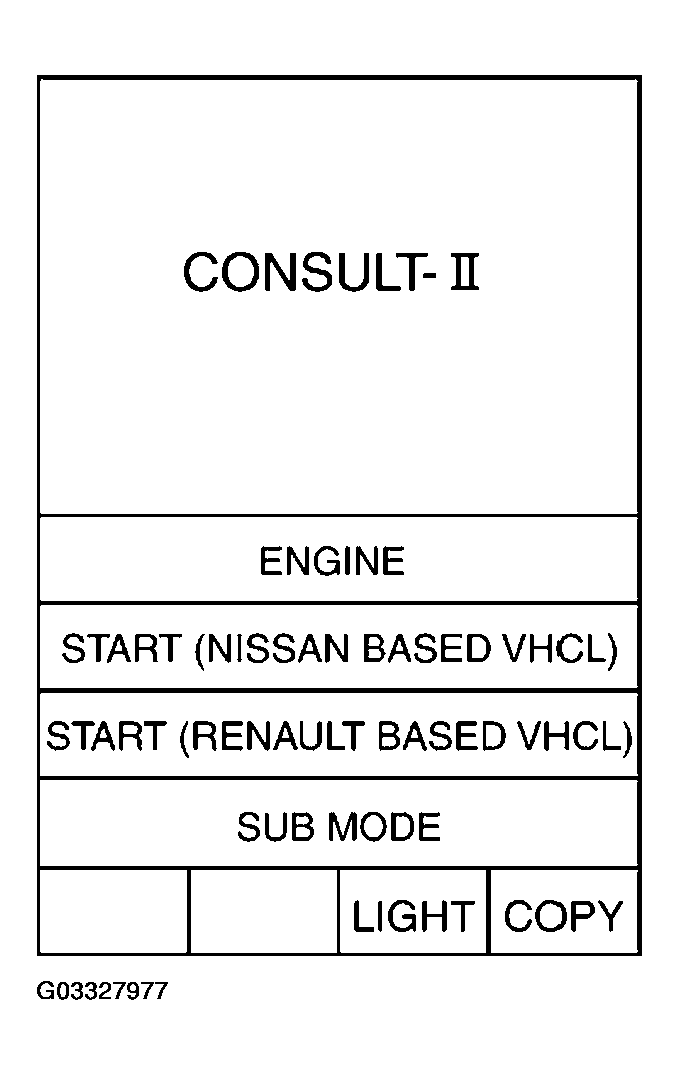

Fig 2: Displaying CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IPDM E/R" on "SELECT SYSTEM" screen.
If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen, then refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

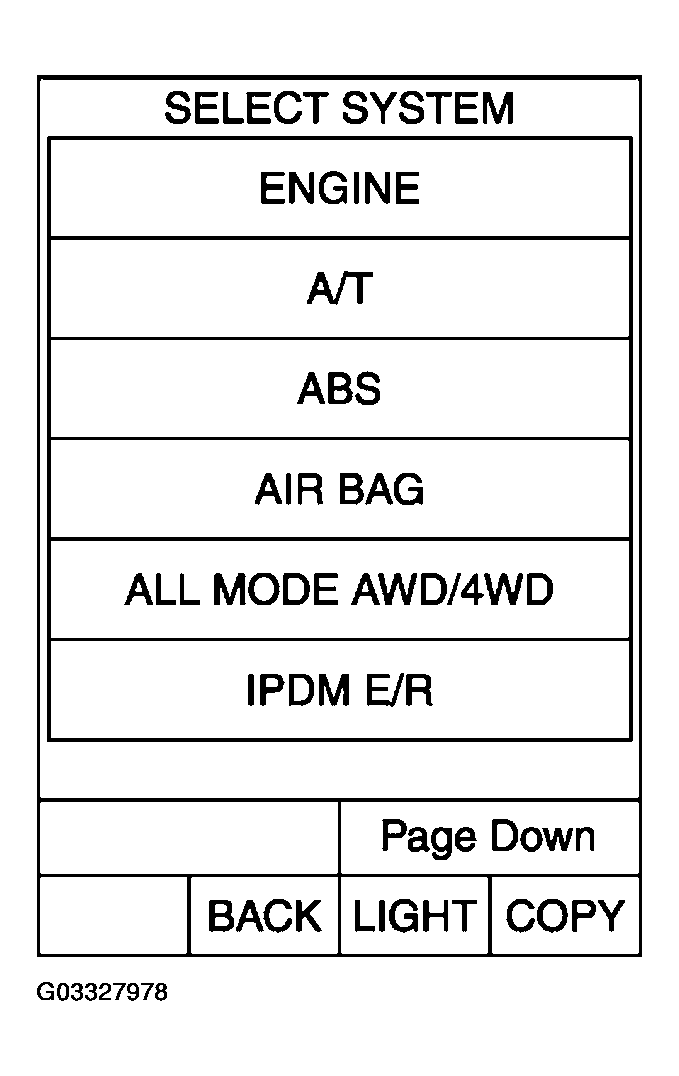

Fig 3: Displaying "SELECT SYSTEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on "SELECT DIAG MODE" screen.

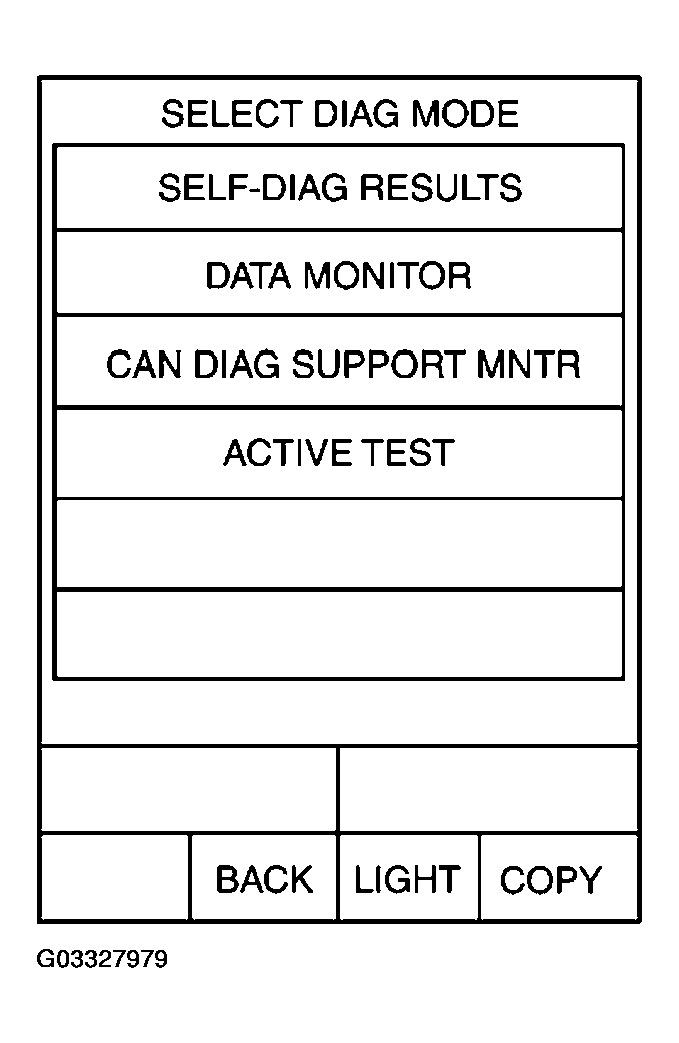

Fig 4: Displaying "SELECT DIAG MODE" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
