Home >> Nissan-Datsun >> 2002 >> Sentra SE-R, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System Qr25DE >> Preparation >> Special Service Tools

Special Service Tools

The actual shape of Kent-Moore tools may differ from those of special service tools illustrated here.

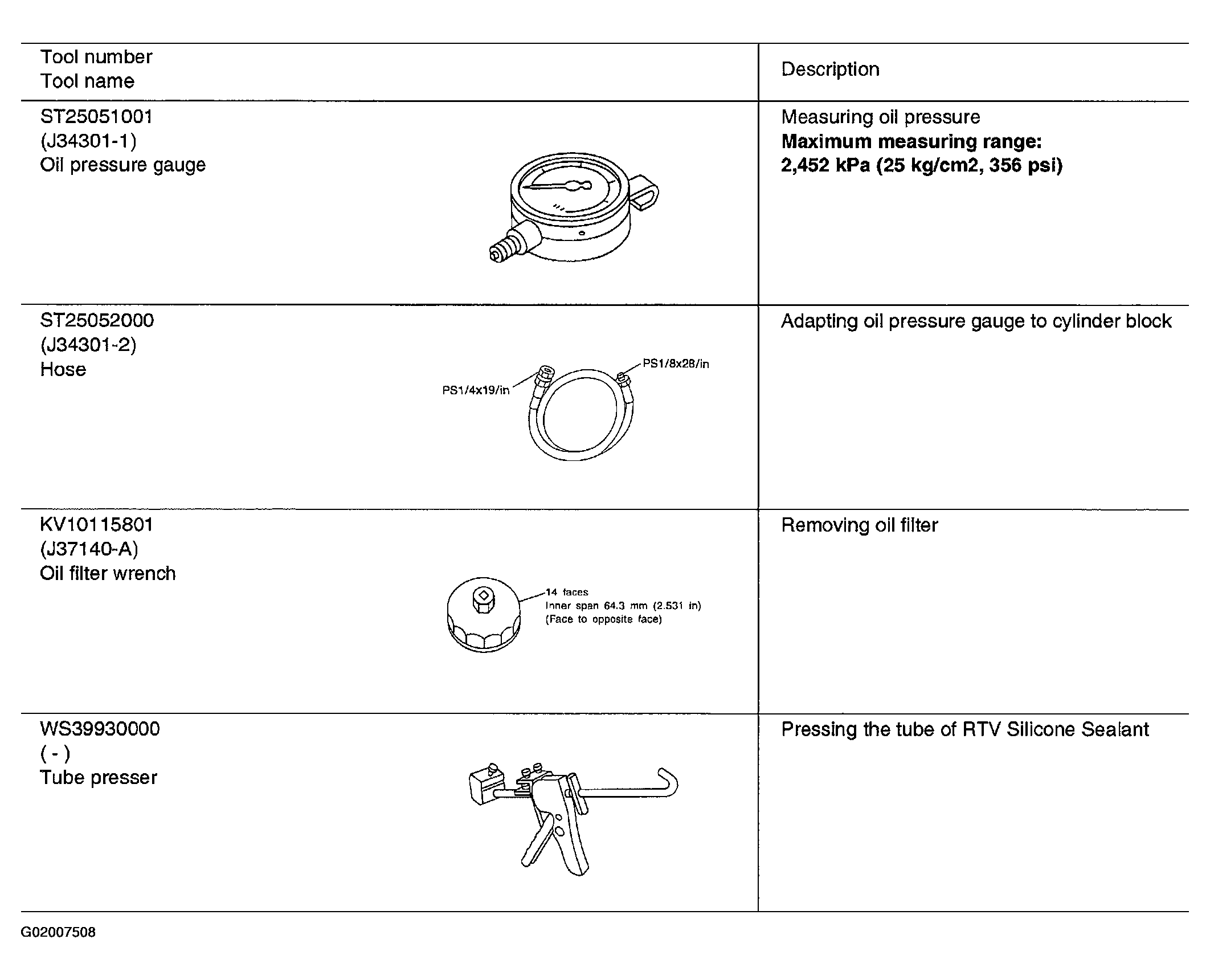

Fig 1: Identifying Special Service Tools
G02007508Courtesy of NISSAN MOTOR CO., U.S.A.
