Wiring Diagram - Charge -

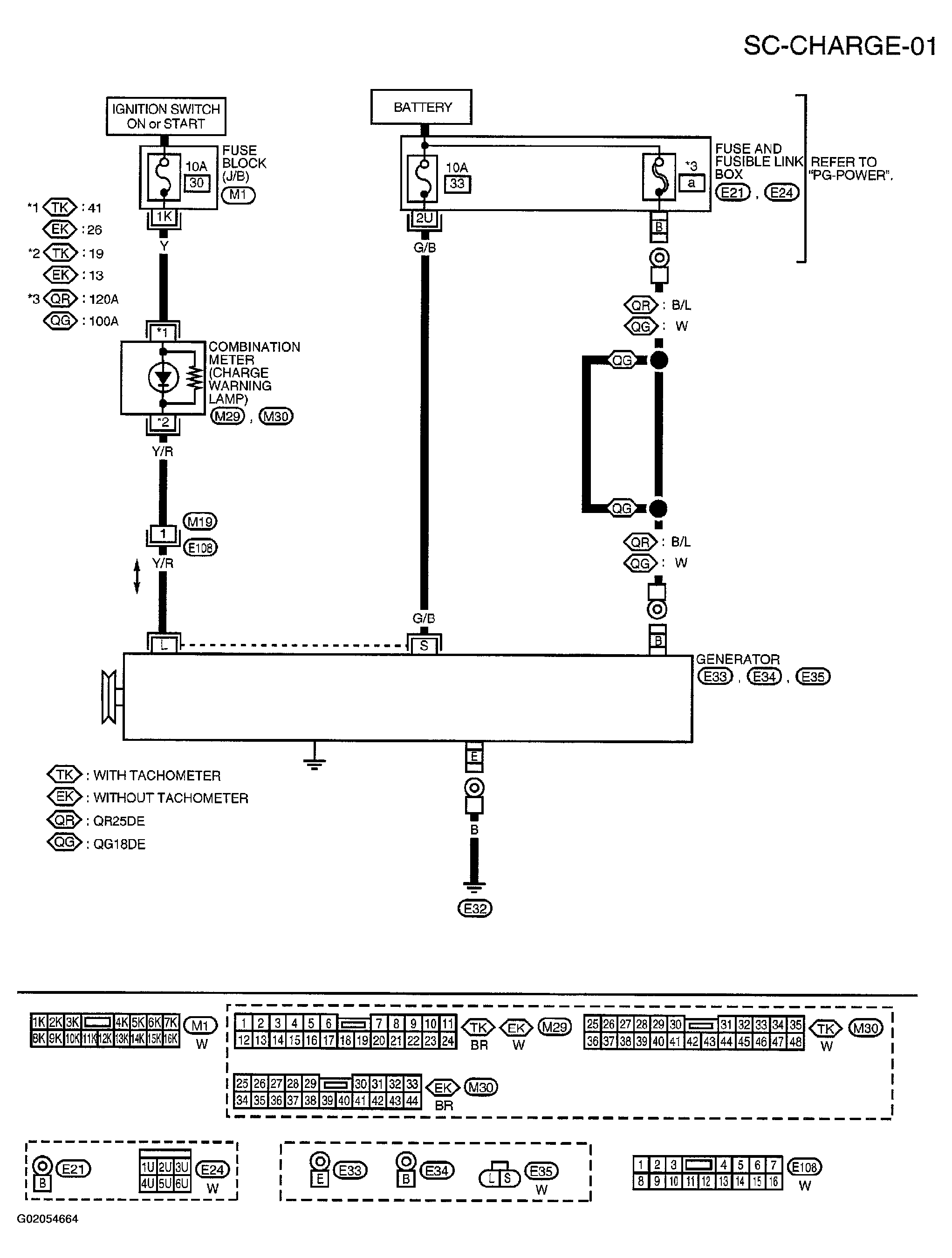

Fig 1: Wiring Diagram - CHARGE -

G02054664

Courtesy of NISSAN MOTOR CO., U.S.A.
