Wheel Hub: Installation

With vehicles equipped with ABS, press-fit sensor rotor into wheel hub bearing using a drift.
Do not reuse sensor rotor. When installing, replace it with a new one.

Fig 1: Pressing Sensor Rotor Into Wheel Hub Bearing Using A Drift
Courtesy of NISSAN MOTOR CO., U.S.A.

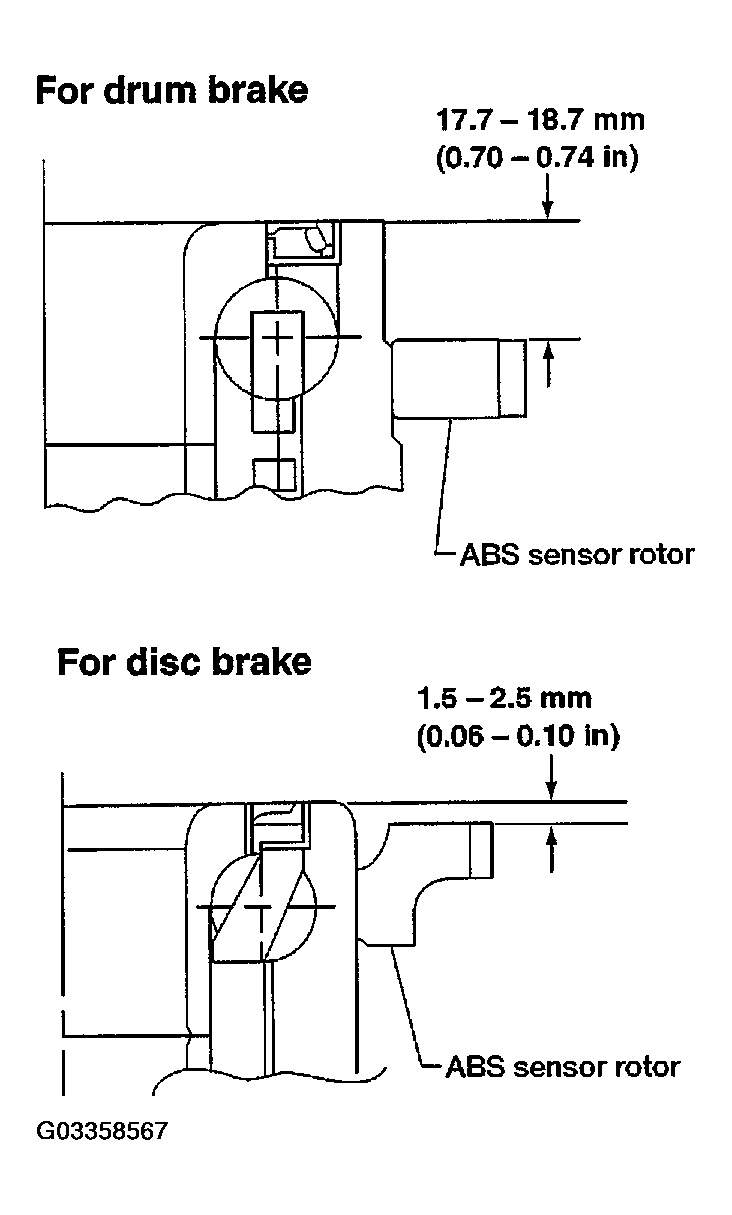

Press-fit sensor rotor as far as the location shown in figure at right.

Fig 2: Identifying Sensor Rotor Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Install wheel hub bearing.
Tighten wheel bearing lock nut. Before tightening, apply oil to threaded portion of rear spindle.
Do not reuse wheel bearing lock nut.
1. : 187 - 255 N.m (19 - 26 kg-m, 138 - 188 ft-lb)
Check that wheel bearings operate smoothly.

Fig 3: Checking Wheel Bearings Operate
Courtesy of NISSAN MOTOR CO., U.S.A.

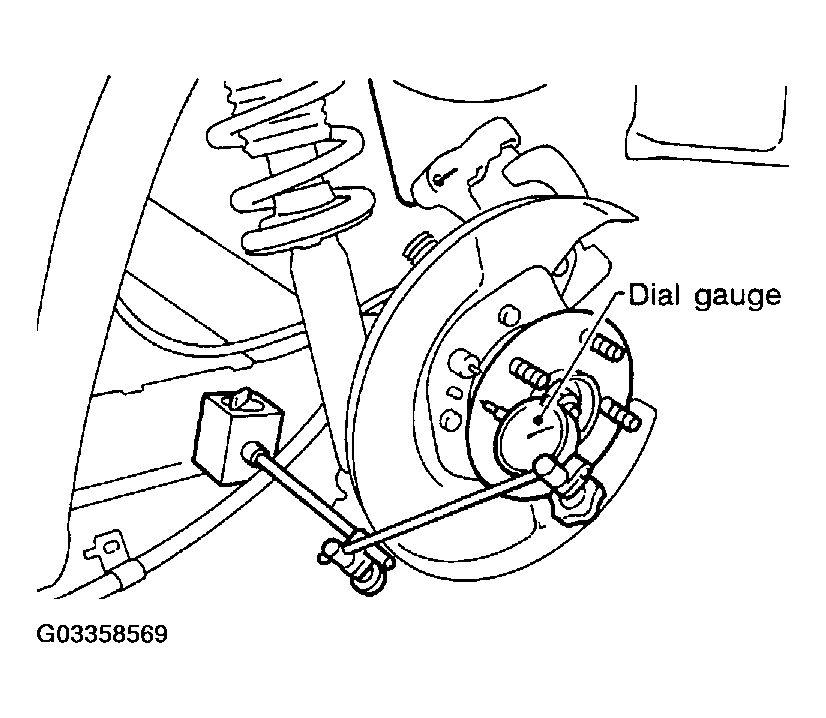

Check wheel hub bearing axial end play.
1. Axial end play: 0.05 mm (0.0020 in) or less
Fig 4: Checking Wheel Hub Bearing Axial End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

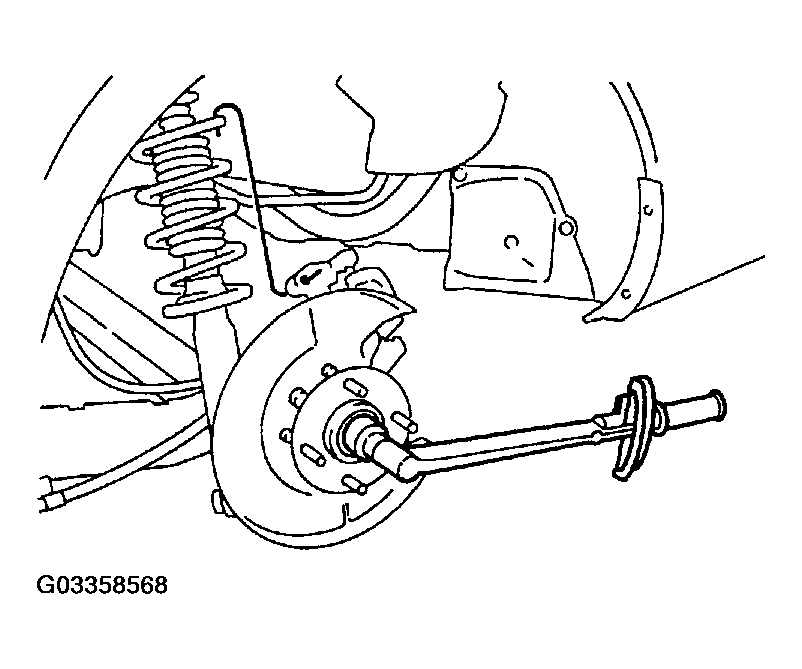

Clinch two places of lock nut.

Fig 5: Installing Clinch Two Places Of Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Install hub cap using a suitable tool.
Do not reuse hub cap. When installing, replace it with a new one.
