Power Door Lock: Schematic

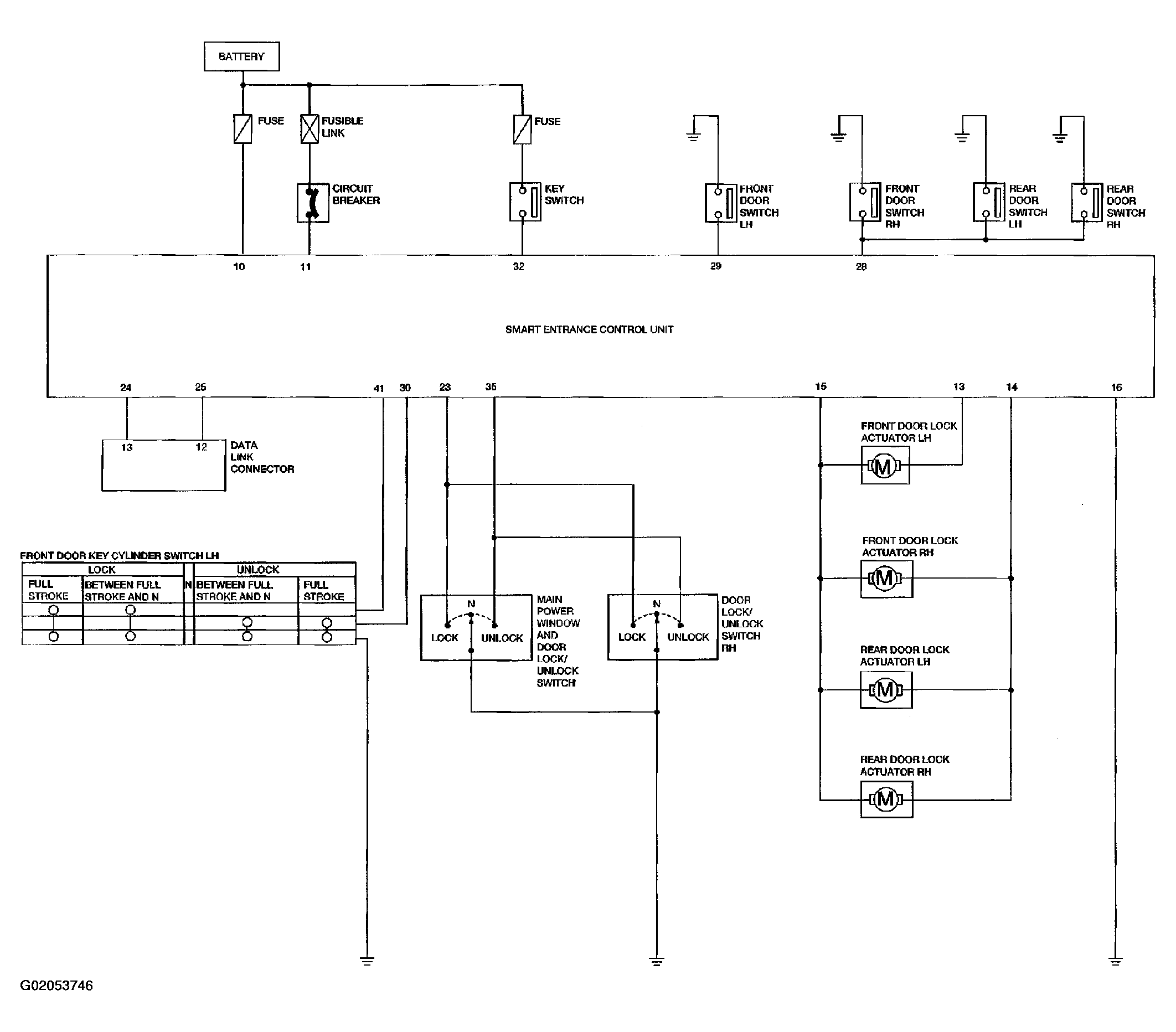

Fig 1: Power Door Lock Circuit

G02053746

Courtesy of NISSAN MOTOR CO., U.S.A.
