Removal and Installation: Notes

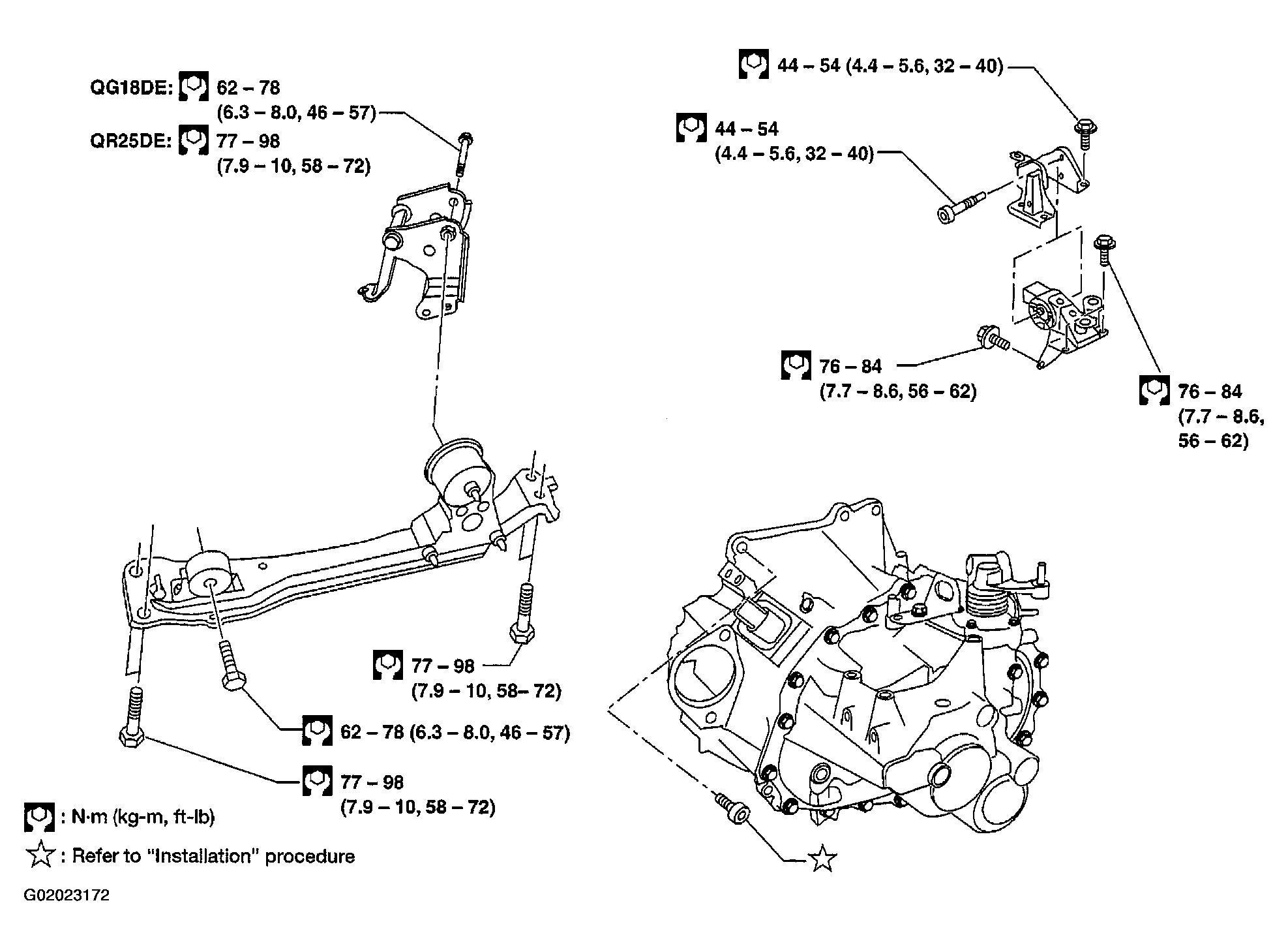

Fig 1: Identifying Transaxle Assembly Mounting Components

G02023172

Courtesy of NISSAN MOTOR CO., U.S.A.
