Manual Transaxle RS6F51H
>>
Transaxle Assembly
>>
Component Parts
>>
Final Drive Components
Final Drive Components

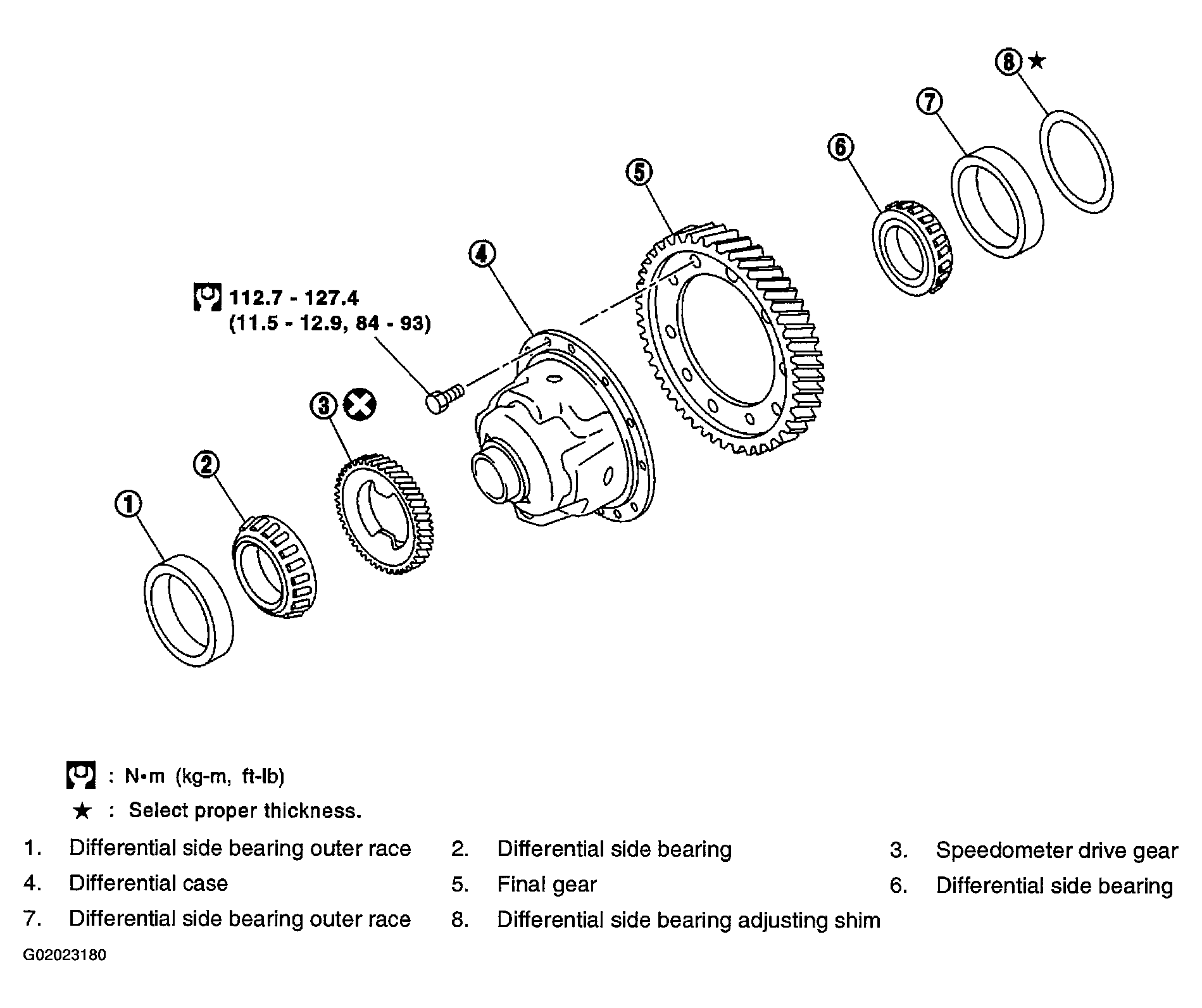

Fig 1: Identifying Transaxle RS6F51H Final Drive Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
