Clutch System: Components

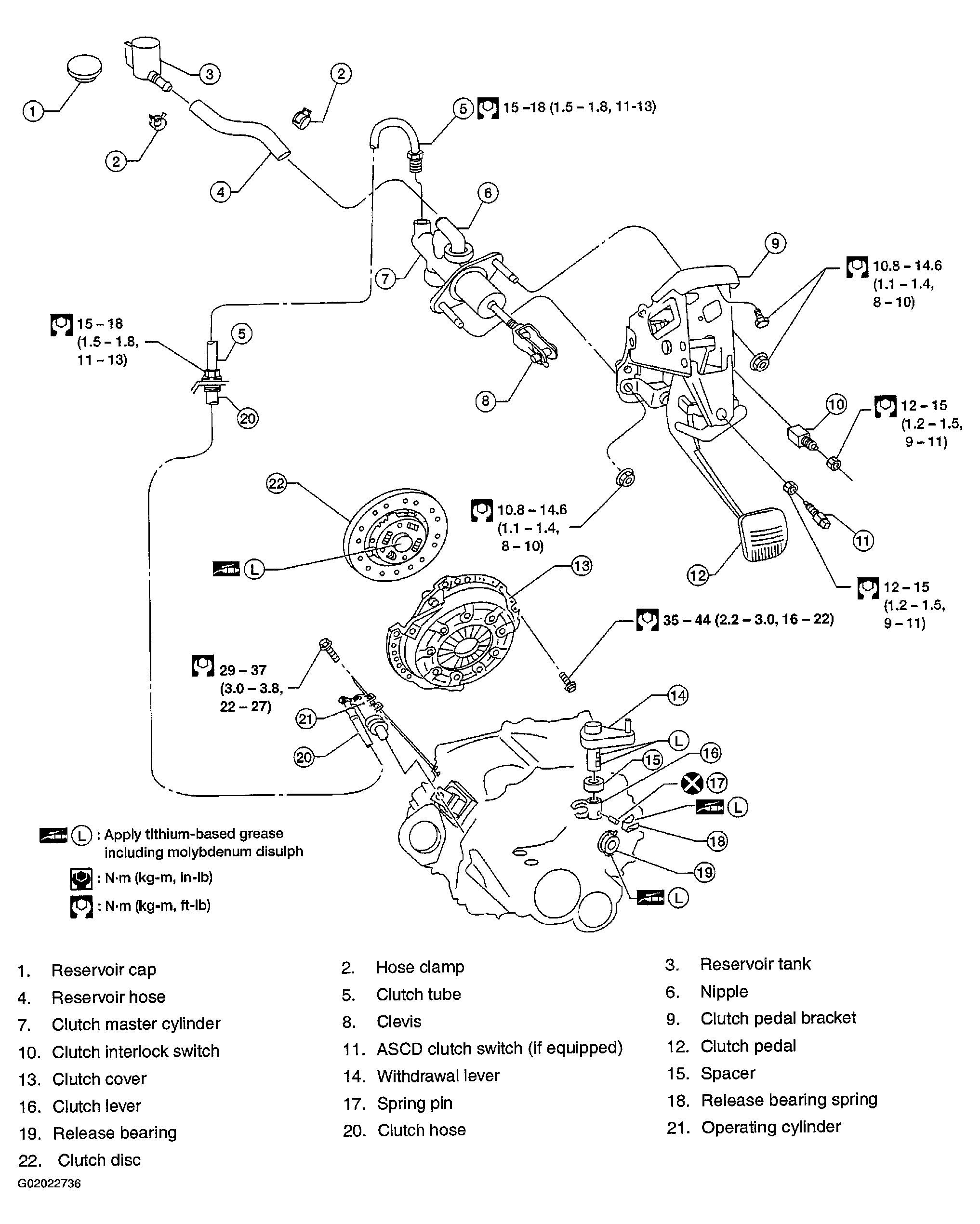

Fig 1: Identifying Clutch System Components

G02022736

Courtesy of NISSAN MOTOR CO., U.S.A.
