Steering Column: Removal

CAUTION:
  • The rotation of the spiral cable (SRS "Air Bag" component part) is limited. If the steering gear must be removed, set the front wheels in the straight-ahead direction. Do not rotate the steering column while the steering gear is removed.
  • Remove the steering wheel before removing the steering lower joint to avoid damaging the SRS spiral cable.
  1. Remove the steering wheel, refer to STEERING WHEEL  .
  2. Removal spiral cable. See DRIVER-SIDE AIR BAG MODULE & SPIRAL CABLE .
  3. Remove instrument lower panel and dash lower reinforcement panel.
  4. Remove the column covers.
  5. Disconnect electrical connectors from the ignition switch and combination switch.
  6. Remove three screws securing combination switch and remove combination switch.
  7. Remove key interlock cable (A/T models).

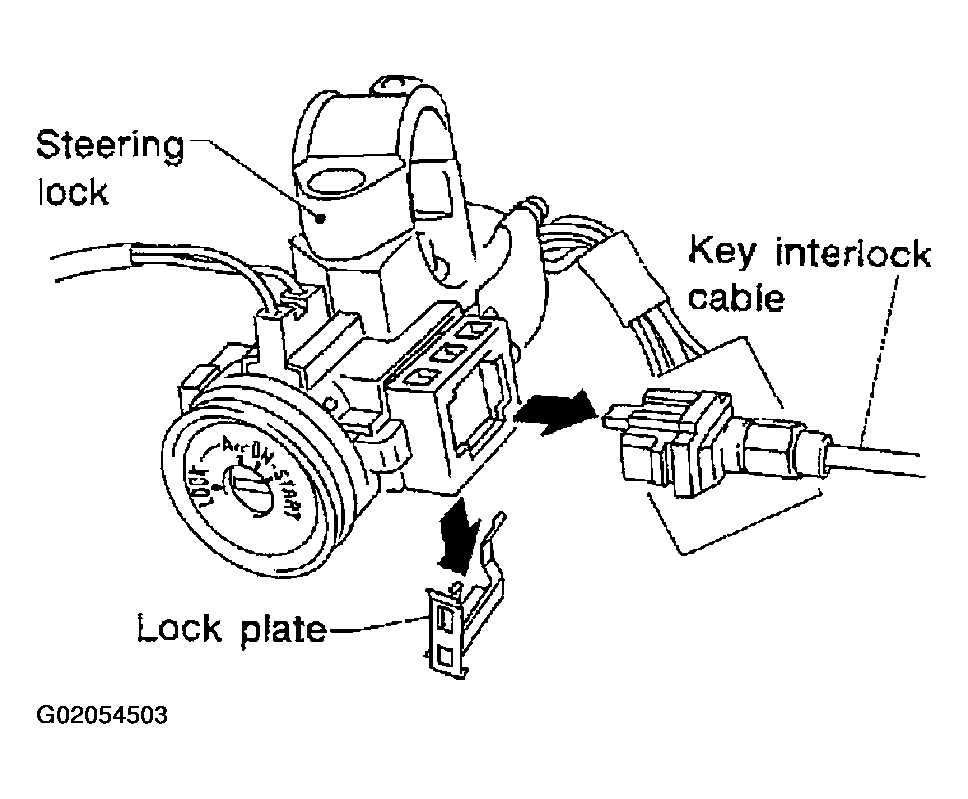

    8. Fig 1: Removing Steering Lock, Key Interlock Cable & Lock Plate
    G02054503Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove the hole cover, then remove bolt from lower joint.
  9. Remove the steering column lower cover.
  10. Remove four nuts securing steering column and remove steering column.
