Solenoid Valve

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

To perform active test of ABS functions, select major items for each test item. To perform active test of VDC/TCS functions, select item menu for each test item.
For ABS solenoid valve, touch "UP", "KEEP", and "DOWN". For ABS solenoid valve (ACT), touch "UP," "ACT UP," and "ACT KEEP". Use screen monitor to make sure solenoid valve operates as shown in Solenoid Valve Operation Chart. Refer to Fig 2 .

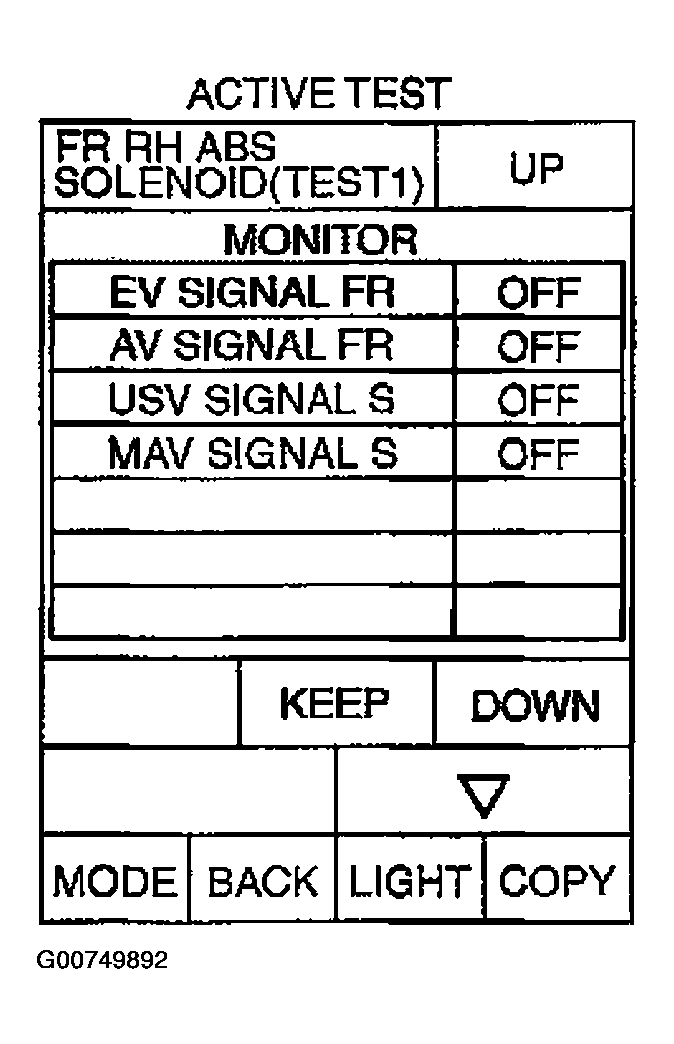

Fig 1: Viewing SOLENOID VALVE Function On Active Test Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

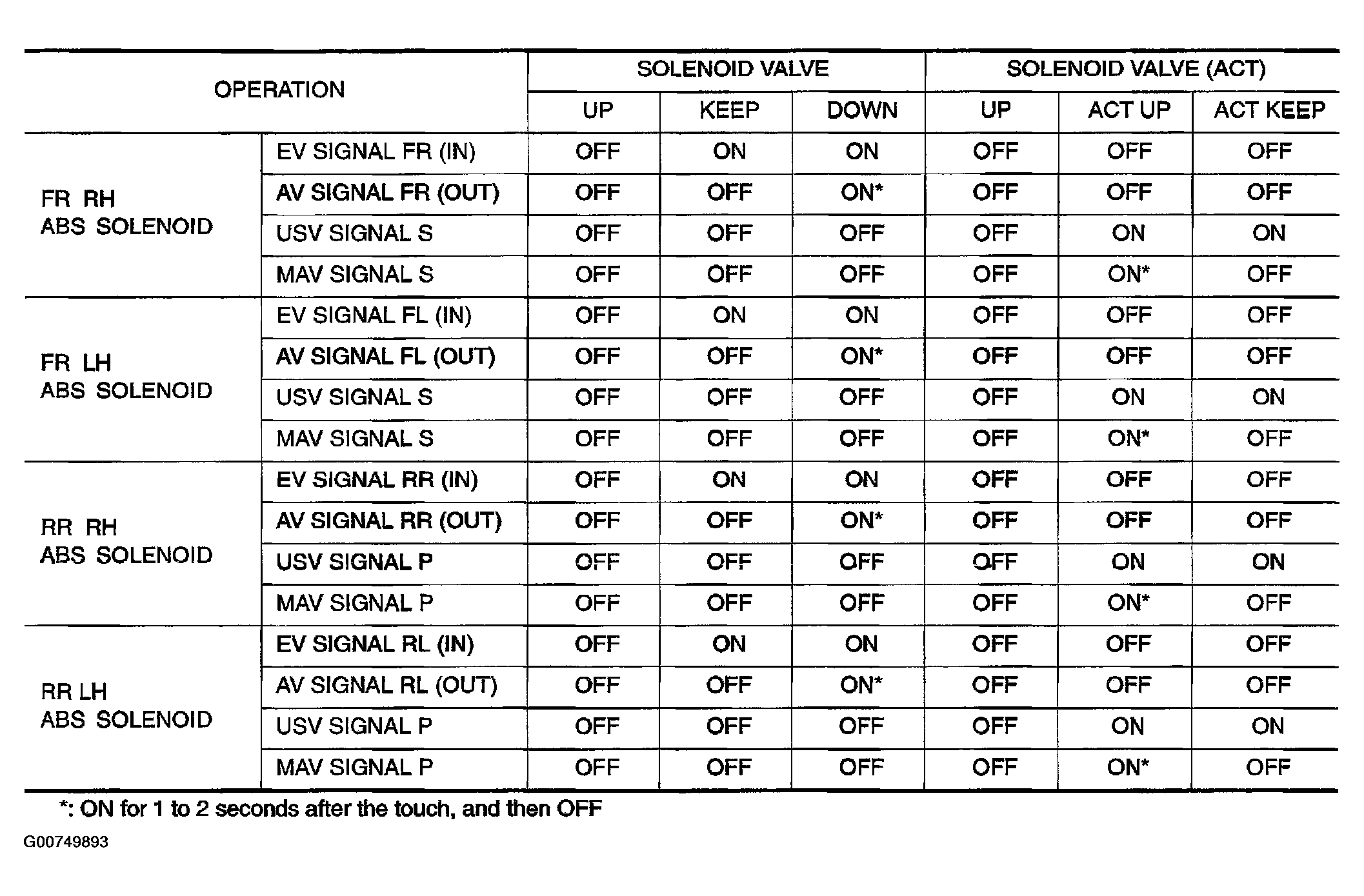

Fig 2: Defining SOLENOID VALVE Test Result
Courtesy of NISSAN MOTOR CO., U.S.A.
