Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check CAN communication circuit ;
With CONSULT-II:
1. Turn ignition switch ON and start engine.
2. Select "SELF-IDAG RESULTS" mode for "A/T" with CONSULT-II.
Is any malfunction of the "CAN COMM CIRCUIT" indicated?
1. YES : Print out CONSULT-II screen, GO TO LAN section.
  Refer to , " CAN COMMUNICATION UNIT " .
2. NO : Inspection end .

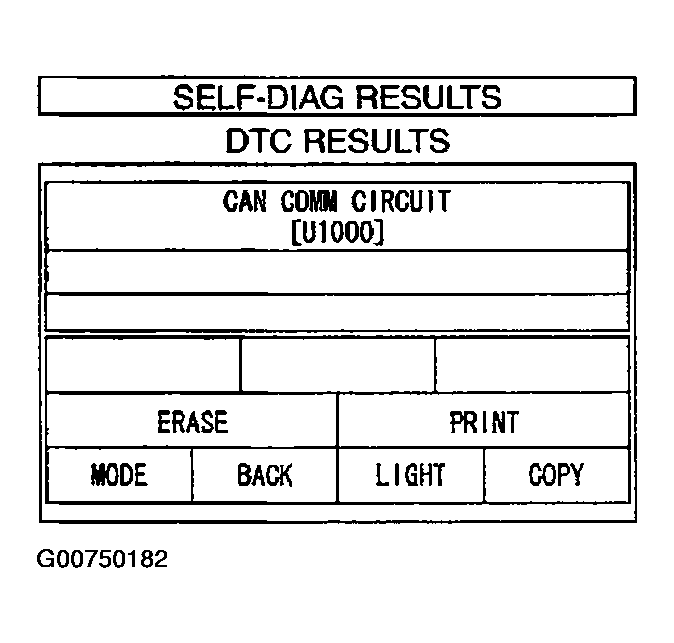

Fig 1: Selecting "SELF-DIAG RESULTS" Mode On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
