A/T Fluid Temperature Sensor 2

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove A/T fluid temperature sensor 2. Refer to ," CONTROL VALVE ASSEMBLY  "  .
  2. Check resistance between terminal 1 and 2.

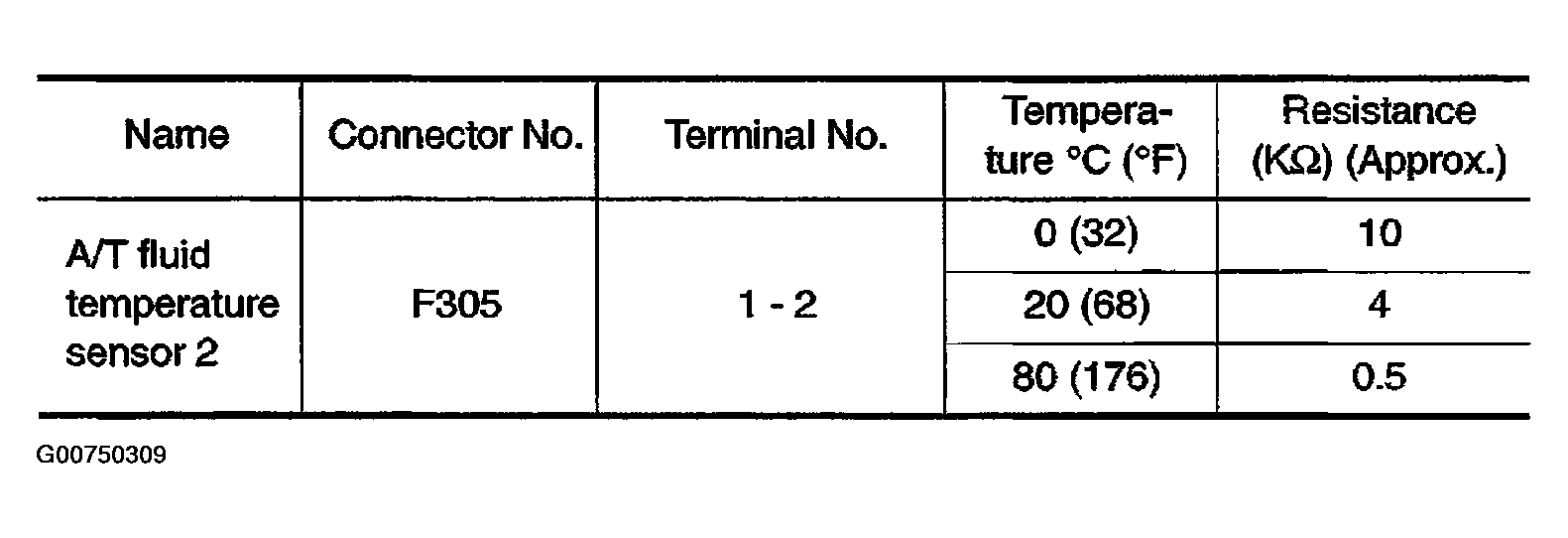

    Fig 1: Step 2 Specifications Chart
    G00750309Courtesy of NISSAN MOTOR CO., U.S.A.

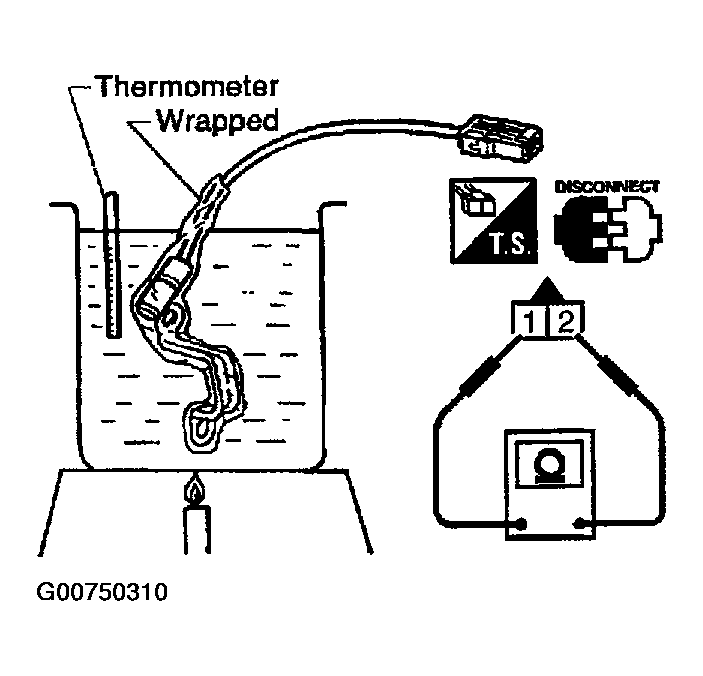

    Fig 2: Testing Procedures For Step 2
    G00750310Courtesy of NISSAN MOTOR CO., U.S.A.
