Removal And Installation For Compressor Clutch: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install the magnet coil.
CAUTION: Be sure to align the magnet coil pin with the hole in the compressor front head.

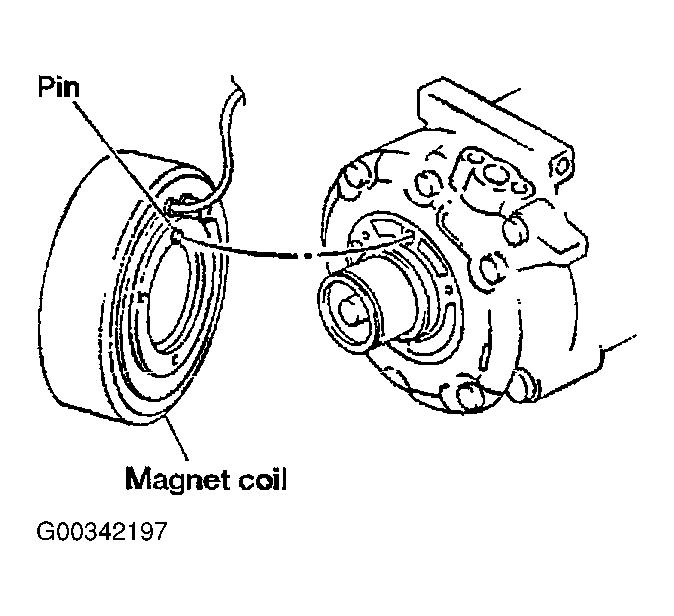

Fig 1: Installing The Magnet Coil
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the magnet coil harness clip using a screwdriver
Install the pulley assembly using Tool and a wrench, then install the snap ring using snap ring pliers.

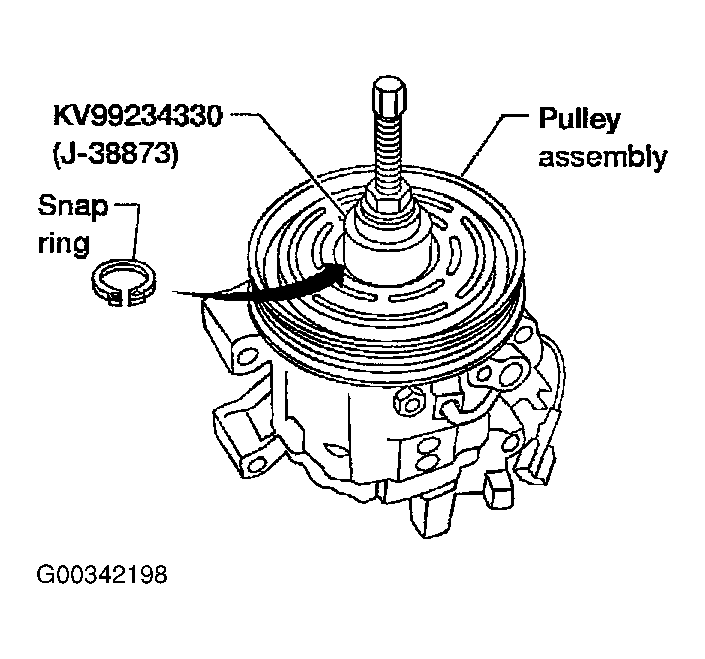

Fig 2: Installing The Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the clutch disc on the compressor shaft, together with the original shim(s). Press the clutch disc down by hand.

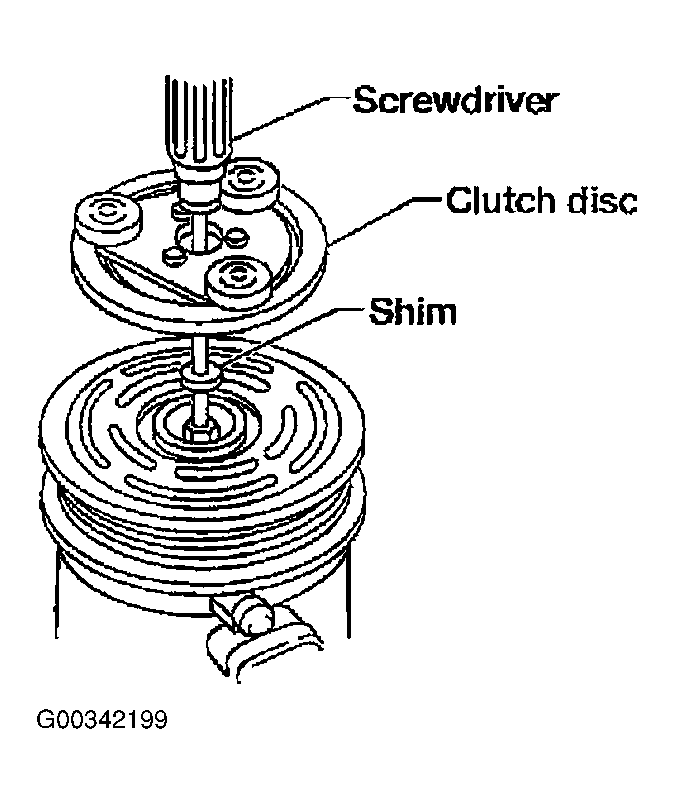

Fig 3: Installing The Clutch Disc
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the clutch pulley bolt using Tool, to prevent the clutch disc from turning and tighten the bolt to specification.
Tool number : J-44614 ( - )

CAUTION: After tightening the clutch pulley bolt, check that the clutch pulley rotates smoothly.

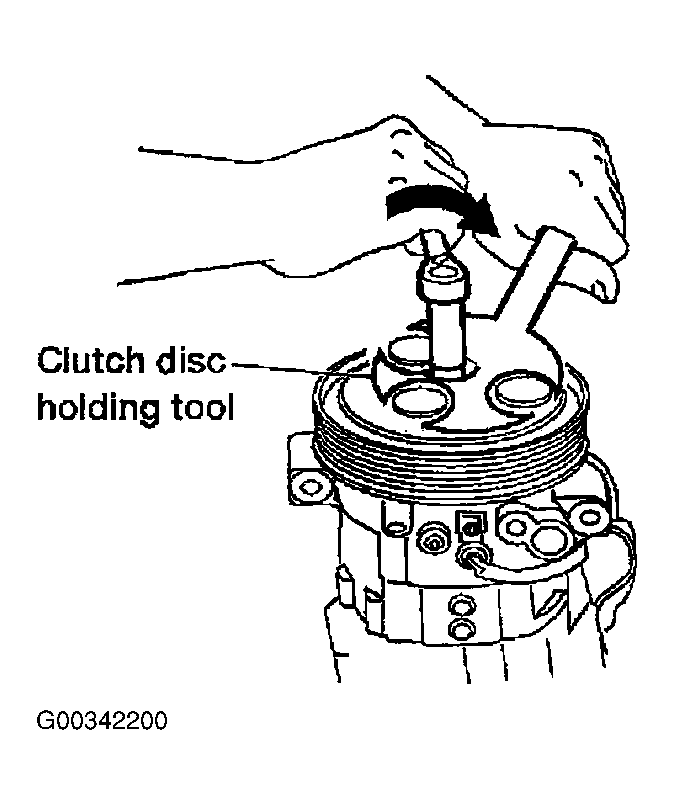

Fig 4: Installing The Clutch Pulley
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the pulley clearance all the way around the clutch disc as shown.
Clutch disc-to-pulley clearance : 0.3 - 0.6 mm (0.012-0.024 in)
If the specified clearance is not obtained, replace the adjusting spacer to readjust.
Connect the compressor electrical connector.
Install the drive belt. Refer to DRIVE BELTS .
Install the engine under cover and the splash shield.

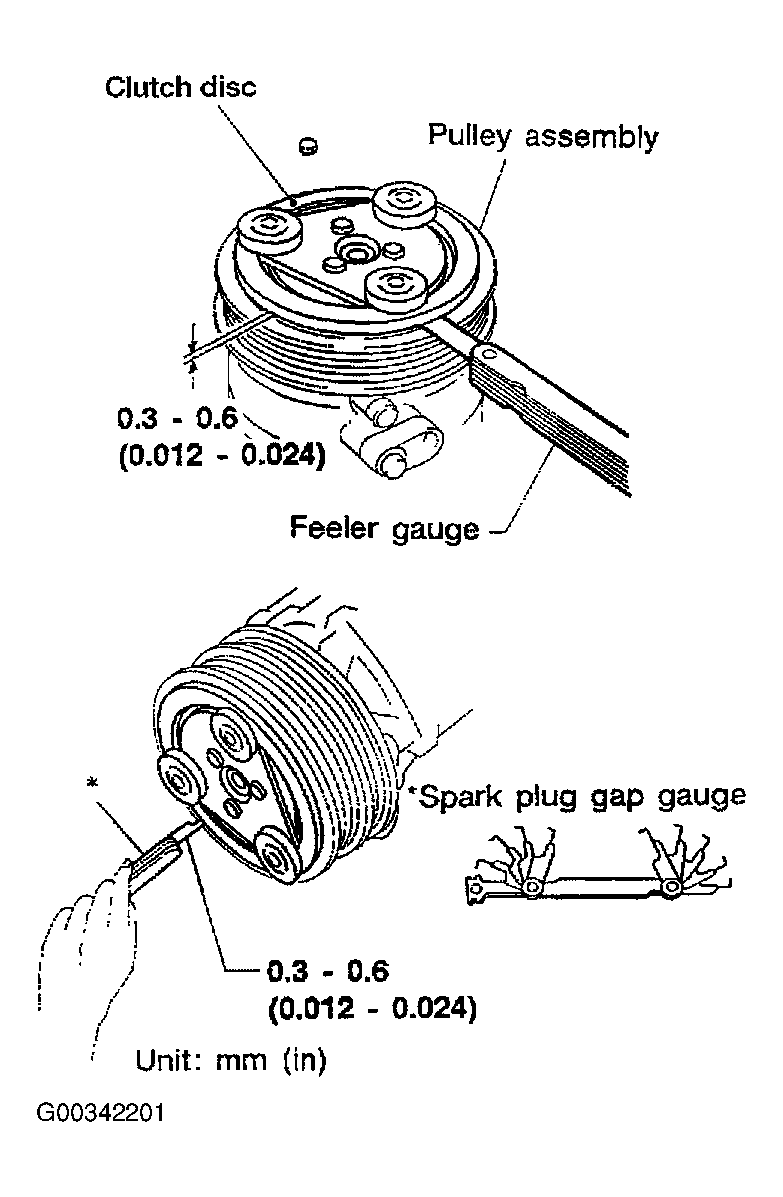

Fig 5: Checking The Pulley Clearance

Courtesy of NISSAN MOTOR CO., U.S.A.
