Stop Lamp Switch

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect stop lamp switch harness connector.

Fig 1: Identifying Stop Lamp Switch, ASCD Brake Switch And Brake Pedal
Courtesy of NISSAN NORTH AMERICA, INC.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

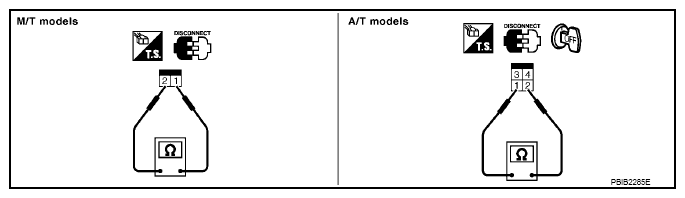

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals

Courtesy of NISSAN NORTH AMERICA, INC.

TERMINAL CONTINUITY REFERENCE CHART

Conditions	Continuity
Brake pedal: Fully released	Should not exist.
Brake pedal: Slightly depressed	Should exist.

If NG, adjust stop lamp switch installation, refer to "INSPECTION AND ADJUSTMENT ", and perform step 2 again.
