Exploded View: Components

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

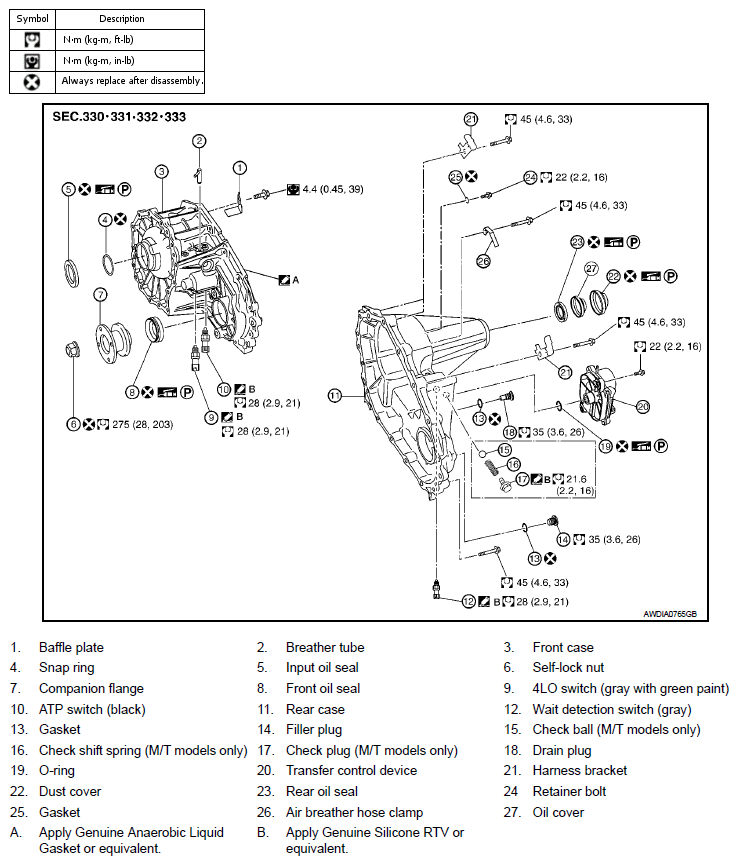

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
G07154358

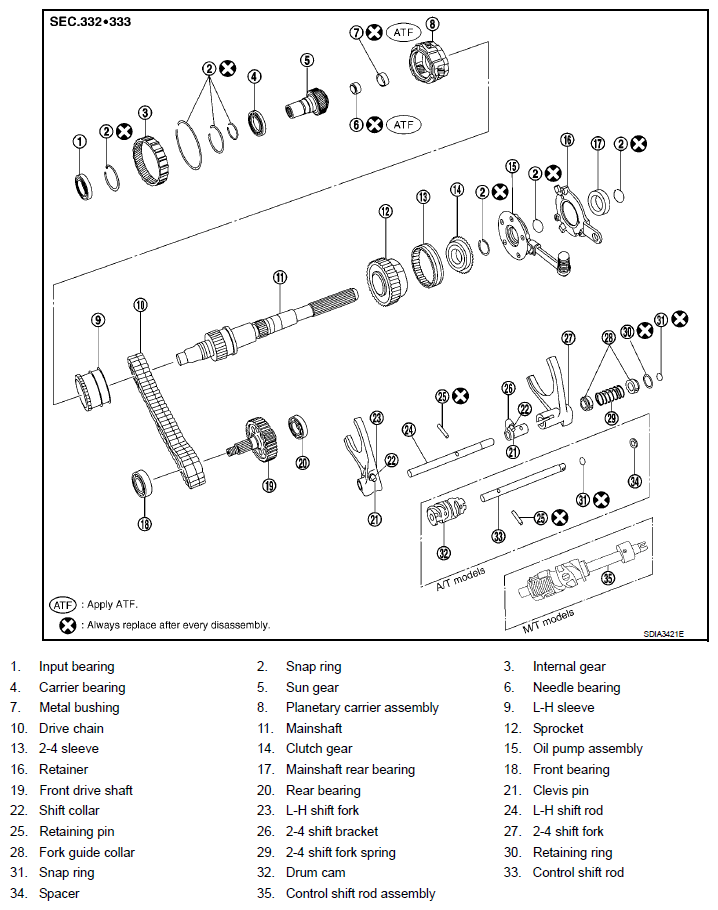

Fig 2: Exploded View Of Transfer Assembly
G07154359
