Removal and Installation

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following illustration for hydraulic line removal and installation.

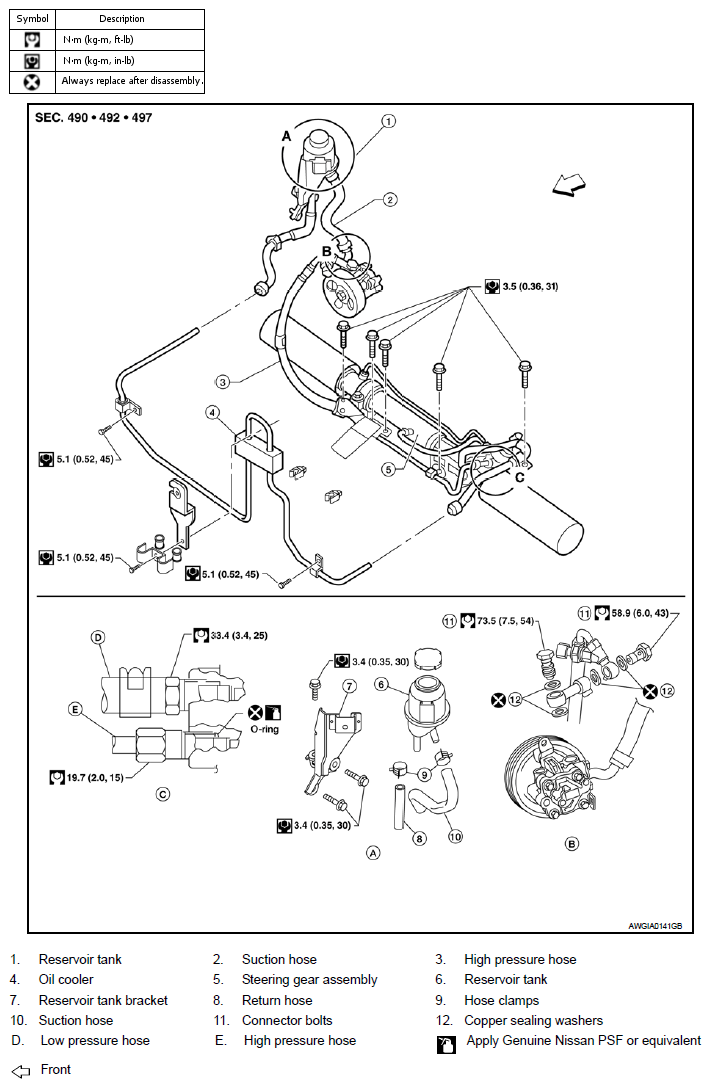

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications
G07155586
CAUTION: Do not reuse O-rings or copper sealing washers.
