Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front demister grille. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect the optical sensor connector (2).
  3. Twist the optical sensor (1) counter clockwise to remove it from the defroster grille.

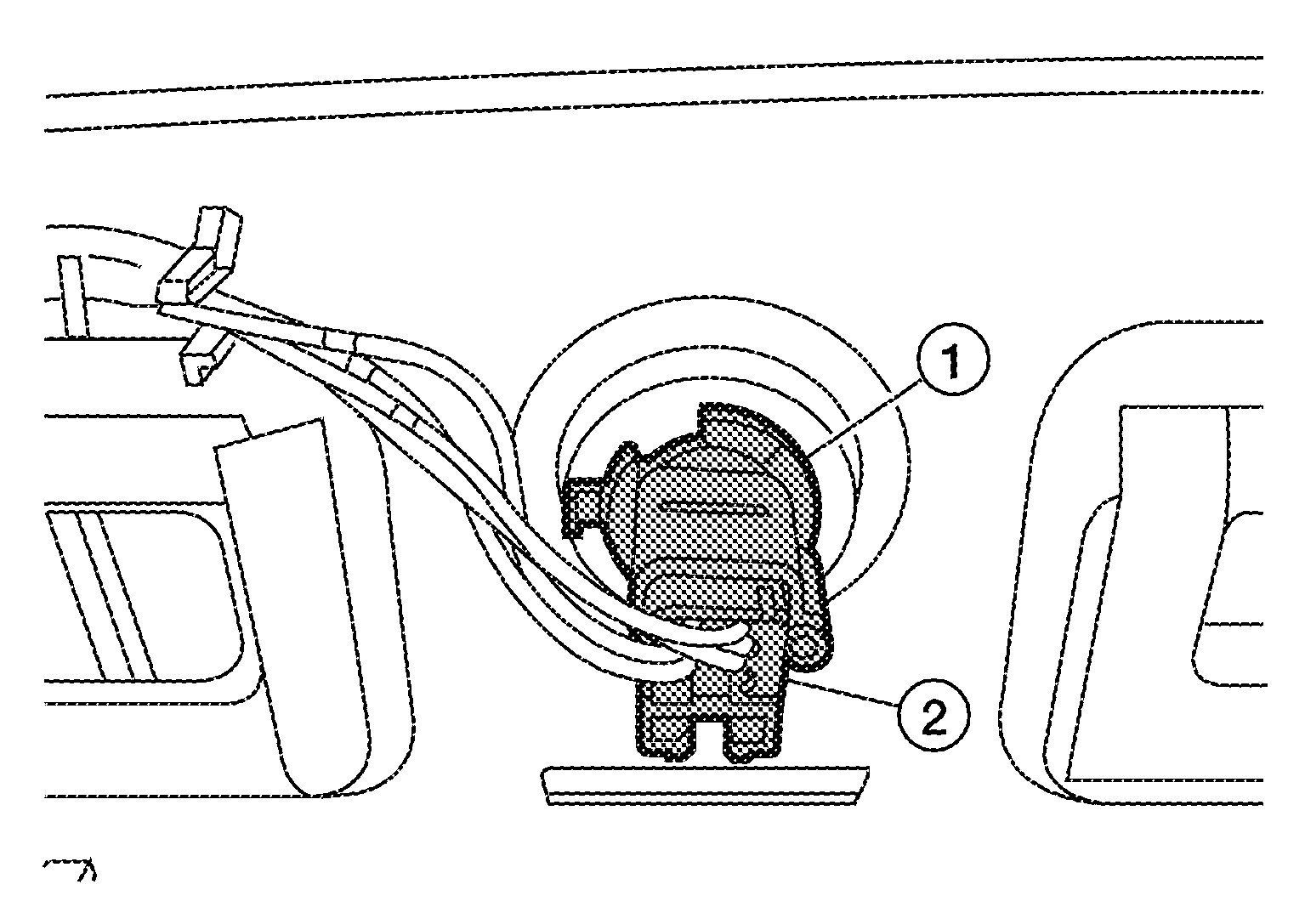

    4. Fig 1: Identifying Optical Sensor Connector And Optical Sensor
    G05381144Courtesy of NISSAN MOTOR CO., U.S.A.
