Diagnostic Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER SUPPLY
    1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
    2. Disconnect transfer control unit harness connector.
    3. Check voltage between transfer control unit harness connector terminal and ground.
      POWER SUPPLY (IGNITION SWITCH OFF)

      Connector Terminal Voltage (Approx.)
      M152 25 - Ground 0V
      M153 27 - Ground

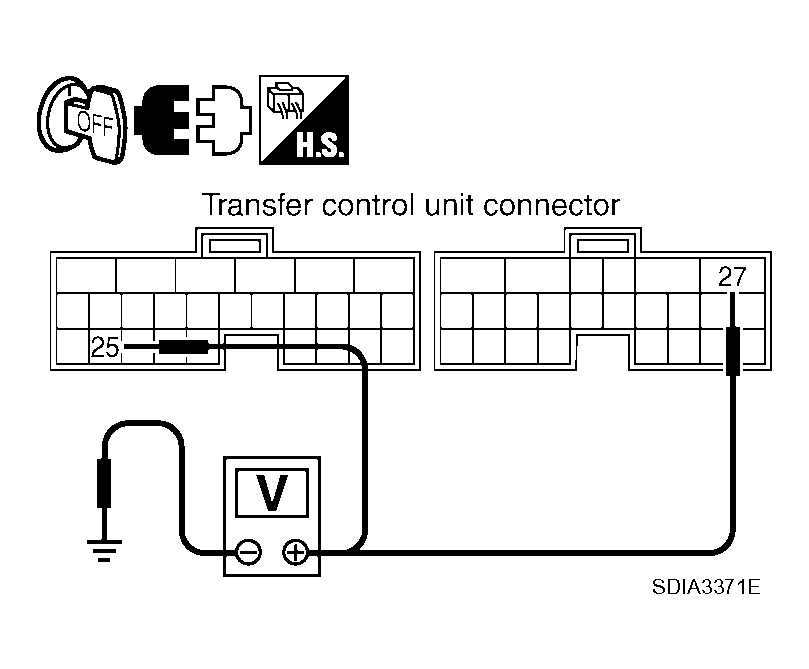

      Fig 1: Checking Voltage Between Transfer Control Unit Harness Connector Terminal And Ground
      G04174849Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Turn ignition switch "ON". (Do not start engine.)
    5. Check voltage between transfer control unit harness connector terminals and ground.
    POWER SUPPLY (IGNITION SWITCH ON)

    Connector Terminal Voltage (Approx.)
    M152 25 - Ground Battery voltage
    M153 27 - Ground
    Fig 2: Checking Voltage Between Transfer Control Unit Harness Connector Terminals And Ground
    G04174850Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 2.

    NG: Check the following. If any items are damaged, repair or replace damaged parts.

    • 10A fuse (No. 57, located in the fuse and relay block).
    • 40A fuse (No. j, located in the fuse and fusible link box).
    • Harness for short or open between battery and transfer shut off relay 1 harness connector E156 terminal 3.
    • Harness for short or open between transfer control unit harness connector M153 terminal 27 and transfer shut off relay 1 harness connector E156 terminal 5.
    • Harness for short or open between ignition switch and transfer shut off relay 1 harness connector E156 terminal 1.
    • Harness for short or open between transfer shut off relay 1 harness connector E156 terminal 2 and ground.
    • Harness for short or open between ignition switch and transfer control unit harness connector M152 terminal 25.
    • Battery and ignition switch. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
    • Transfer shut off relay 1. Refer to , "COMPONENT INSPECTION ".
  2. CHECK GROUND CIRCUIT
    1. Turn ignition switch "OFF".
    2. Disconnect transfer control unit harness connector.
    3. Check continuity between transfer control unit harness connector M153 terminal 32 and ground.

      Continuity should exist.

      Also check harness for short to power.

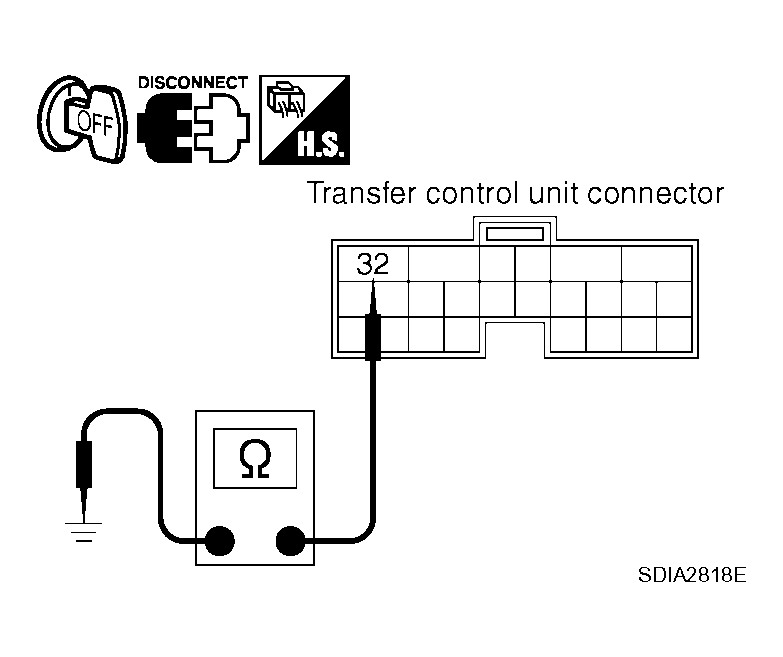

    Fig 3: Checking Continuity Between Transfer Control Unit Harness Connector Terminal 32 And Ground
    G04174851Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG: Repair open circuit or short to power in harness or connectors.

  3. CHECK POWER SUPPLY SIGNAL
    1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
    2. Connect transfer control unit harness connector.
    3. Check voltage between transfer control unit harness connector terminal and ground.
      POWER SUPPLY SIGNAL (IGNITION SWITCH OFF)

      Connector Terminal Voltage (Approx.)
      M153 40 - Ground Battery voltage

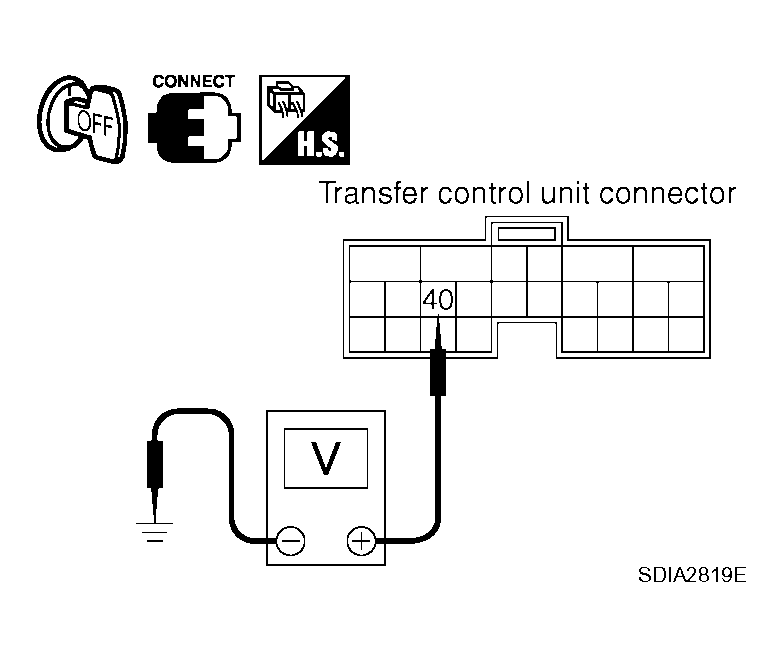

      Fig 4: Checking Voltage Between Transfer Control Unit Harness Connector Terminal And Ground
      G04174852Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Turn ignition switch "ON". (Do not start engine.)
    5. Check voltage between transfer control unit harness connector terminal and ground.
    POWER SUPPLY SIGNAL (IGNITION SWITCH ON)

    Connector Terminal Voltage (Approx.)
    M153 40 - Ground 0V

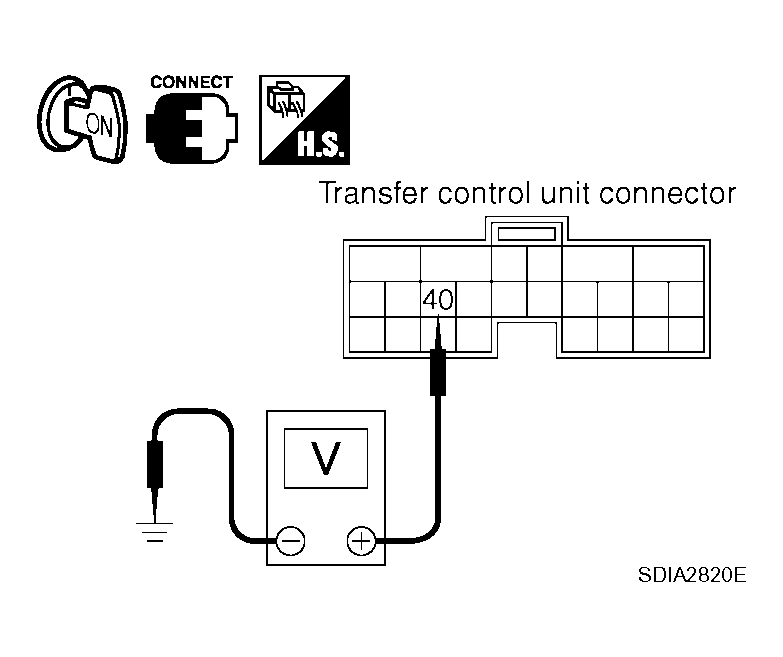

    Fig 5: Checking Voltage Between Transfer Control Unit Harness Connector Terminal And Ground
    G04174853Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Check the following. If any items are damaged, repair or replace damaged parts.

    • Harness for short or open between battery and transfer shut off relay 2 harness connector E157 terminal 1.
    • Harness for short or open between transfer shut off relay 2 harness connector E157 terminal 2 and transfer control unit harness connector M153 terminal 40.
    • Transfer shut off relay 2. Refer to , "COMPONENT INSPECTION ".
  4. CHECK TRANSFER CONTROL UNIT

    Check transfer control unit input/output signal. Refer to , "TRANSFER CONTROL UNIT INPUT/OUTPUT SIGNAL REFERENCE VALUES ".

    OK or NG

    OK-1: With CONSULT-II: GO TO 5.

    OK-2: Without CONSULT-II: GO TO  6.

    NG: Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.

  5. PERFORM SELF-DIAGNOSIS (WITH CONSULT-II)

    With CONSULT-II

    1. Turn ignition switch "ON". (Do not start engine.)
    2. Select "SELF-DIAG RESULTS" mode for "ALL MODE AWD/4WD" with CONSULT-II.
    3. Touch "ERASE".
    4. Turn ignition switch "OFF" and wait at least 10 seconds.
    5. Perform the self-diagnosis again.

    Is the "SHIFT ACT CIR [P1819]" displayed?

    YES: Replace transfer control unit. Refer to , "TRANSFER CONTROL UNIT ".

    NO: Inspection End.

  6. PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-II)

    Without CONSULT-II

    1. Perform the self-diagnosis and then erase self-diagnostic results. Refer to , "SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II) " and , "ERASE SELF-DIAGNOSIS ".
    2. Perform the self-diagnosis again.

    Do the self-diagnostic results indicate transfer control device?

    YES: Replace transfer control unit. Refer to , "TRANSFER CONTROL UNIT ".

    NO: Inspection End.
