Removal and Installation of Hood Lock Control: Installation

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Pull the hood lock cable through the hole in dash lower panel into the engine room. Be careful not to bend the cable too much, keeping the radius 100mm (3.94 in) or more.
Make sure the cable is not offset from the positioning grommet, and from inside the vehicle, push the grommet into the dash lower hole securely.
Apply the sealant around the grommet at (*) mark.

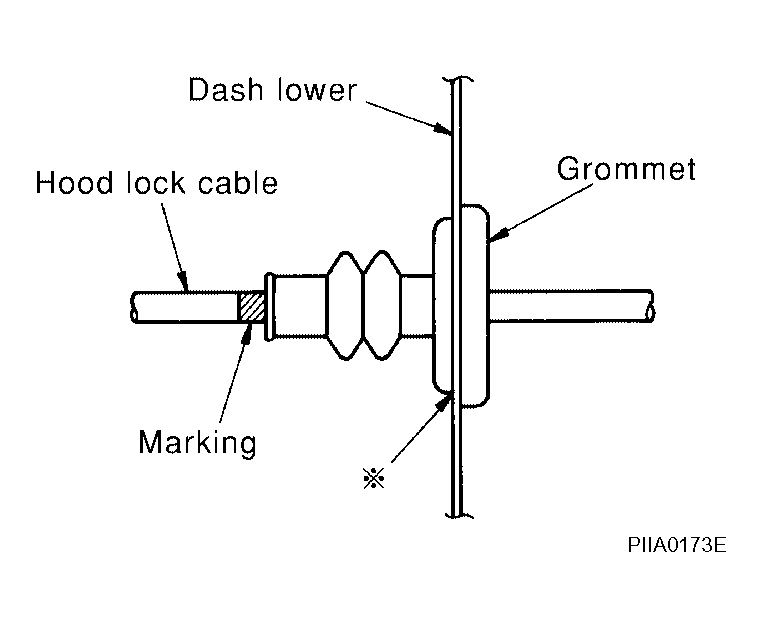

Fig 1: Identifying Hood Lock Cable, Dash Lower, Grommet & Marking
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the cable securely to the lock.
After installing, check the hood lock adjustment and hood opener operation.

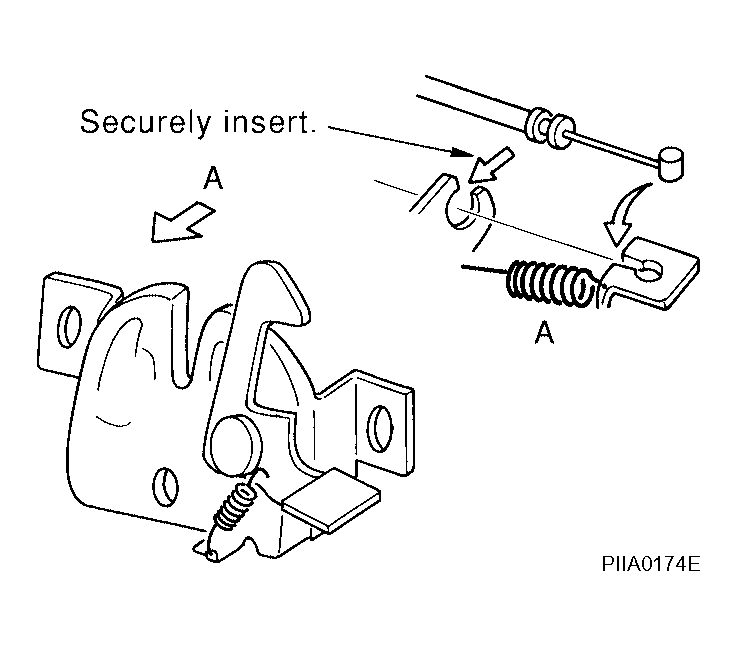

Fig 2: Installing Cable Securely To Lock
Courtesy of NISSAN MOTOR CO., U.S.A.
