Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

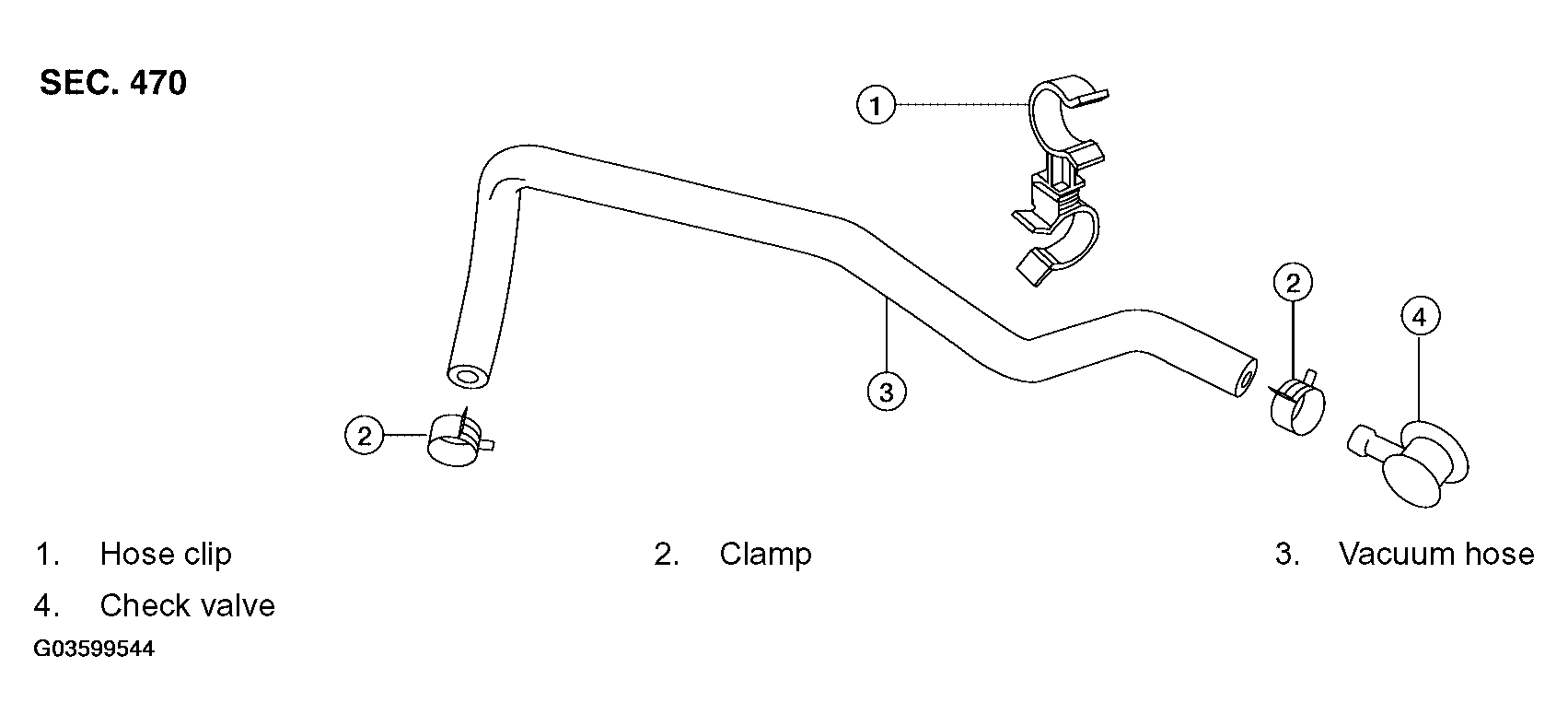

Fig 1: Identifying Vacuum Lines
G03599544Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Disconnect vacuum hose from hose clip.
  2. Release clamps and disconnect vacuum hose.
  3. Remove check valve from brake booster.
  4. Installation is in the reverse order of removal.
    CAUTION:
    • Insert vacuum hose for at least 24 mm (0.94 in).
    • Do not use lubricating oil during assembly.

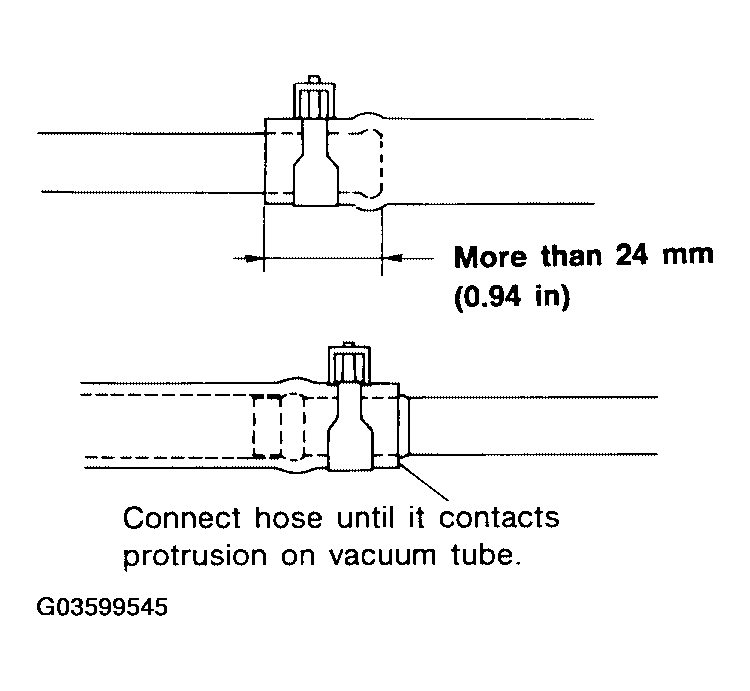

    Fig 2: Connecting Hose Dimension
    G03599545Courtesy of NISSAN MOTOR CO., U.S.A.
