Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door upper finisher. Refer to "BACK DOOR TRIM ".
  2. Disconnect the high-mounted stop lamp connector.
  3. Remove 2 nuts and remove high-mounted stop lamp.

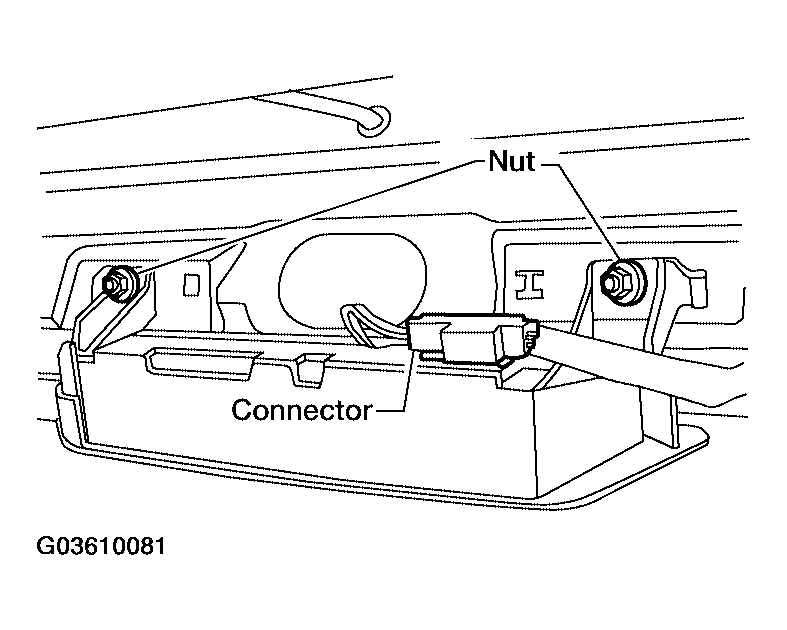

    Fig 1: Removing High-Mounted Stop Lamp
    G03610081Courtesy of NISSAN MOTOR CO., U.S.A.
