Front Door Lock Actuator RH Check

1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 65, 66 and ground.
   BCM CONNECTOR TERMINALS AND VOLTAGE REFERENCE



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   M20	65	Ground	Door lock/unlock switch is turned to LOCK	0 --> Battery voltage
   	66		Door lock/unlock switch is turned to UNLOCK	0 --> Battery voltage

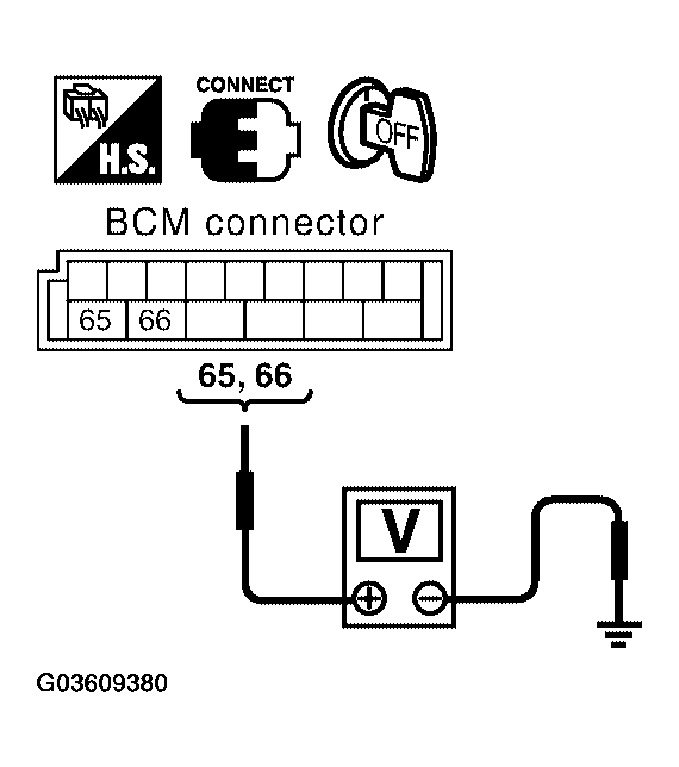

   Fig 1: Checking Voltage Between BCM Connector M20 Terminals 65, 66 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 2.
• NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

1. Disconnect BCM and front door lock actuator RH.
2. Check continuity between BCM connector M20 terminals 65, 66 and front door lock actuator RH D114 terminals 1, 2.
   BCM CONNECTOR TERMINALS AND CONTINUITY REFERENCE



   Terminals		Continuity
   65	2	Yes
   66	1	Yes

3. Check continuity between BCM connector M19 terminals 65, 66 and ground.
   BCM CONNECTOR TERMINALS AND CONTINUITY REFERENCE



   Terminals		Continuity
   65	Ground	No
   66		No

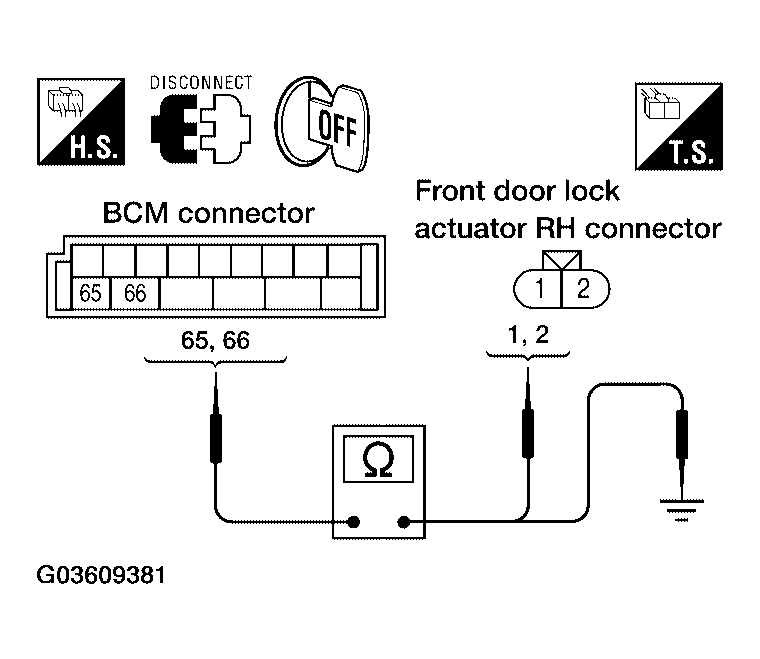

   Fig 2: Checking Continuity Between BCM Connector M19 Terminals 65, 66 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Replace front door lock actuator RH. Refer to "REMOVAL AND INSTALLATION ".
• NG: Repair or replace harness.
