Crush Horn

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When replacing a damaged crush horn on N50 model, do not choose partial replacement method, such as cutting and butt-joint welding the crush horn.

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body mounting bracket.

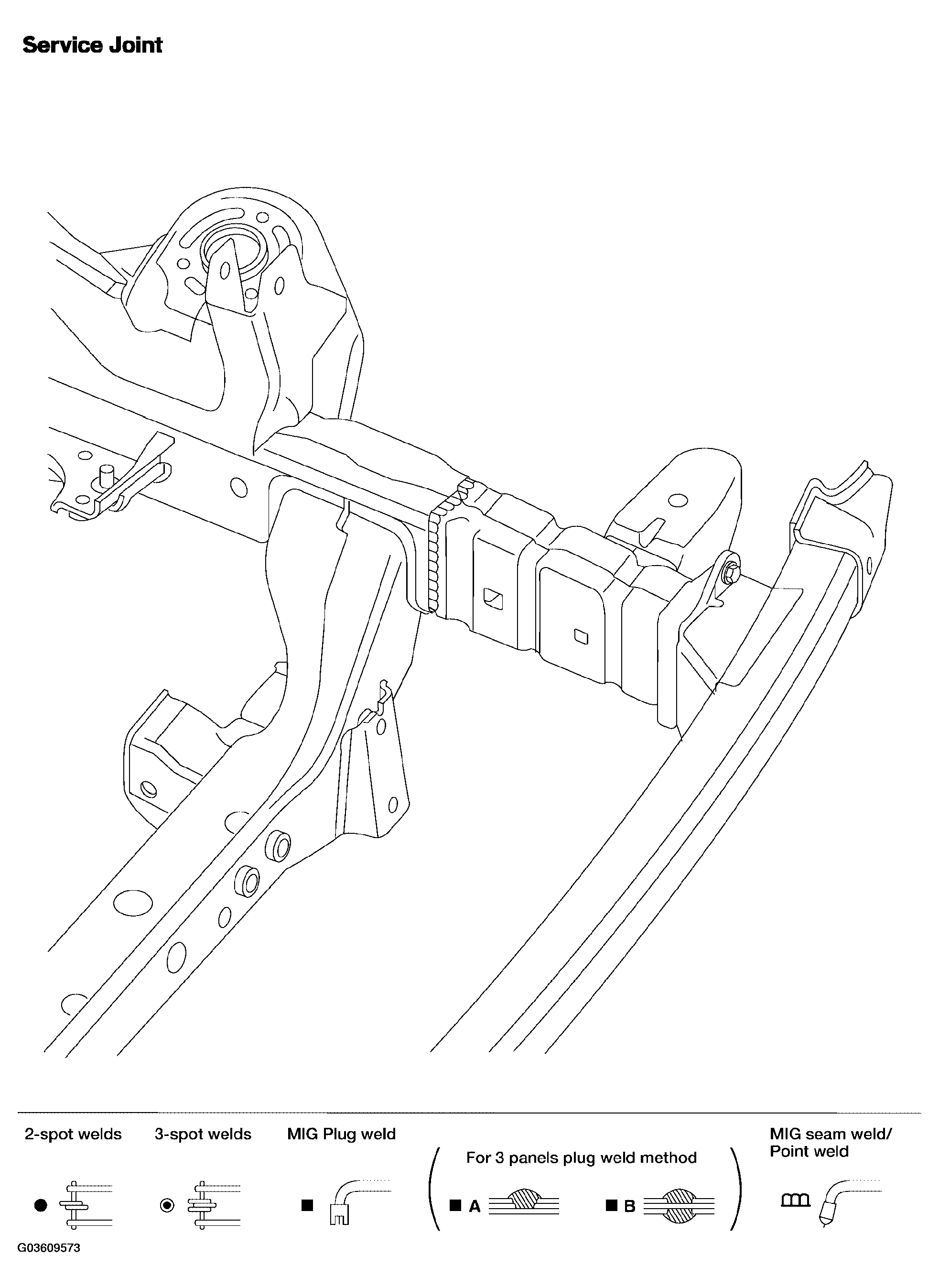

Fig 1: Identifying Service Joint
G03609573Courtesy of NISSAN MOTOR CO., U.S.A.
