Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove console finisher (A/T) or console boot (M/T). Refer to "REMOVAL AND INSTALLATION ".
  2. Remove mounting clips, and then remove A/C controller from console finisher (A/T) or console boot (M/T).

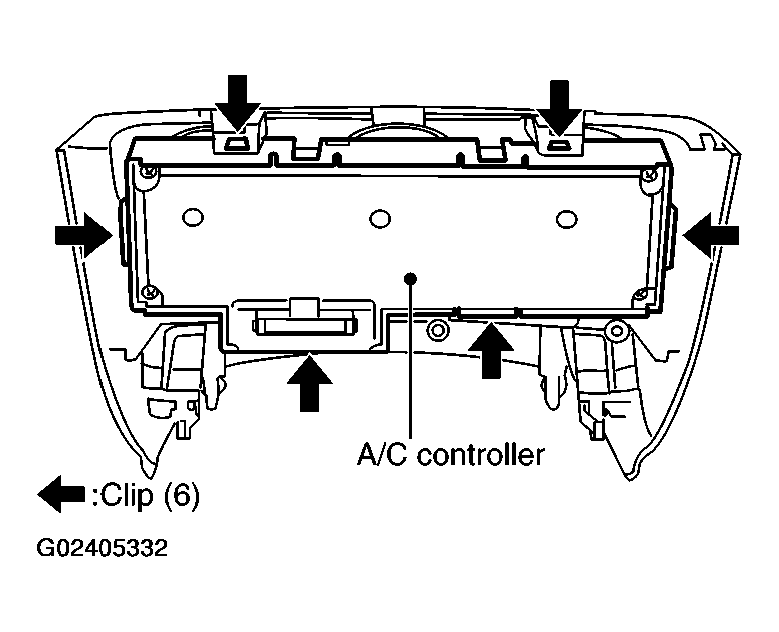

    Fig 1: Removing Mounting Clips
    G02405332Courtesy of NISSAN MOTOR CO., U.S.A.
