Tire Rotation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not include the T-type spare tire when rotating the tires.
  • When installing wheels, tighten them diagonally by dividing the work two to three times in order to prevent the wheels from developing any distortion.
    1. Tightening torque of wheel nut
      1. : 108 N.m (11 kg, 80 ft-lb)

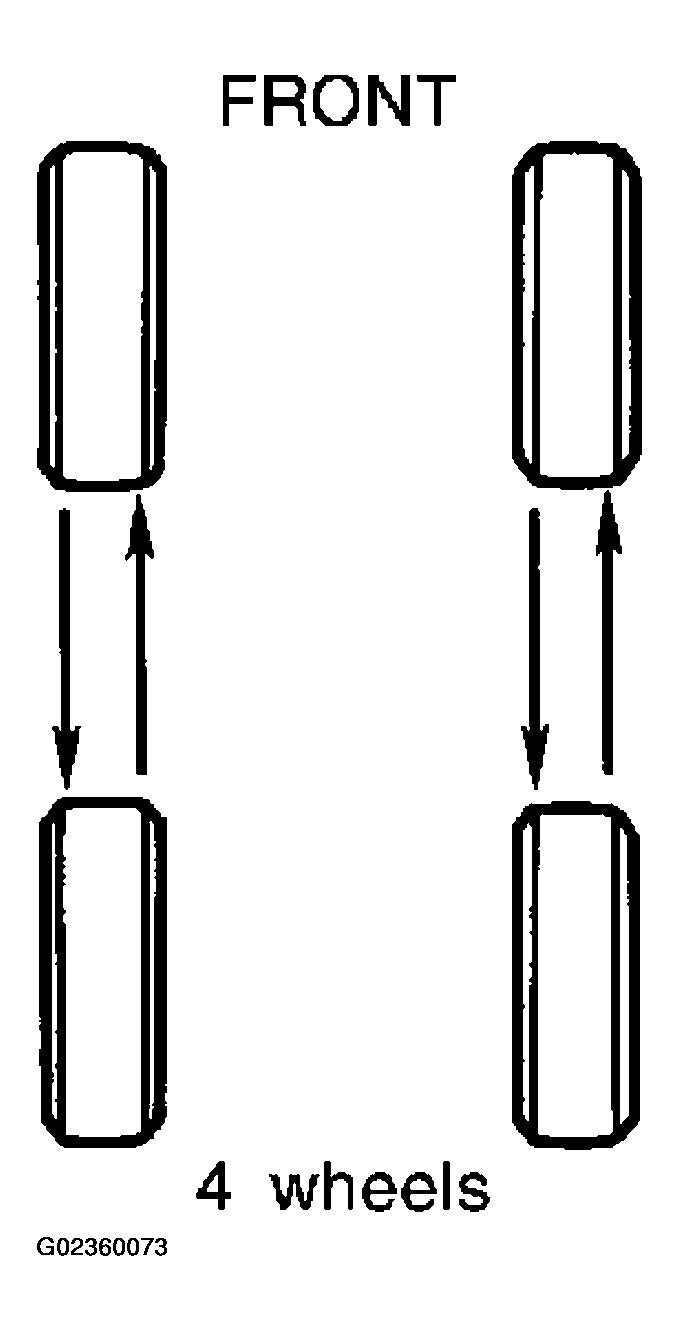

    Fig 1: Locating Tire Rotation
    G02360073Courtesy of NISSAN MOTOR CO., U.S.A.
