Trouble Diagnoses Symptom Chart

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Make sure other systems using the signal of the following systems operate normally.

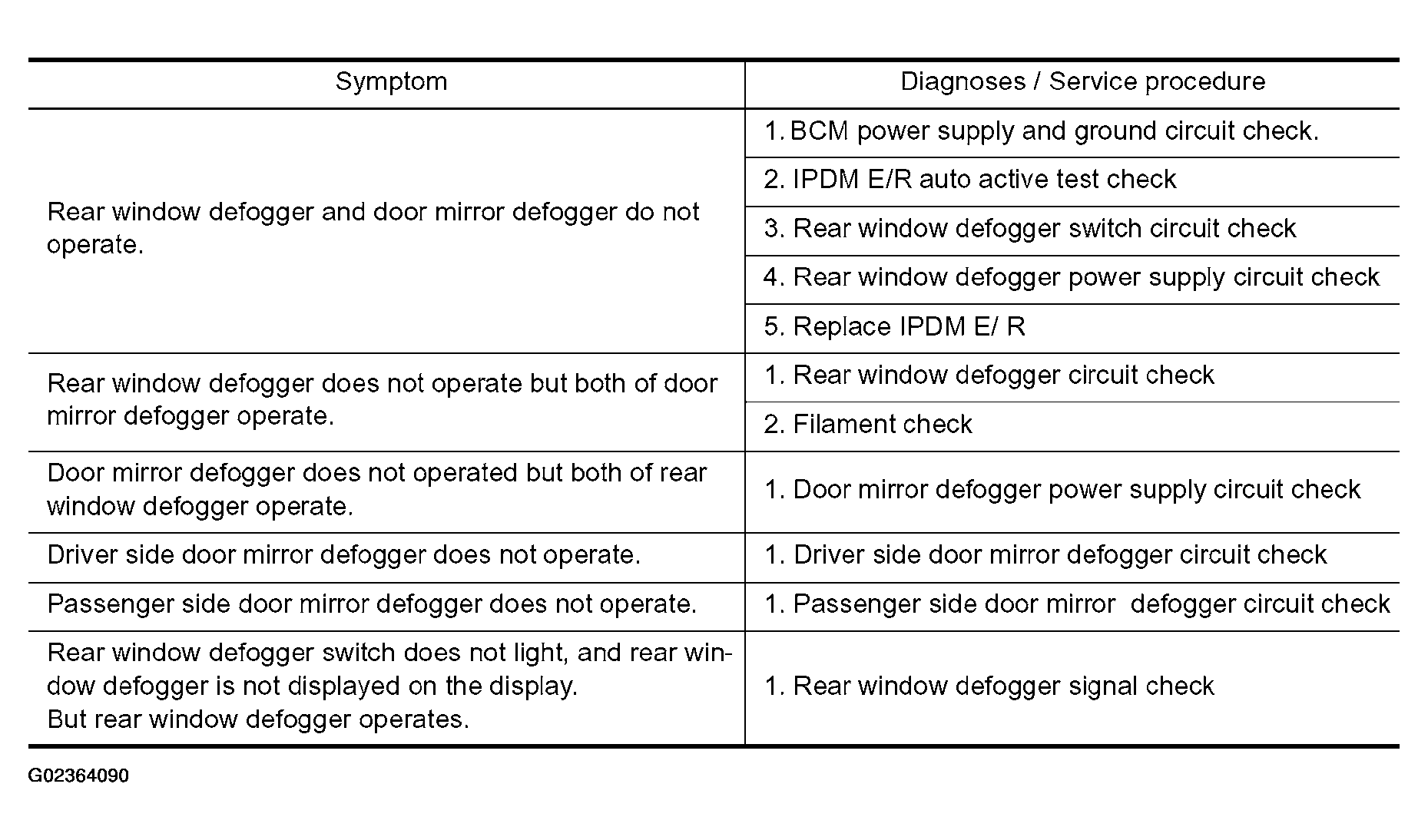

Fig 1: Trouble Diagnoses Symptom Chart
G02364090Courtesy of NISSAN MOTOR CO., U.S.A.
