Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front kicking plate (driver side). "KICKING PLATE ".
  2. Remove dash side finisher (driver side). "DASH SIDE FINISHER ".
  3. Remove instrument lower panel (driver side). "INSTRUMENT PASSENGER LOWER PANEL ".
  4. Remove steering column assembly. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove stop lamp switch and ASCD cancel switch (or brake switch) from pedal assembly.
  6. Remove snap pin and clevis pin from brake booster clevis.
  7. Remove mounting nuts and bolts from bracket, and remove pedal assembly from the vehicle.

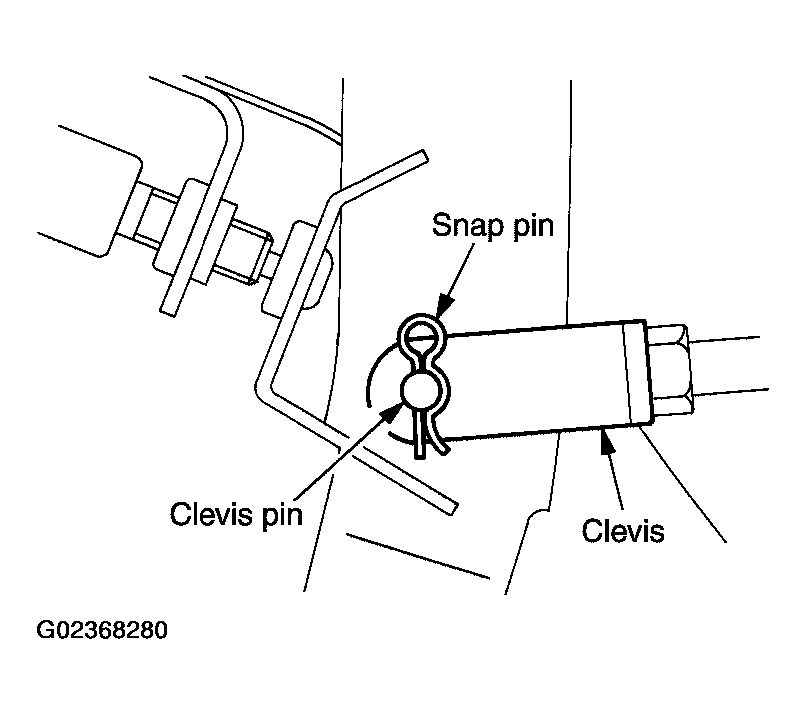

    Fig 1: Removing Snap Pin And Clevis Pin From Brake Booster Clevis
    G02368280Courtesy of NISSAN MOTOR CO., U.S.A.
