WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Terminals & Reference Values For BCM
Courtesy of NISSAN MOTOR CO., U.S.A.

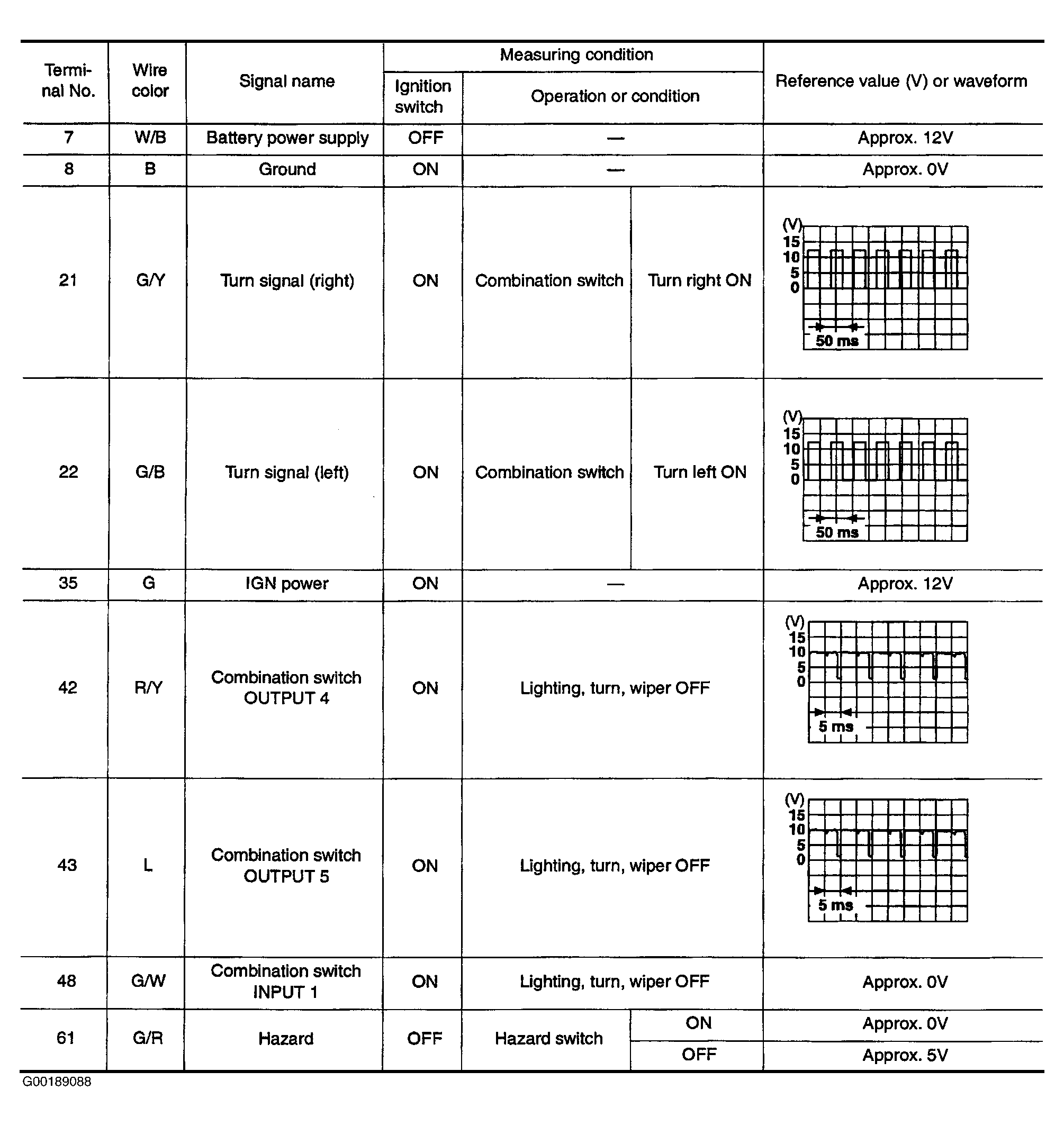

Fig 2: Identifying Terminals & Reference Values For IPDM
