Table For Selecting Differential Side Bearing Adjusting Shims
Table For Selecting Differential Side Bearing Adjusting Shims

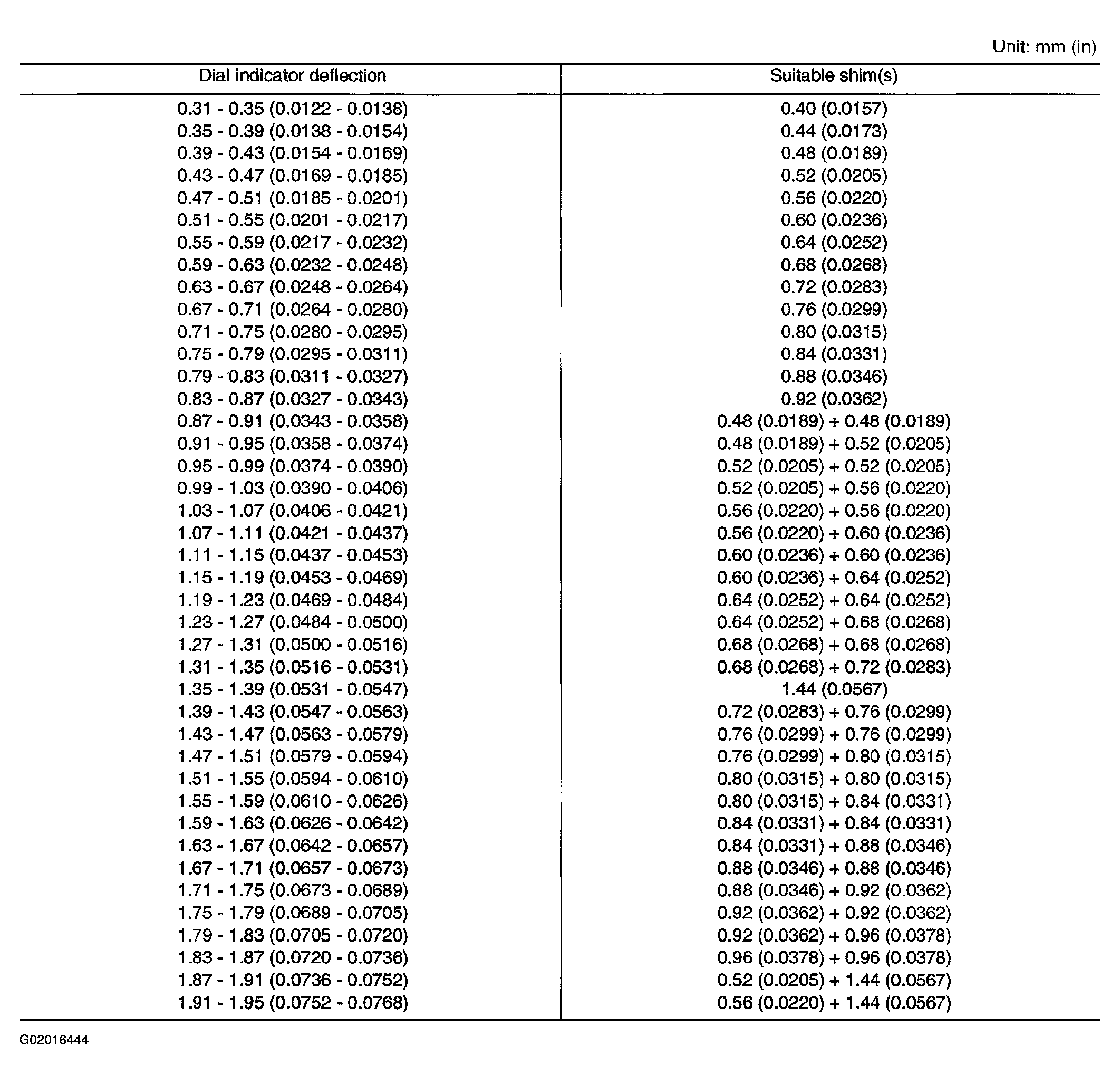

Fig 1: Differential Side Bearing Adjusting Shims Selection Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
