Automatic Transaxle Re4F03B
>>
Overall System
>>
Shift Mechanism
>>
Power Transmission
>>
1(1) Position
1(1) Position

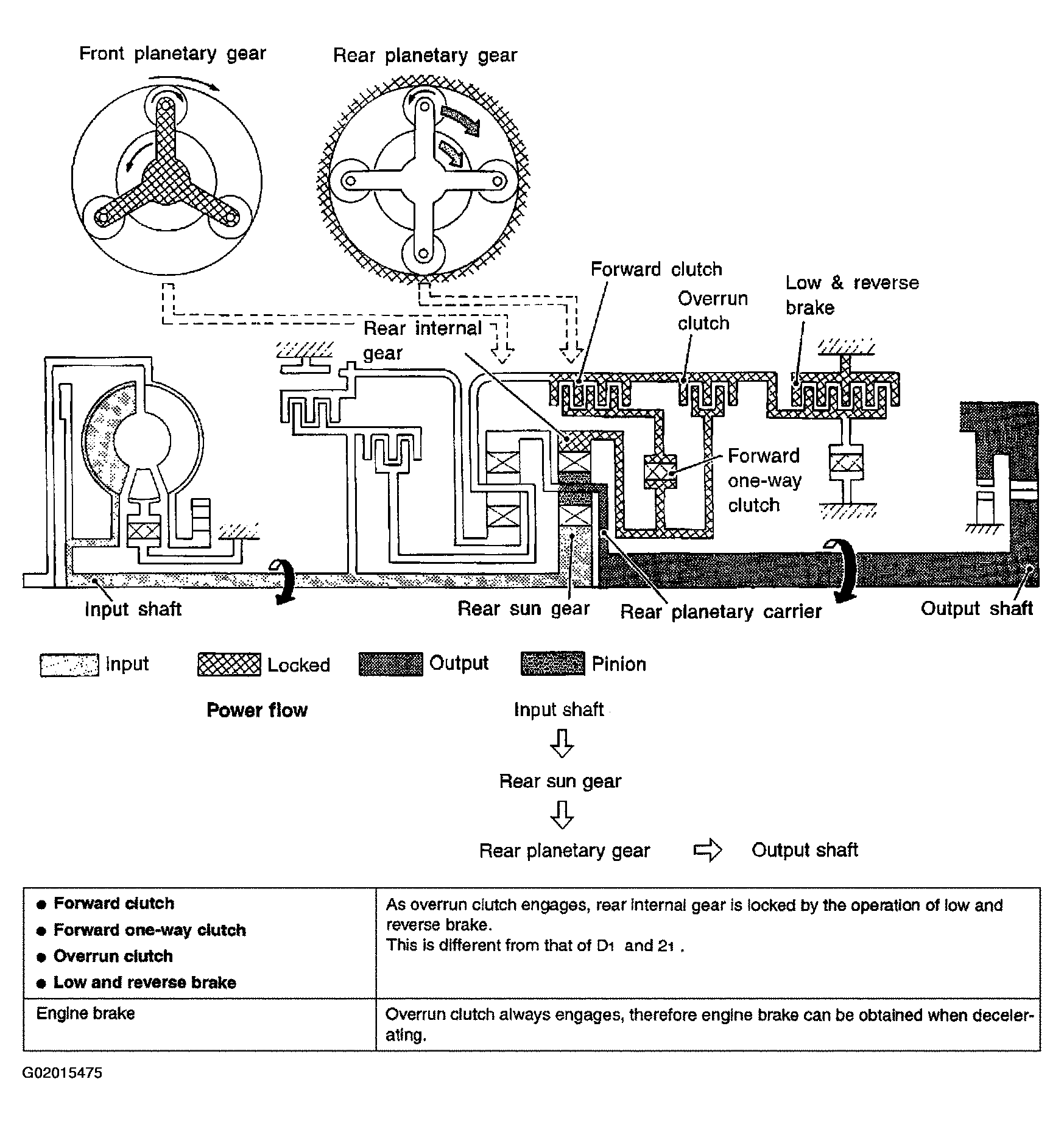

Fig 1: Diagraming 1(1) Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
