Home >> Nissan-Datsun >> 2002 >> Quest GXE >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator >> Construction

Charging Systems: Generator: Construction

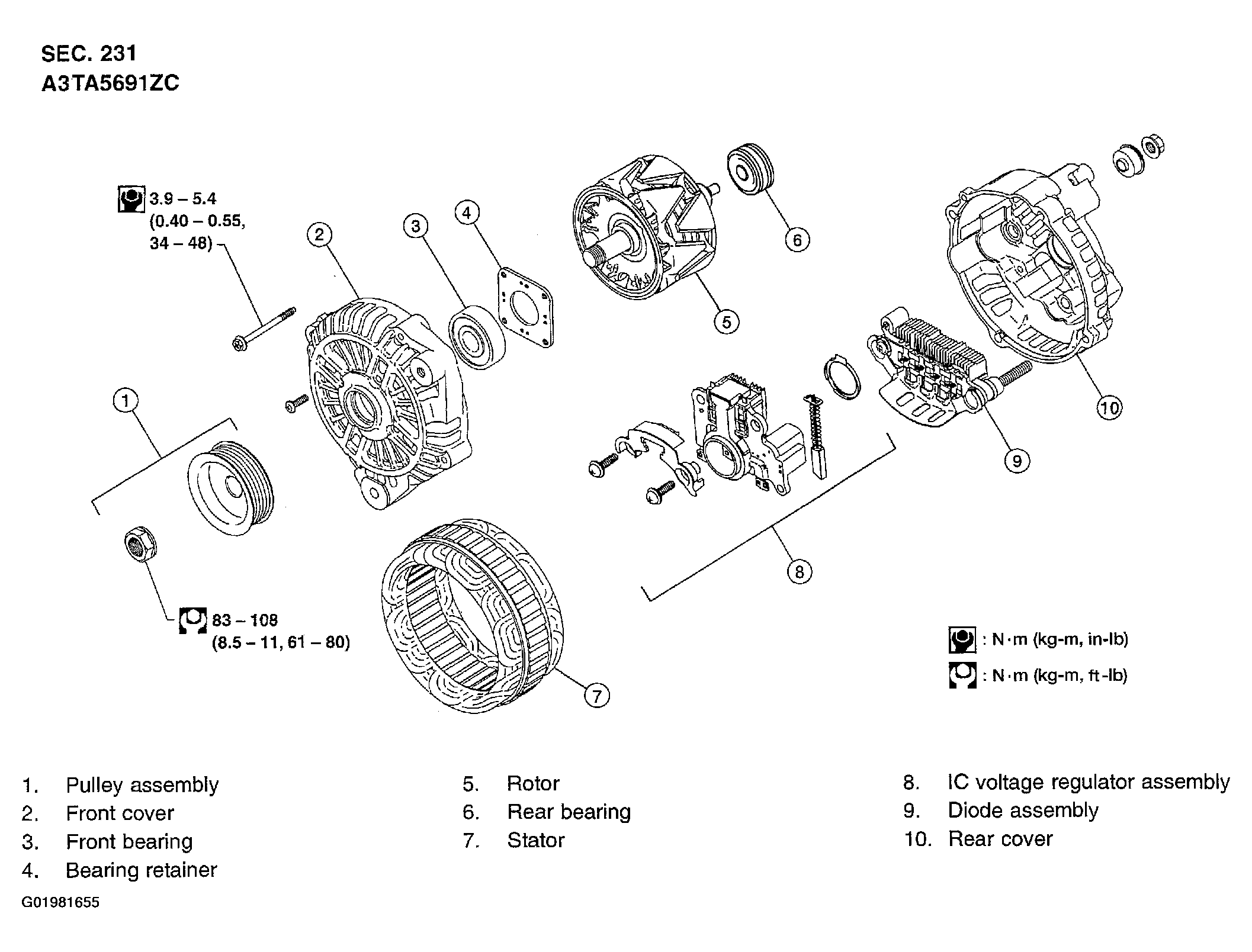

Fig 1: Exploded View Of Generator

G01981655

Courtesy of NISSAN MOTOR CO., U.S.A.
