Door Switch Test

NOTE: For wiring diagrams, see WIRING DIAGRAMS  .

For door switch test, see Fig 1 and Fig 2 .

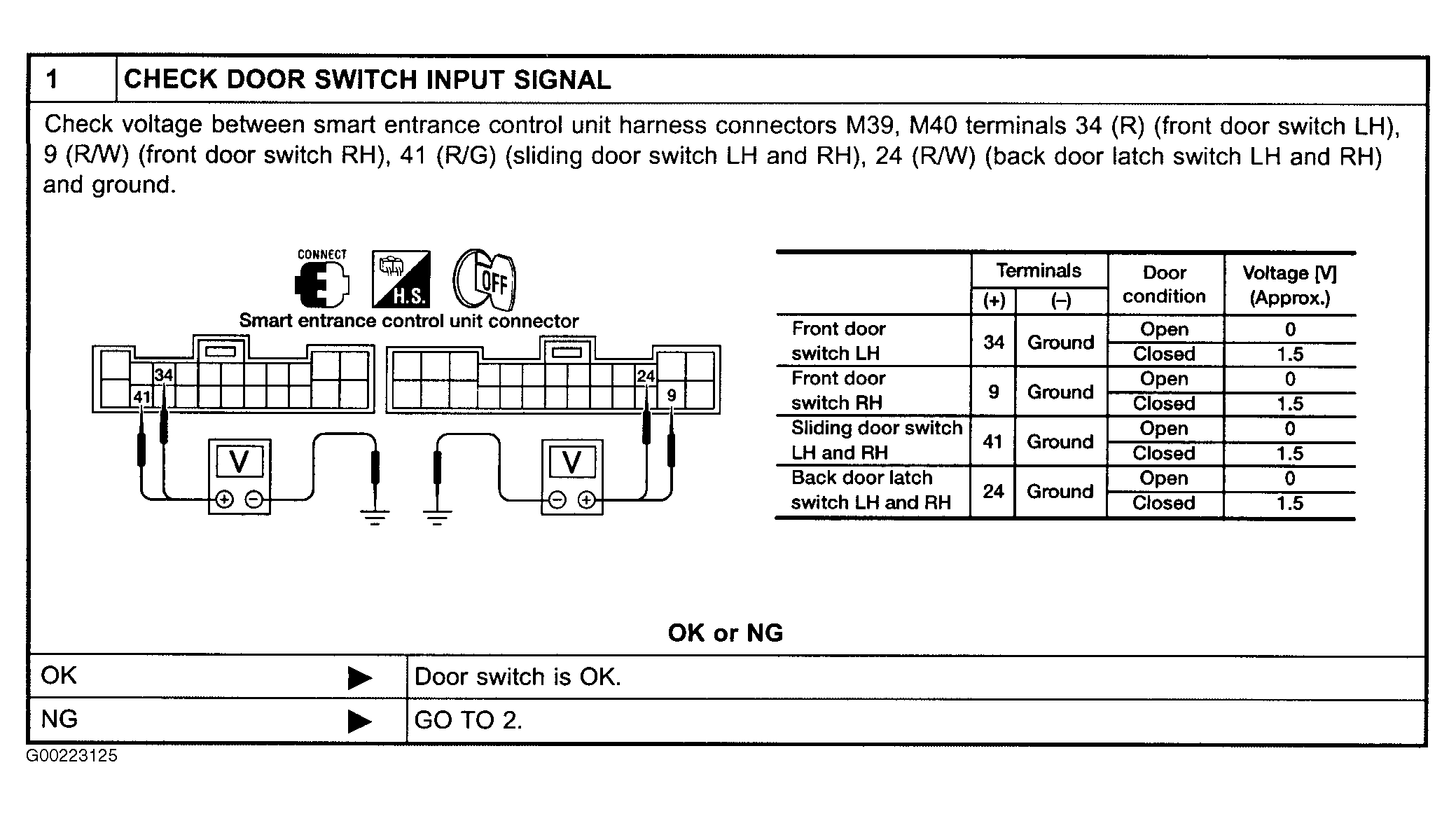

Fig 1: Identifying Door Switch Test, Step 1
G00223125Courtesy of NISSAN MOTOR CO., U.S.A.

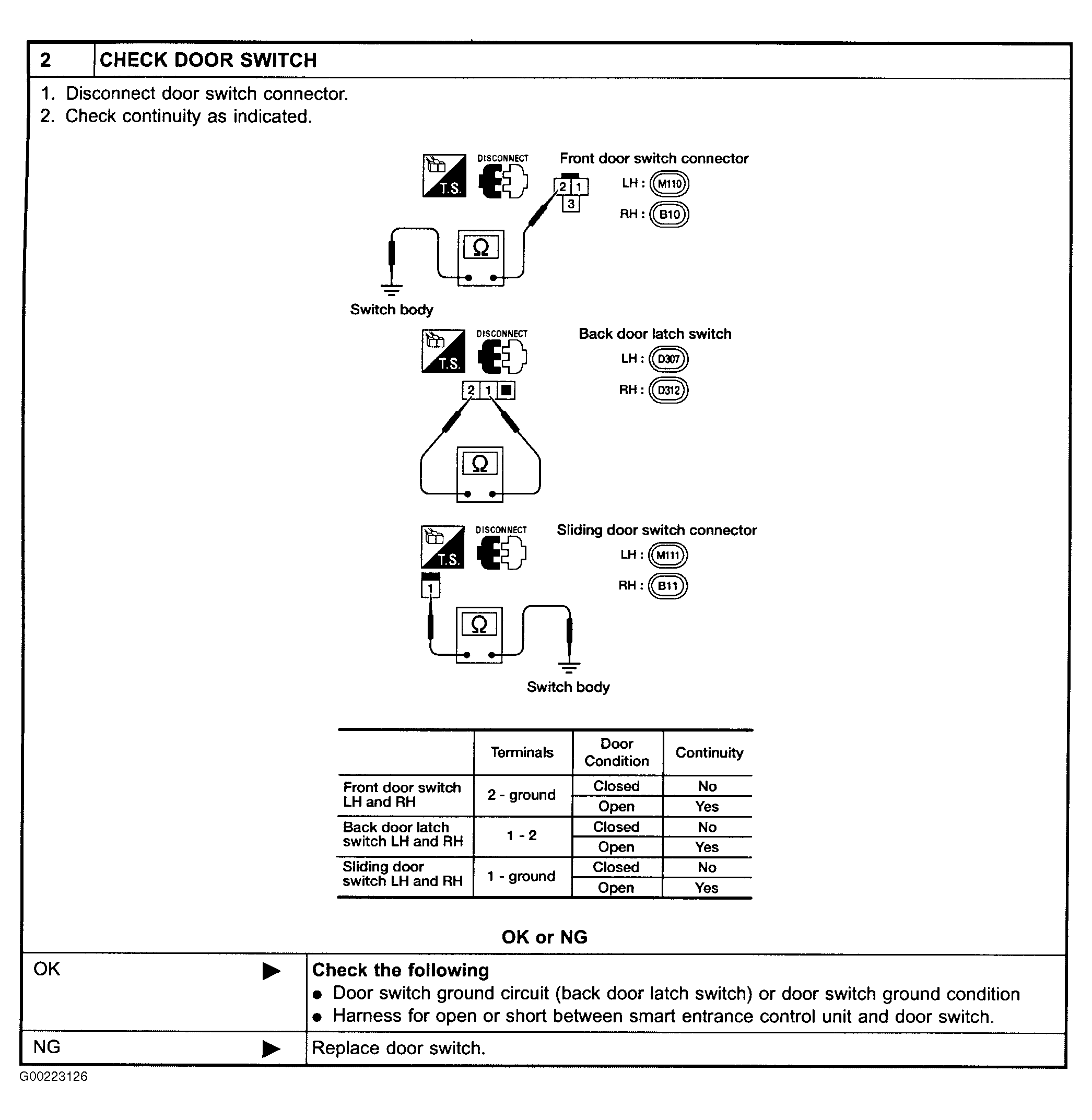

Fig 2: Identifying Door Switch Test, Step 2
G00223126Courtesy of NISSAN MOTOR CO., U.S.A.
