Starting System: Construction

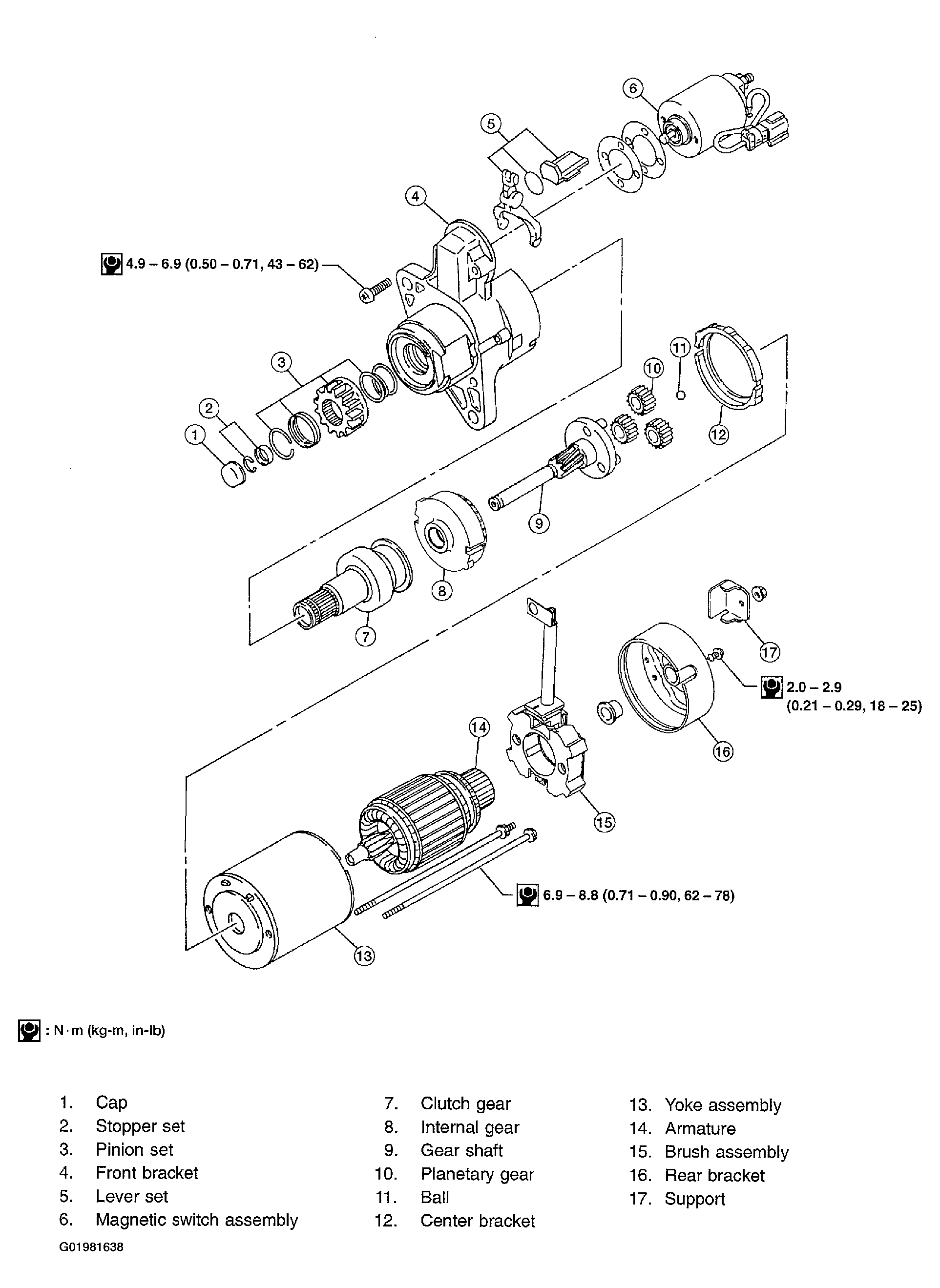

Fig 1: Exploded View Of Starter Motor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
