Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

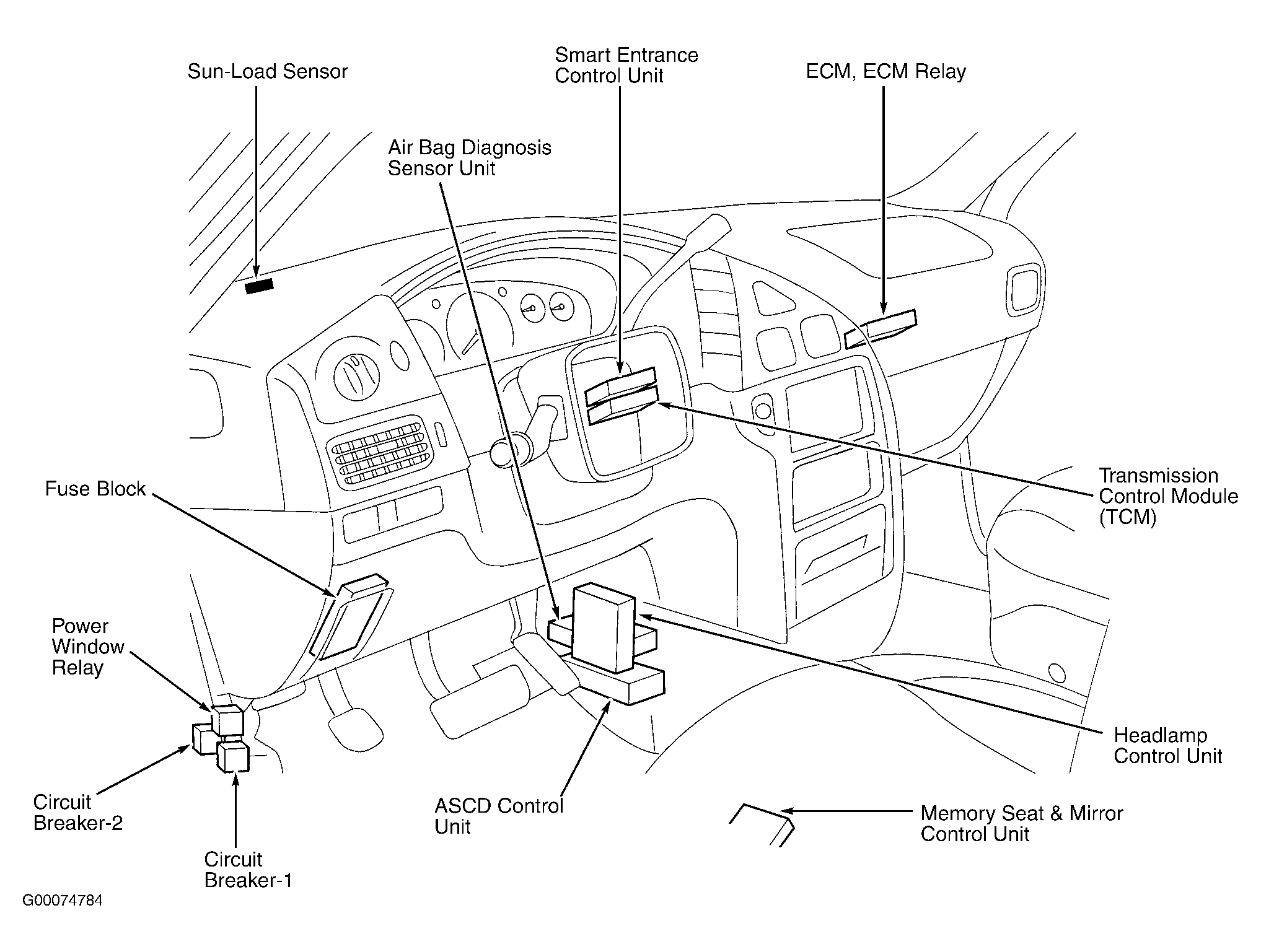

Circuit Breaker-1 Behind left kick panel. See Figure .
Circuit Breaker-2 Behind left kick panel. See Figure .
Fuse Block Behind dash, left of steering column. See Figure .

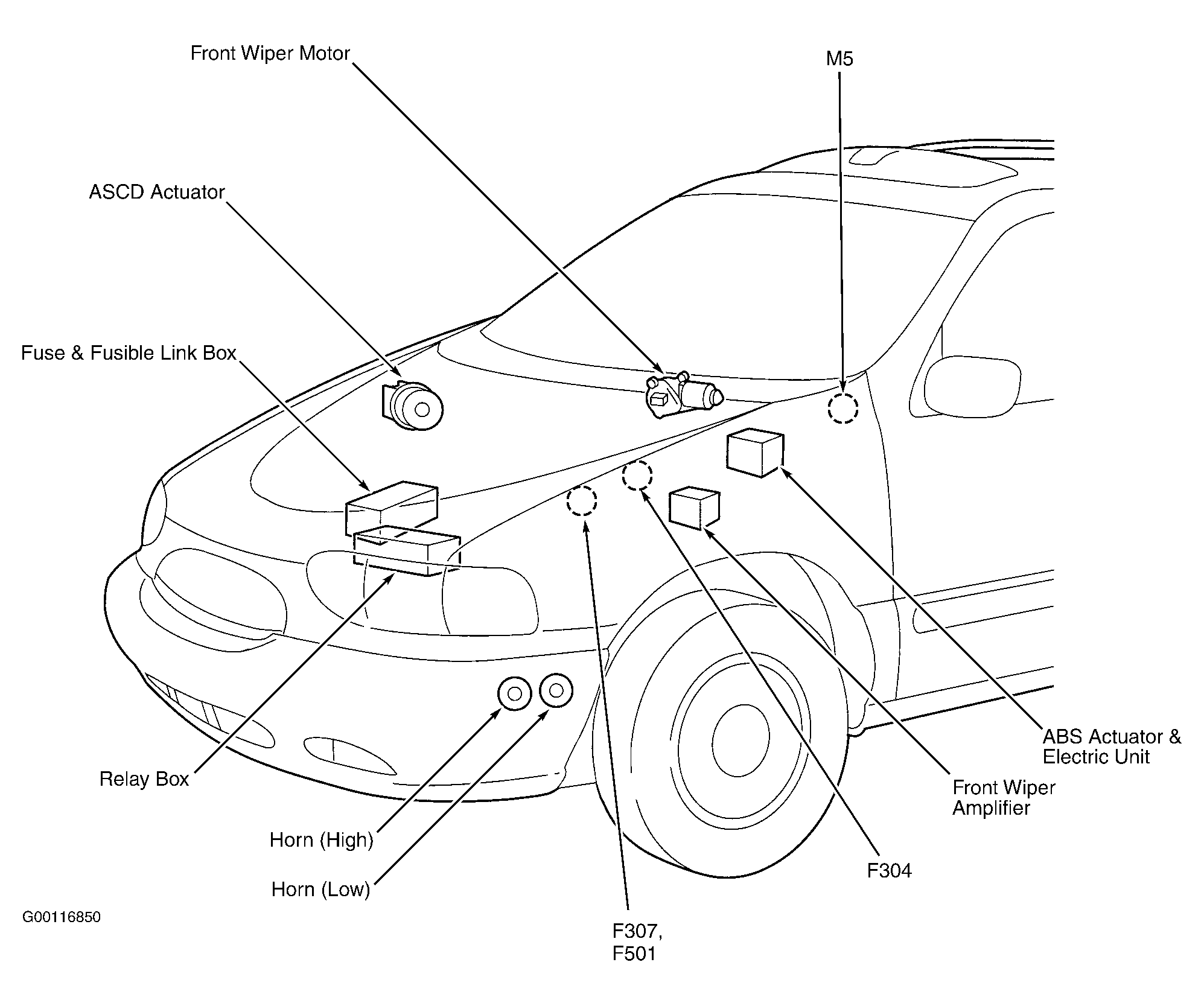

Fuse & Fusible Link Box On left front of engine compartment. See Figure .
Relay Box At left front corner of engine compartment. See Figure .
