Tail Lamp Relay Test

NOTE: For wiring diagrams, see WIRING DIAGRAMS  .

For tail lamp relay test, see Fig 1 -Fig 3 .

Fig 1: Identifying Tail Lamp Relay Test, Step 1
G00223131Courtesy of NISSAN MOTOR CO., U.S.A.

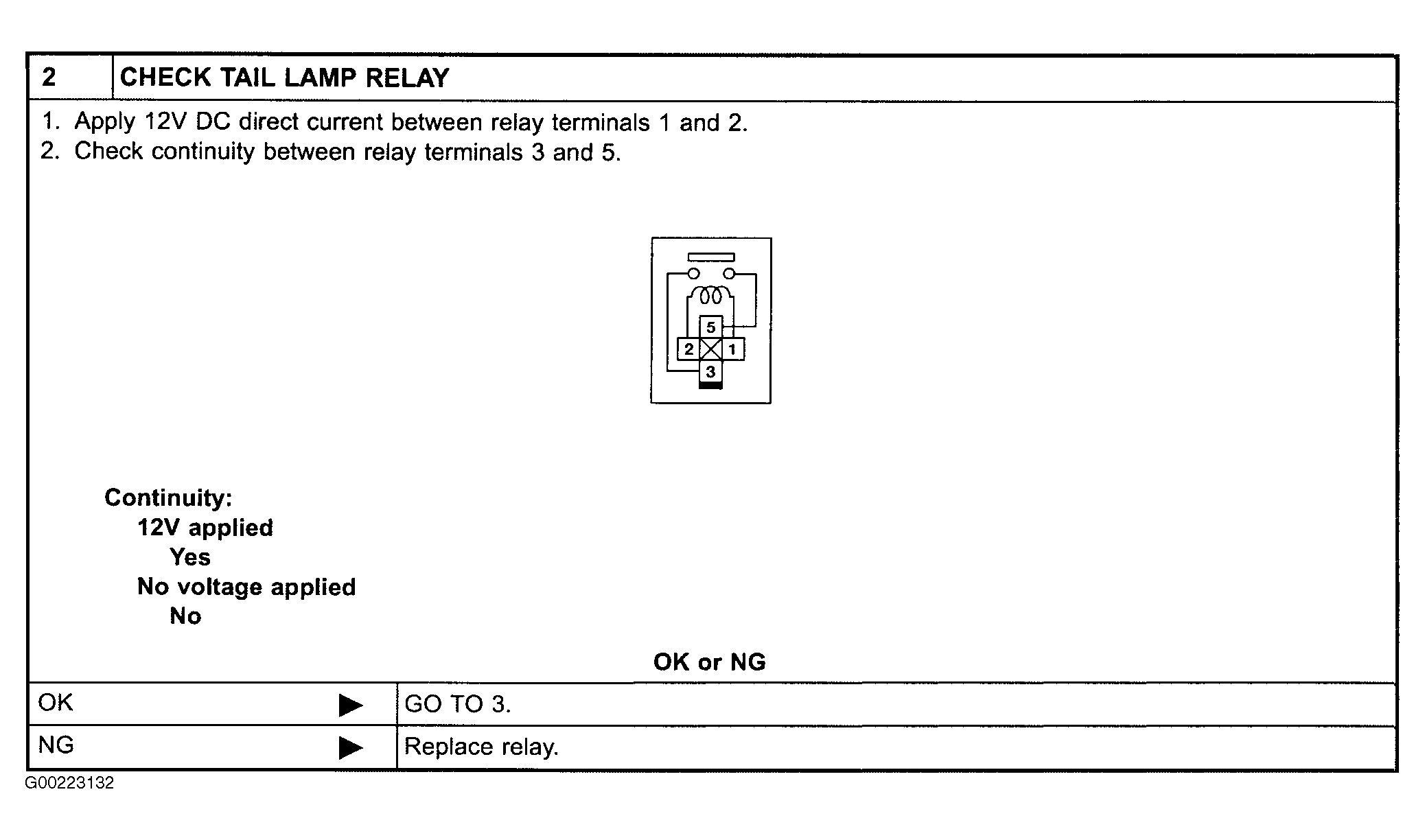

Fig 2: Identifying Tail Lamp Relay Test, Step 2
G00223132Courtesy of NISSAN MOTOR CO., U.S.A.

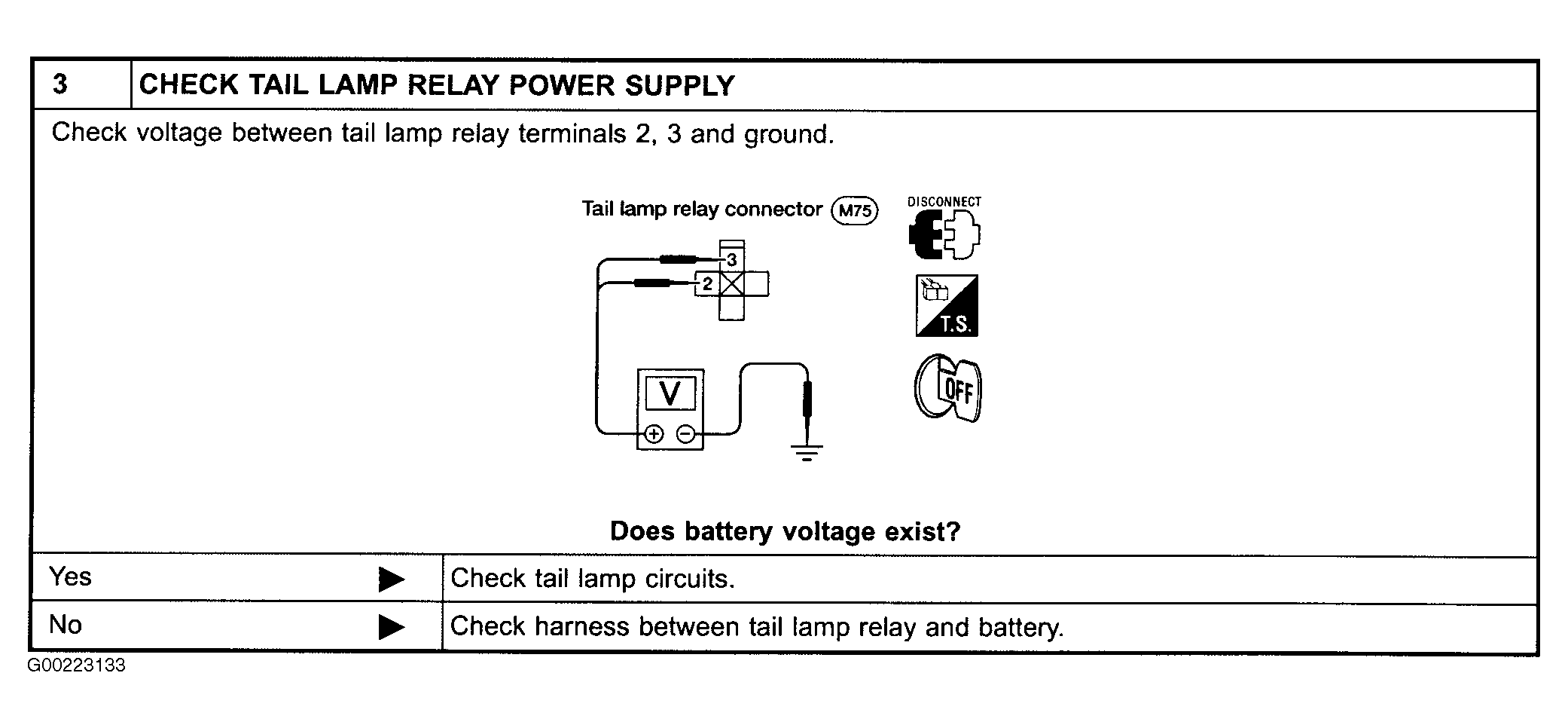

Fig 3: Identifying Tail Lamp Relay Test, Step 2
G00223133Courtesy of NISSAN MOTOR CO., U.S.A.
