Pin Voltage Test

WARNING: This page is about a different car, the 2003 Nissan Maxima and 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For Smart Entrance Control Unit (SECU) PIN voltage tests, see SMART ENTRANCE CONTROL UNIT article.

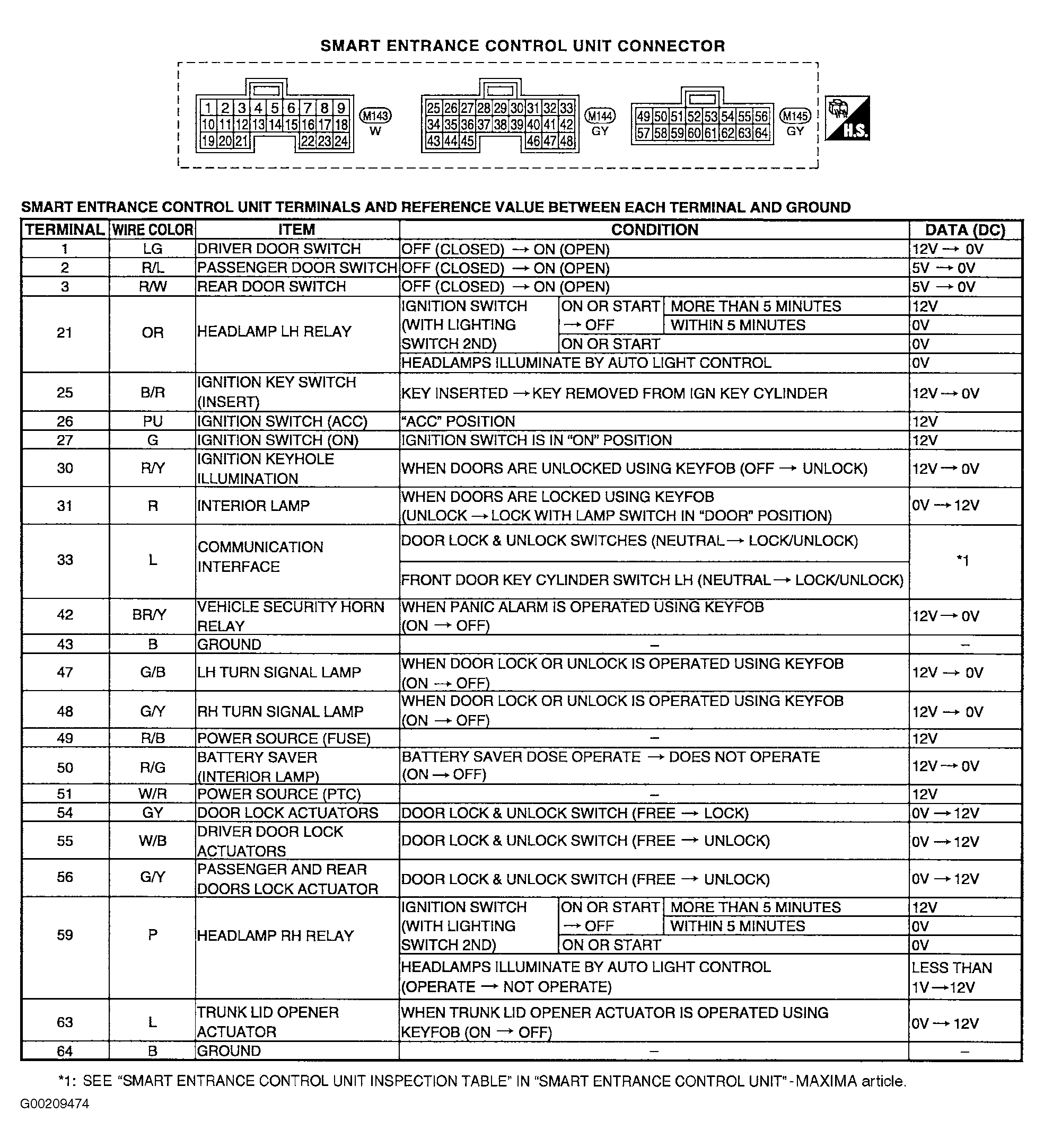

Fig 1: Identifying Smart Entrance Control Unit Connectors, Terminals & Reference Voltages (2002 Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

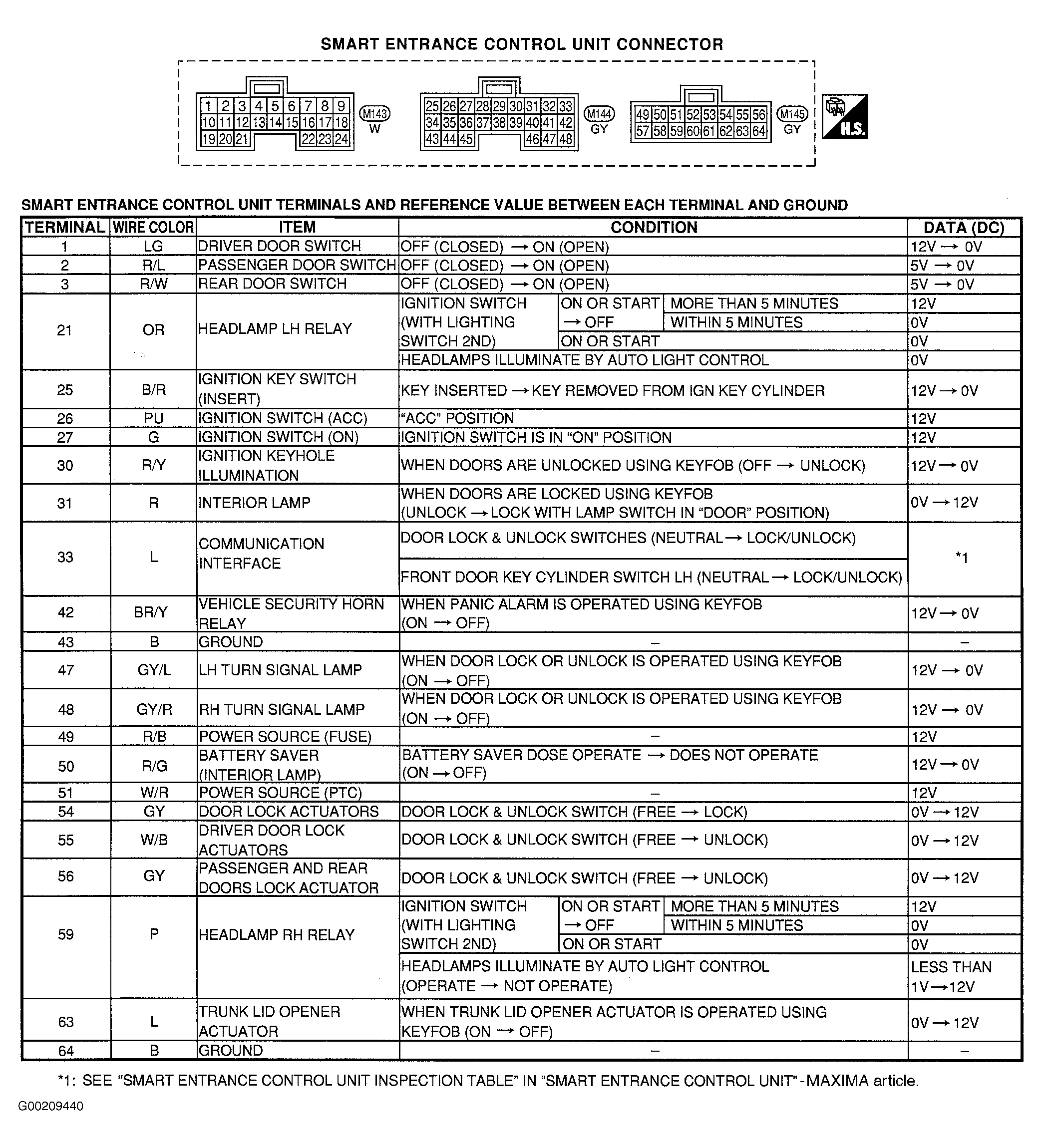

Fig 2: Identifying Smart Entrance Control Unit Connectors, Terminals & Reference Voltages (2003 Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
