Nissan-Datsun
>>
2002
>>
Maxima GLE
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Power Steering Oil Pump
>>
Components
Power Steering Oil Pump: Components

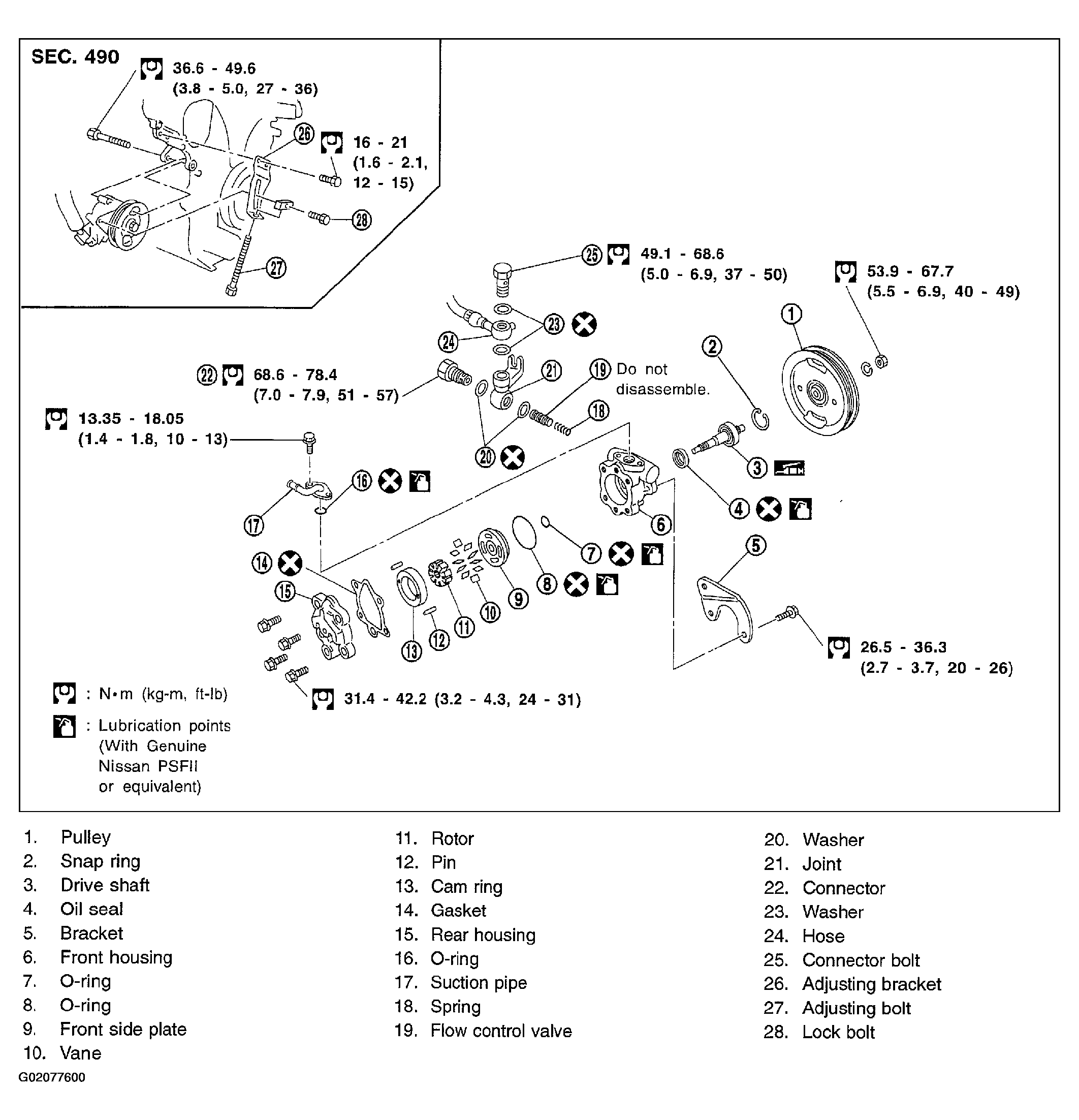

Fig 1: Exploded View Of Power Steering Oil Pump & Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
