Diagnostic Procedure 14 (Memory Indicator Check)

For diagnostic procedure 14 (memory indicator check), see Fig 1 and Fig 2 .

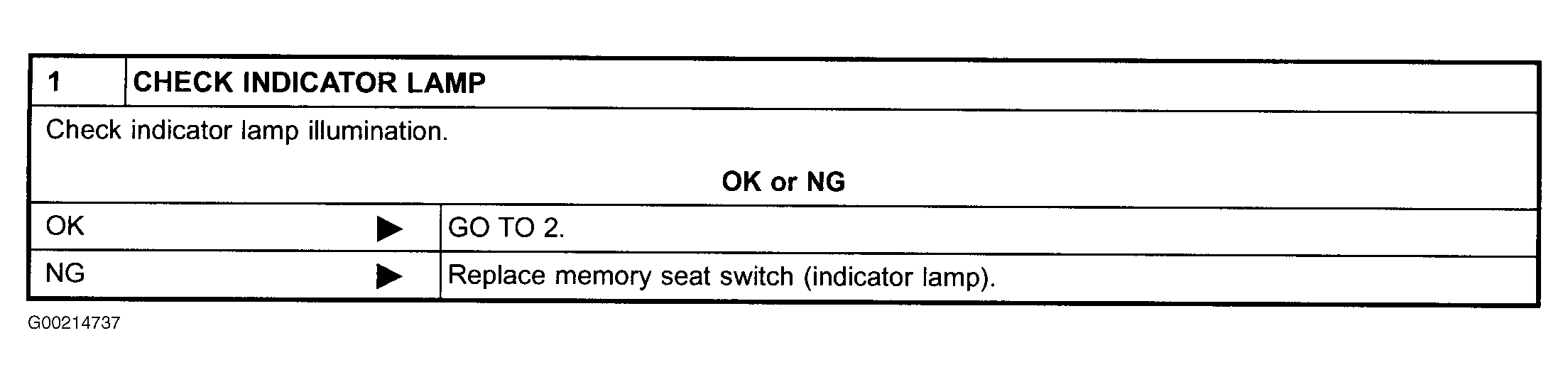

Fig 1: Identifying Diagnostic Procedure 14 (Memory Indicator Check), Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

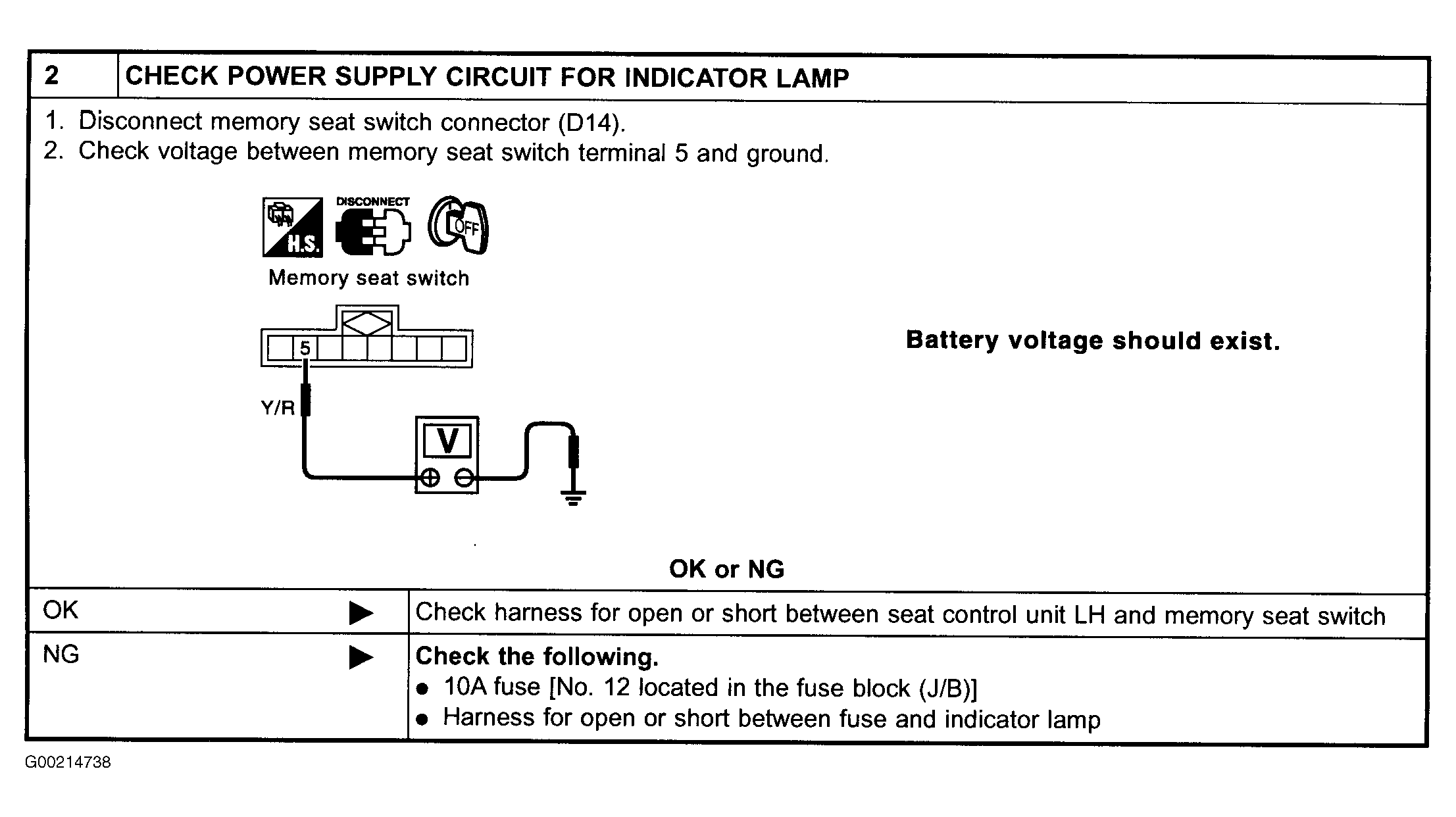

Fig 2: Identifying Diagnostic Procedure 14 (Memory Indicator Check), Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
