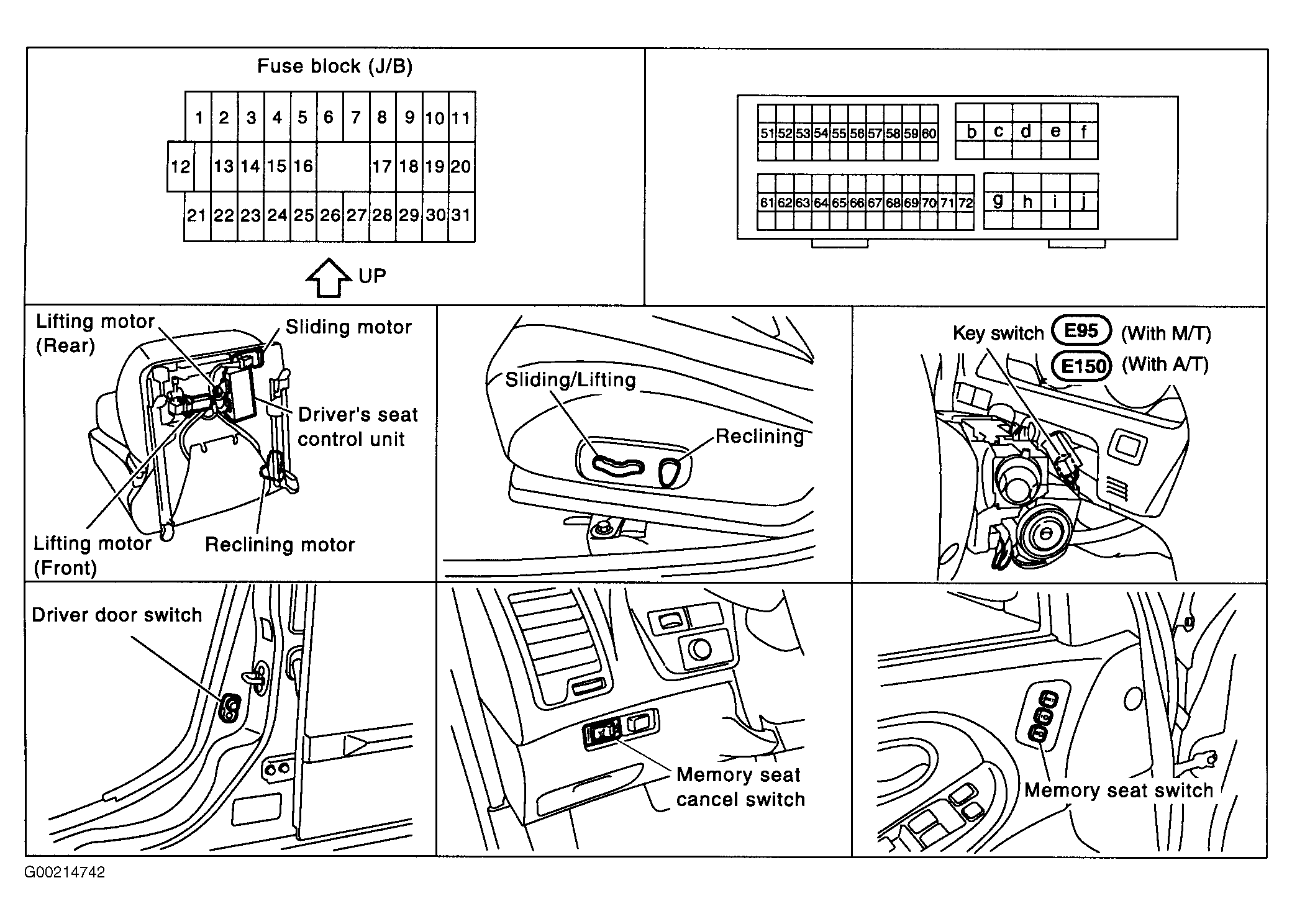

Component Locations
COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Driver's Door Switch | On Door Post, Under Door Striker | ||
| Fuse Block (J/B) | Behind Left Side Of Dash | ||
| Fusible Link & Fuse Block | Under Hood, In Front Of Strut Pillar | ||
| Key Switch | On Steering Column, Under Steering Column Covers | ||
| Memory Seat Cancel Switch | On Left Side Of Dash, Below Blower Vent | ||
| Memory Seat Switch | On Left Door Panel | ||
| Power Seat Control Levers | On Left Side Of Power Seat | ||
| Power Seat Motors | On Bottom Of Drivers Seat | ||
|
|||
