Key Hole Illumination Operation Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For key hole illumination operation check, see Fig 1 .

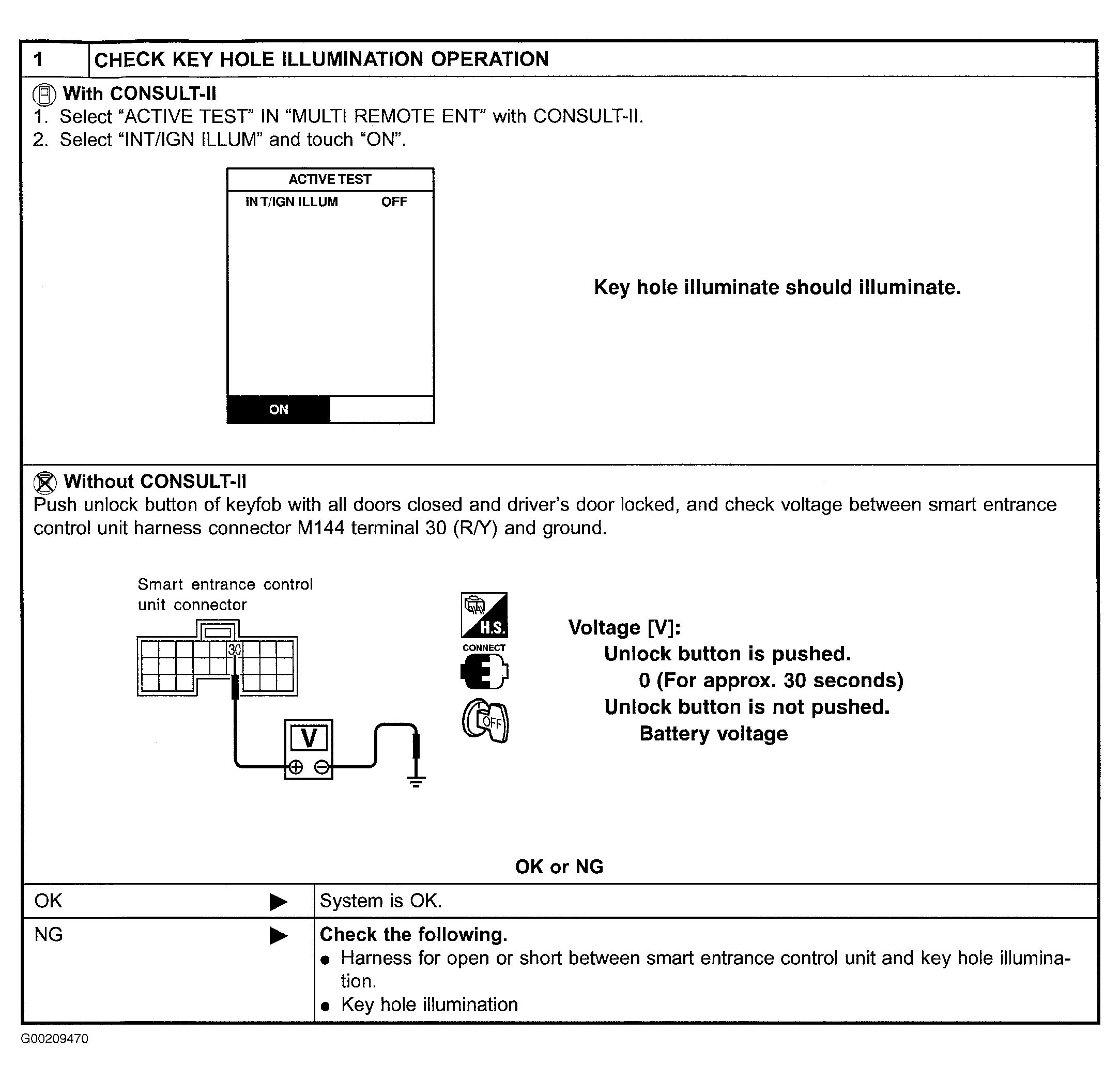

Fig 1: Identifying Key Hole Illumination Operation Check

G00209470

Courtesy of NISSAN MOTOR CO., U.S.A.
