Description & Operation: Input/Output
For input/output, see
Fig 1
.

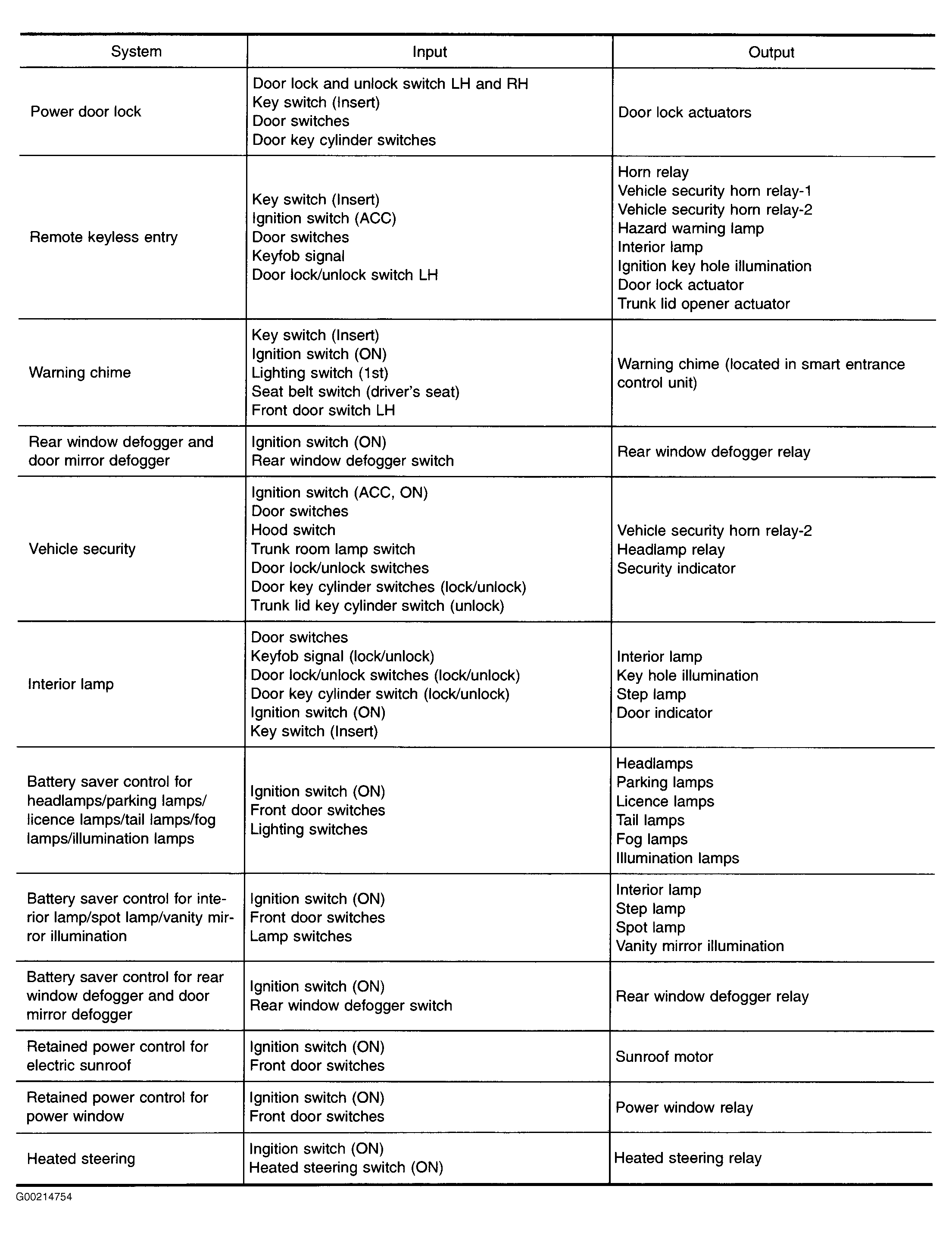

Fig 1: Identifying Inputs & Outputs
Courtesy of NISSAN MOTOR CO., U.S.A.
