Home >> Nissan-Datsun >> 2002 >> Frontier Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> Clutch Release Mechanism >> Components

Clutch Release Mechanism: Components

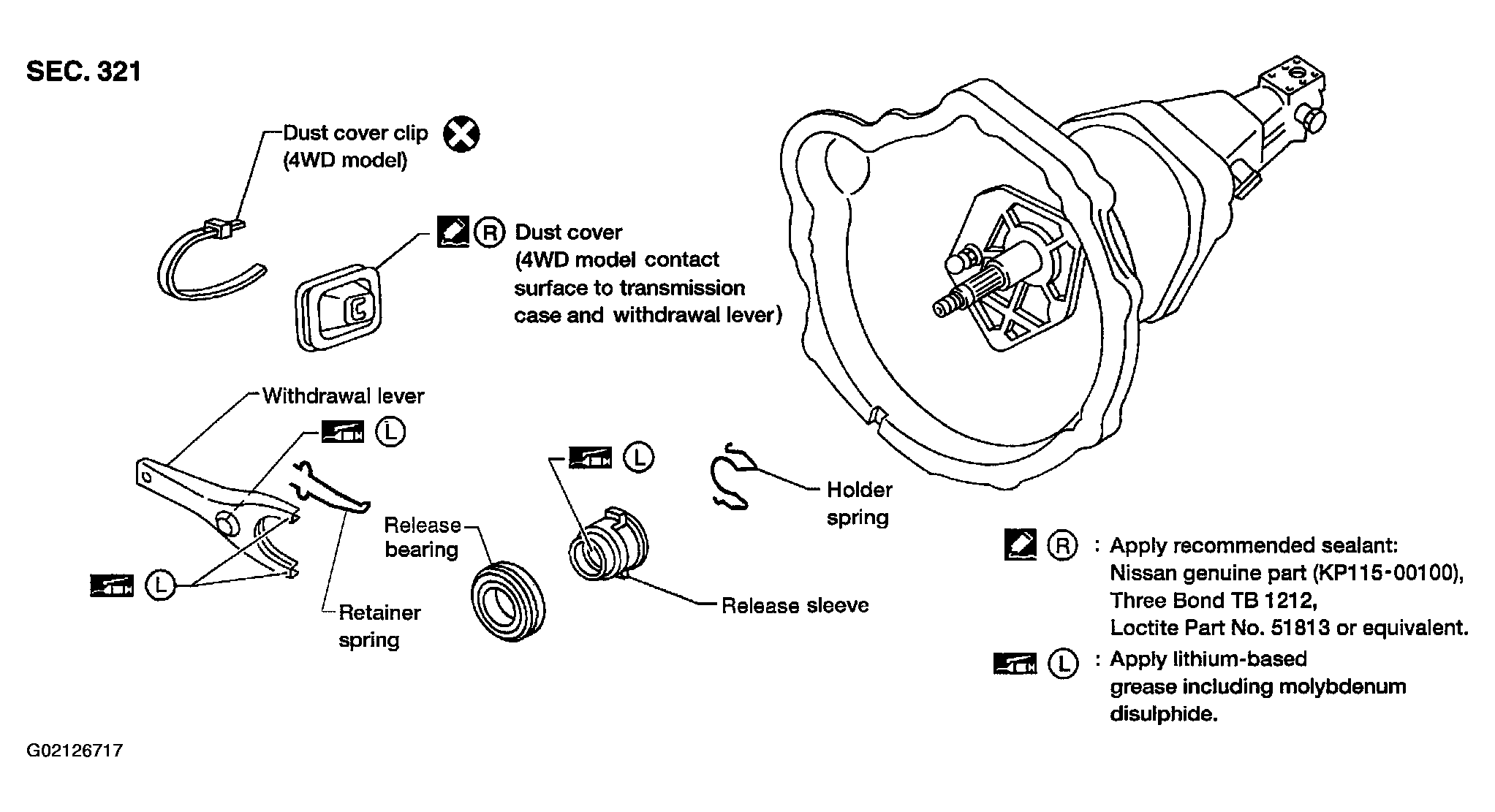

Fig 1: Exploded View Of Clutch Release Mechanism Components

G02126717

Courtesy of NISSAN MOTOR CO., U.S.A.
