Power Steering

The actual shape of Kent-Moore tools may differ from those of special service tools illustrated in Fig 1 and Fig 2.

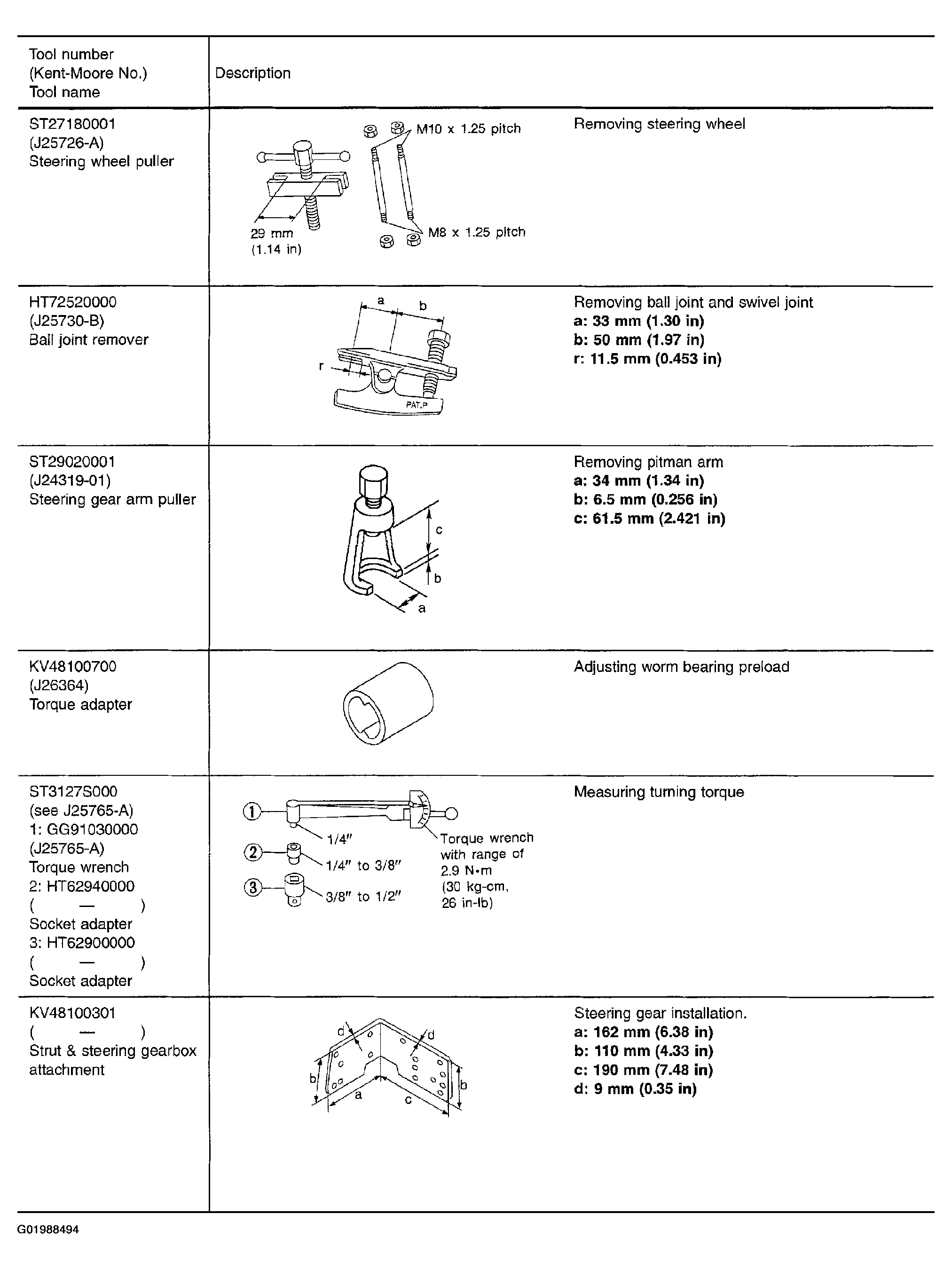

Fig 1: Power Steering Special Service Tools Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

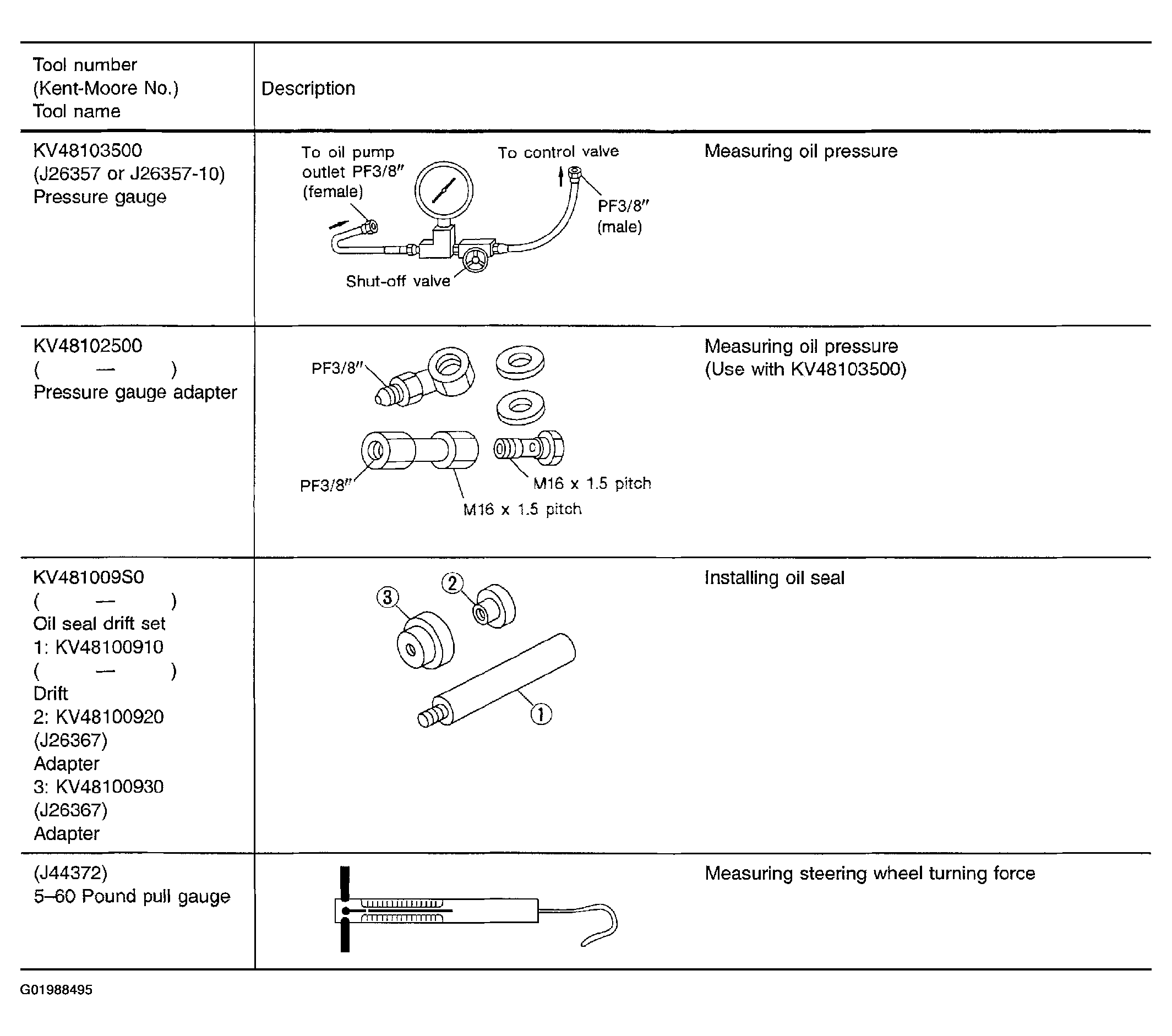

Fig 2: Power Steering Special Service Tools Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
