Front Suspension System: Description

Front suspension is an independent torsion bar-type. Suspension consists of torsion bar, upper and lower control arm, upper and lower ball joint, steering knuckle, tie rod, shock absorber and stabilizer bar. See Fig 1 and Fig 2 .

Steering knuckle is connected to control arm by upper and lower ball joints. Ball joints are sealed and do not require lubrication. Steering knuckle movement is controlled by tie rods and steering linkage.

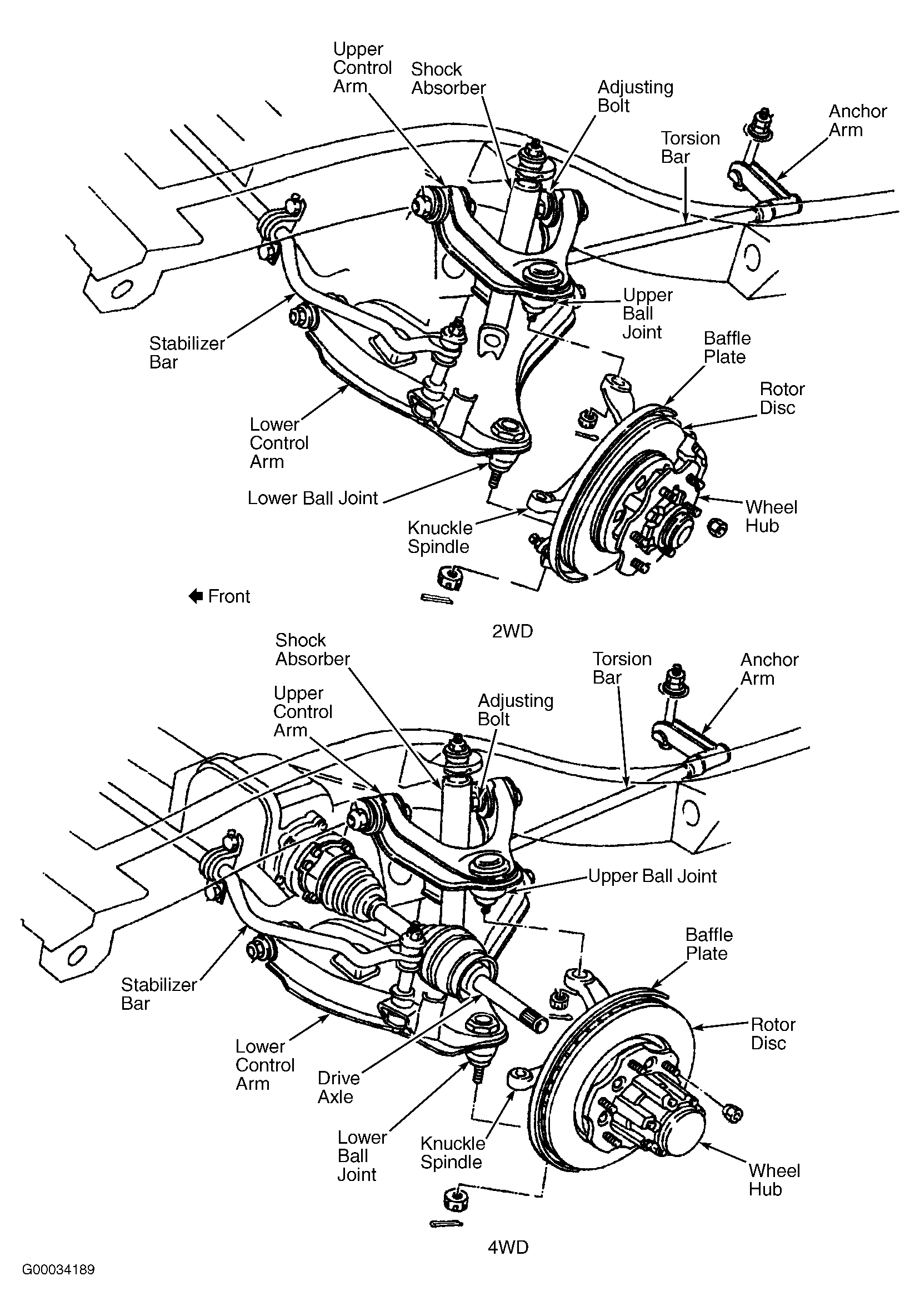

Fig 1: Identifying Front Suspension Components (2.4L)

Courtesy of NISSAN MOTOR CO., U.S.A.

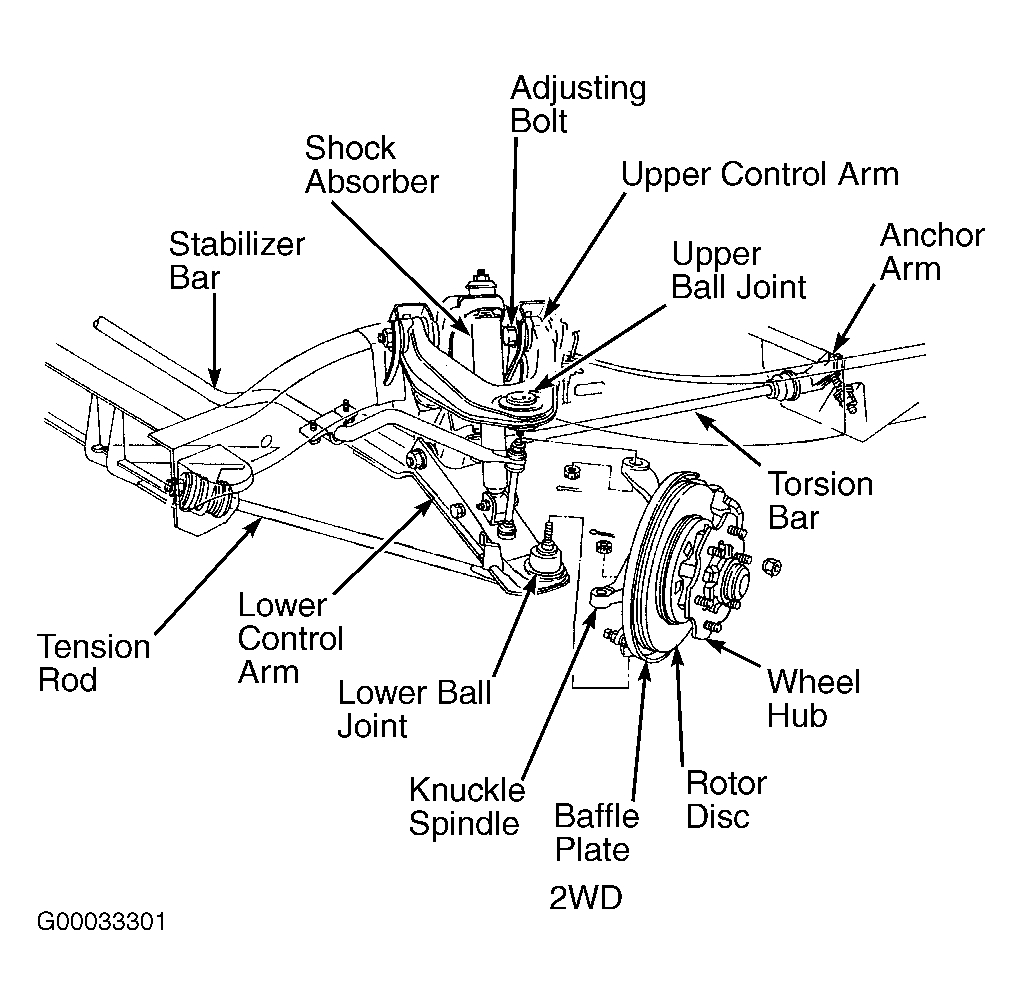

Fig 2: Identifying Front Suspension Components (3.3L)

Courtesy of NISSAN MOTOR CO., U.S.A.
